Clutch Pedal Assembly: Service and Repair

35 31 000 Removing and installing/replacing clutch pedal

Remove trim panel for pedal assembly.

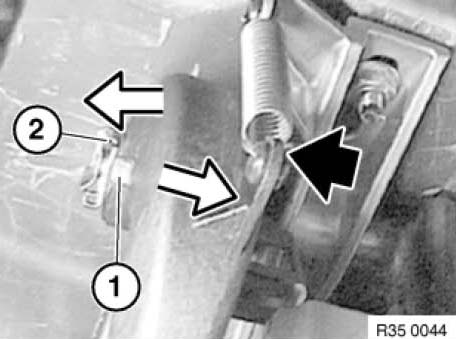

Disconnect return spring.
Press bolt ends (1) together and remove bolt.
Remove retainer (2) and detach clutch pedal from bearing pedestal.

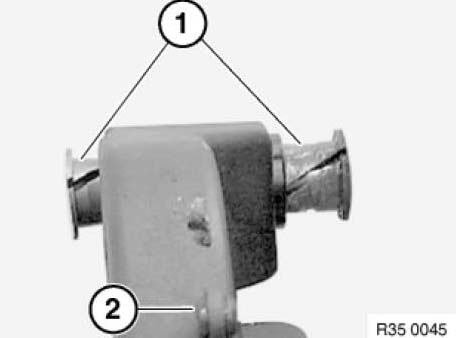

Installation: Check bearing bushes (1) and replace if necessary.
Lightly grease bearing bushes (1), BMW Service Operating Fluids.
Replace rubber grommet (2) if necessary.
