Clutch Slave Cylinder: Service and Repair

21 52 510 Removing And Installing Or Replacing Clutch Operating Cylinder

Note: After completing work, bleed clutch hydraulics, refer to 21 00 006.

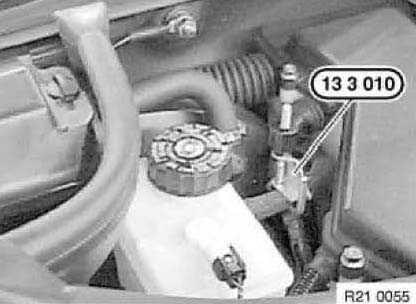

Close off supply hose to clutch-sensor cylinder with special tool 13 3 010.

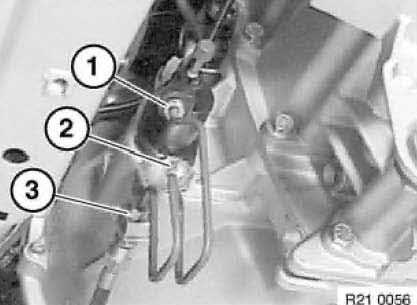

Remove transmission underbody protection if necessary. Release union screw (1) on hydraulic line. Release nut (2) and remove hydraulic line (3) with bracket.

Installation:
Tightening Torque: 17 Nm.

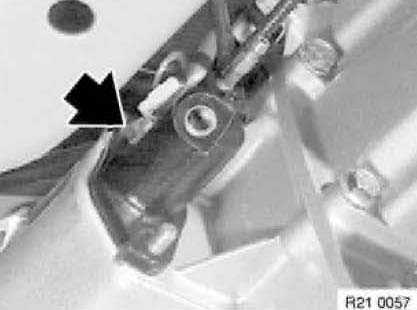

Release nut and remove clutch slave cylinder.

Installation:
Tightening Torque: 22 Nm.

Installation:

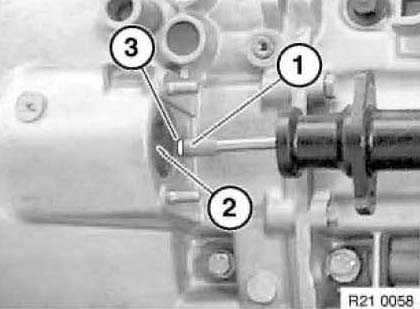

Clean thrust member (1) and contact face on release lever (2). Lightly grease thrust member (1) at contact face (3).
