Sleeve Steering Spindle (Assembly Partition Wall)

Sleeve Steering Spindle (Assembly Partition Wall)

Remove lower section of steering spindle.
Pull sleeve out of assembly partition wall.





Installation:

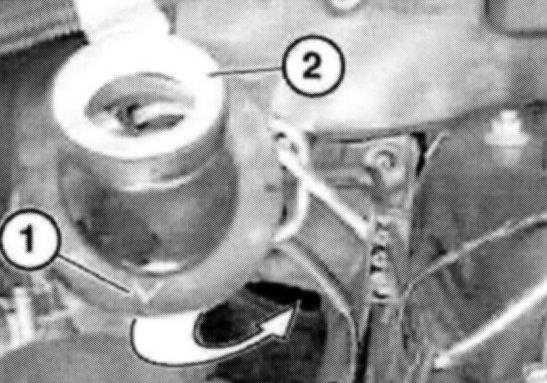

1. Attach new sleeve with arrow (1) facing down into assembly partition wall.
2. Insert plastic ring (2) in sleeve.
