Sleeve For Lower Section of Steering Spindle (Bulkhead)

Sleeve For Lower Section of Steering Spindle (Bulkhead)

Remove lower section of steering spindle.

Pull sleeve out of bulkhead.





Installation:
Left-hand drive models:

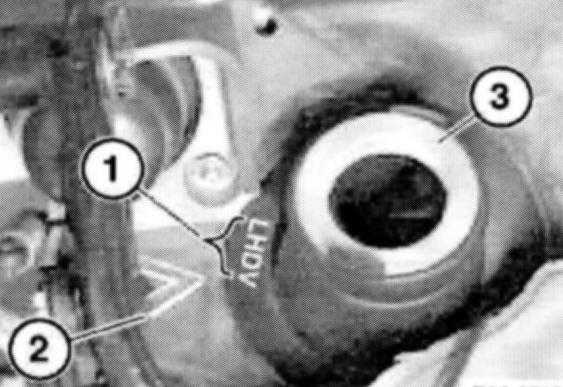

Arrow with LHD lettering (1) on sleeve must be aligned with arrow (2) in bulkhead.
Right-hand drive models:
Arrow with RHD lettering (1) on sleeve must be aligned with arrow (2) in bulkhead.
Attach new sleeve to bulkhead.
Insert plastic ring (3) in sleeve.
