Power Steering Fluid Cooler: Service and Repair

Removing and installing/replacing cooling loop for power steering

Caution:
Make sure all parts are absolutely clean.
No dirt is allowed to enter the system.
After installation, bleed power steering.

Recycling:
Draw off power steering fluid from supply tank - do not reuse fluid.
Observe country-specific waste-disposal regulations.

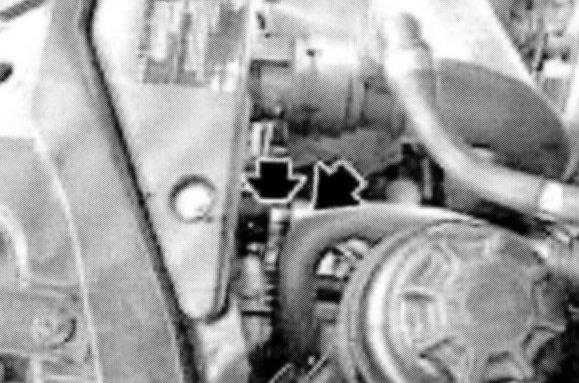

Disconnect quick-release couplings on hydraulic lines.
Remove radiator.
Remove cooling coil.
