Replacing Positive Lead - Starter to Jump Start Terminal

Removing And Installing/Replacing Between Battery Positive Lead Between Starter Motor And Jump Start Terminal (M54)

Interrogate fault memory of DME control unit.
Switch off ignition.

Observe instructions for disconnecting and connecting battery.
Disconnect negative battery lead.

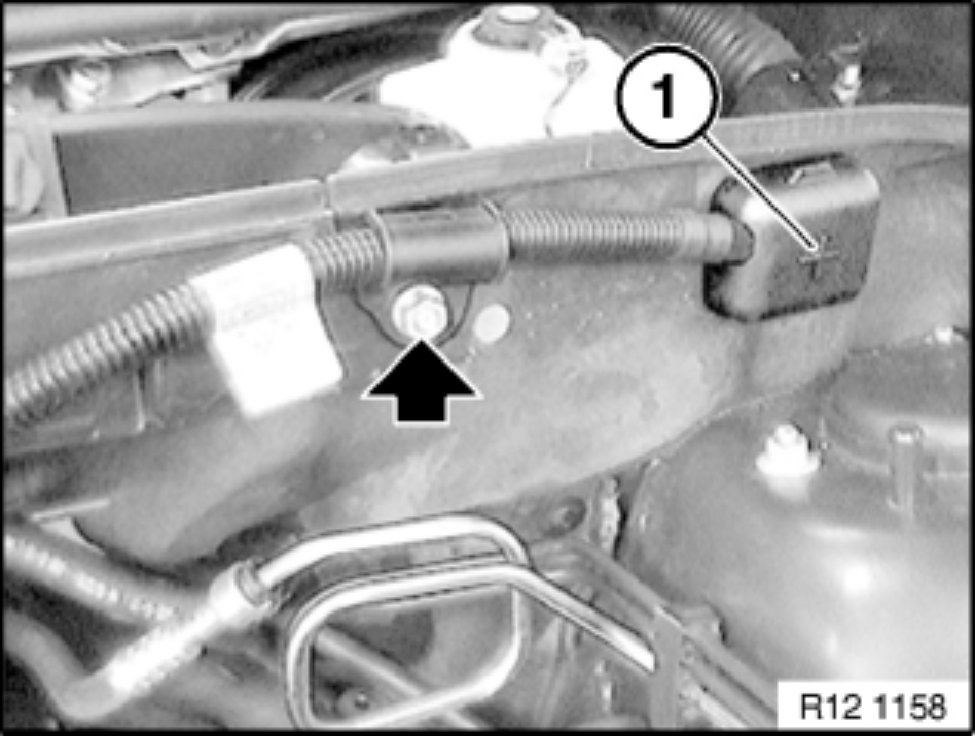

Release nut.
Fold down protective cap (1).
Release nut.
Tightening torque.
4AZ Battery positive connection point in engine compartment
M54
M8 21 Nm

Remove battery positive lead from positive support point for jump starting.

Remove cover from fuel injectors.

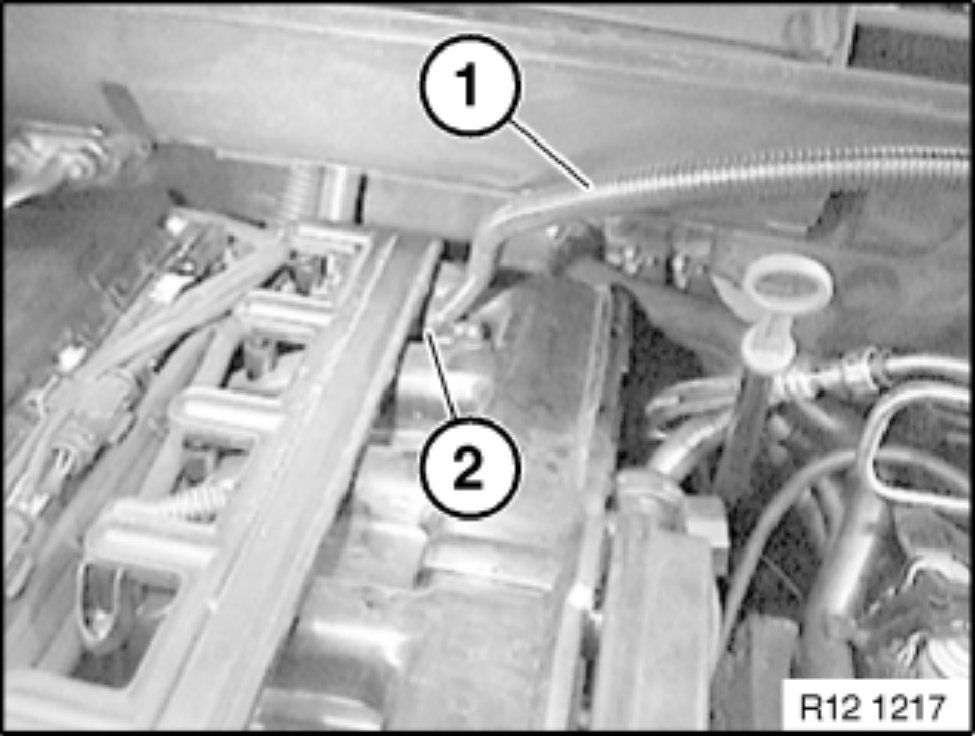

Unclip battery positive lead (1) from holder (2).

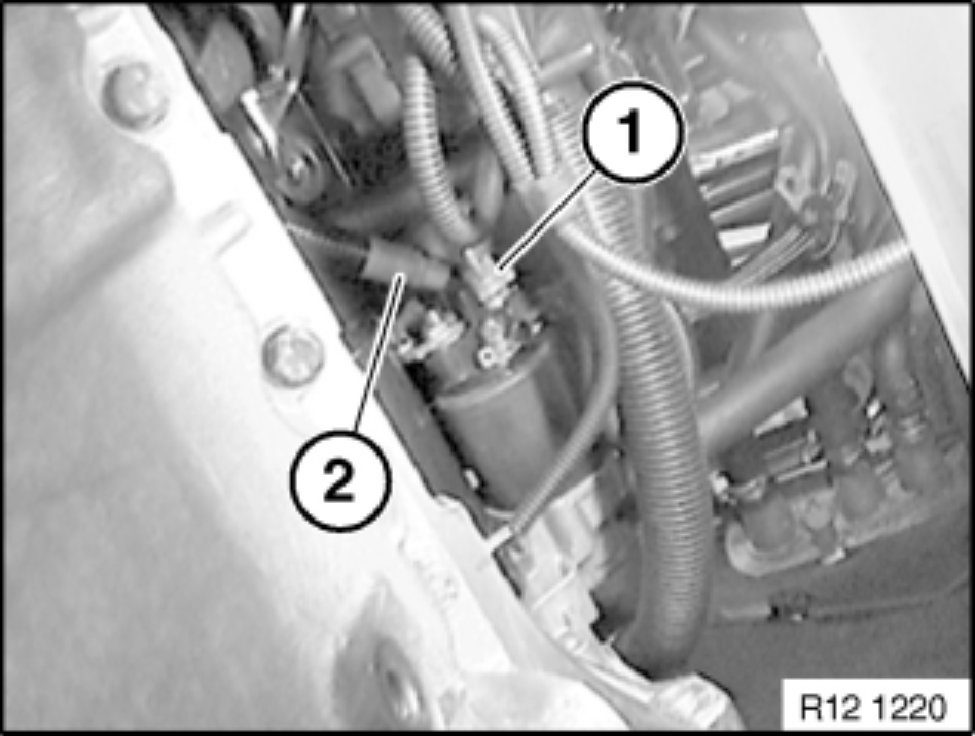

Release nut (2).
Tightening torque.
4AZ Electrical leads to starter
M5 5 Nm
M6 7 Nm
M8 13 Nm
Detach battery positive lead (2) from starter motor and remove.

NOTE:
For purposes of clarity, reinforcement plate is now shown.
Do not remove reinforcement plate.
Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Then clear fault memory.
