Replacing Rear Both Seat Belt

Removing And Installing/Replacing Rear Left Or Right Seat Belt

Removing inertia reel unit:
Remove luggage compartment wheel arch trim.







Release belt nut (1).

Installation:
Tightening torque 48 Nm

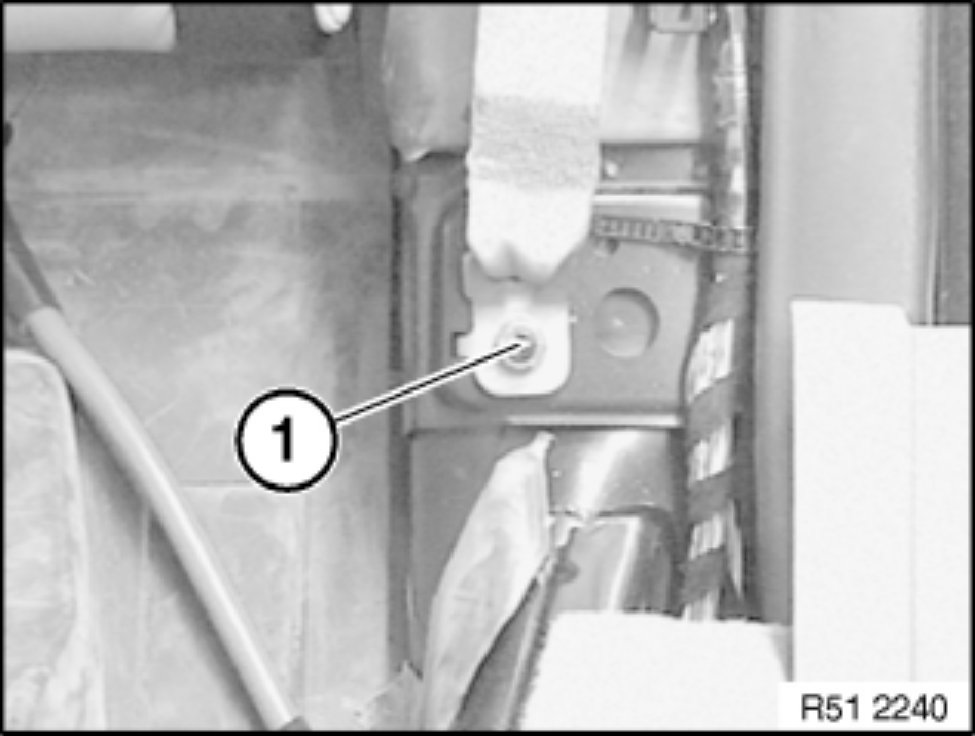

Release screws (1).
Remove belt guide (2).

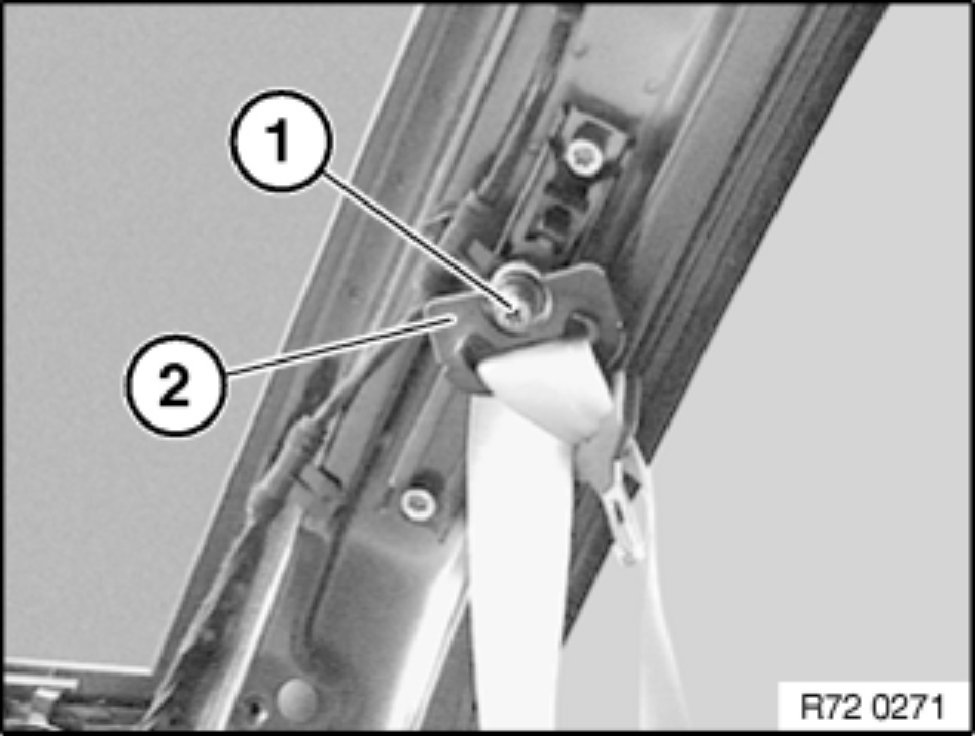

Slacken nut (1).
Remove reversing clip (2) on seatbelt height adjuster.

Installation:
Tightening torque.
6AZ Seat belt at belt height adjustment (reversing clip) 31 Nm







Removal of seatbelt height adjuster only:

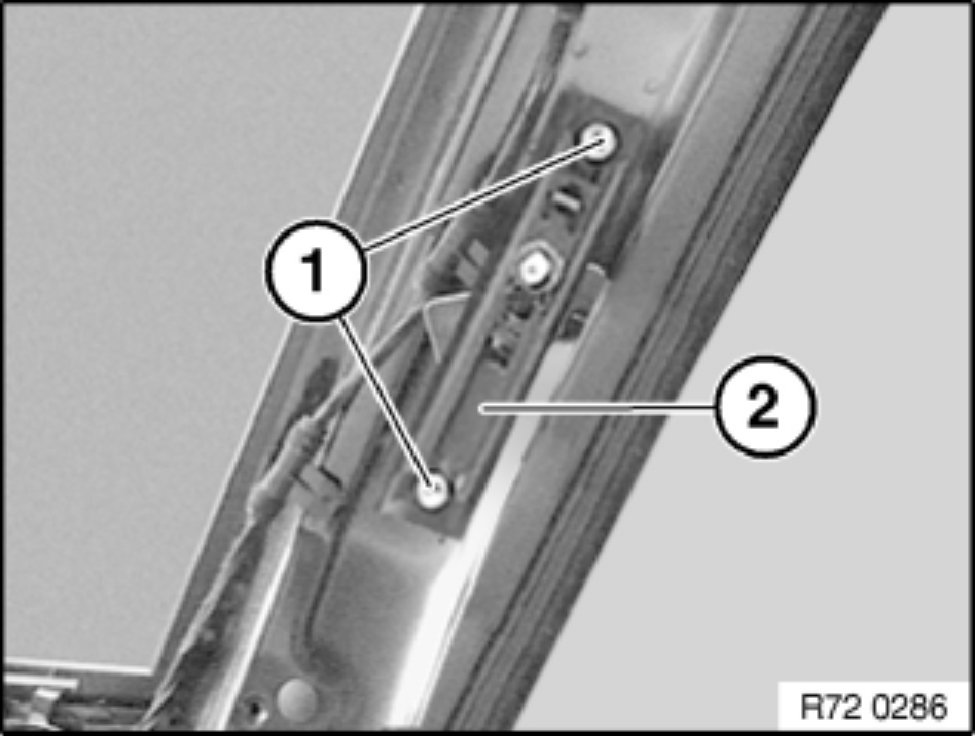

Release screws (1) simultaneously so that seatbelt height adjuster (2) does not tilt.
Remove seatbelt height adjuster (2).

Installation:
Tightening torque.
12AZ Screw of seatbelt height adjuster to counter-support plate
E53 31 Nm







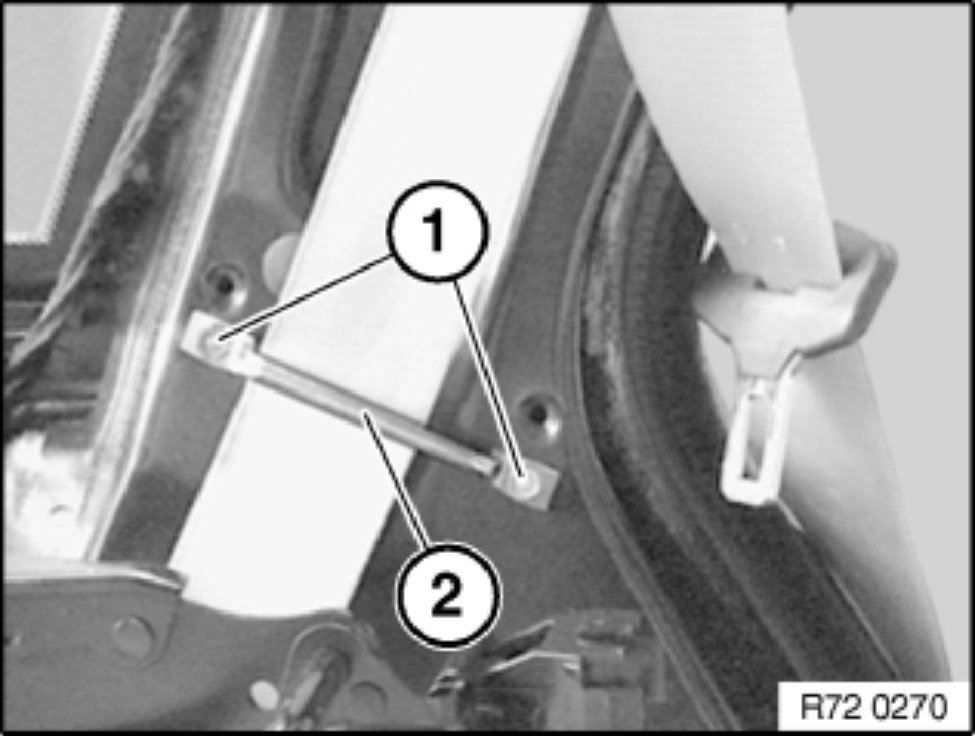

Release screw (1).

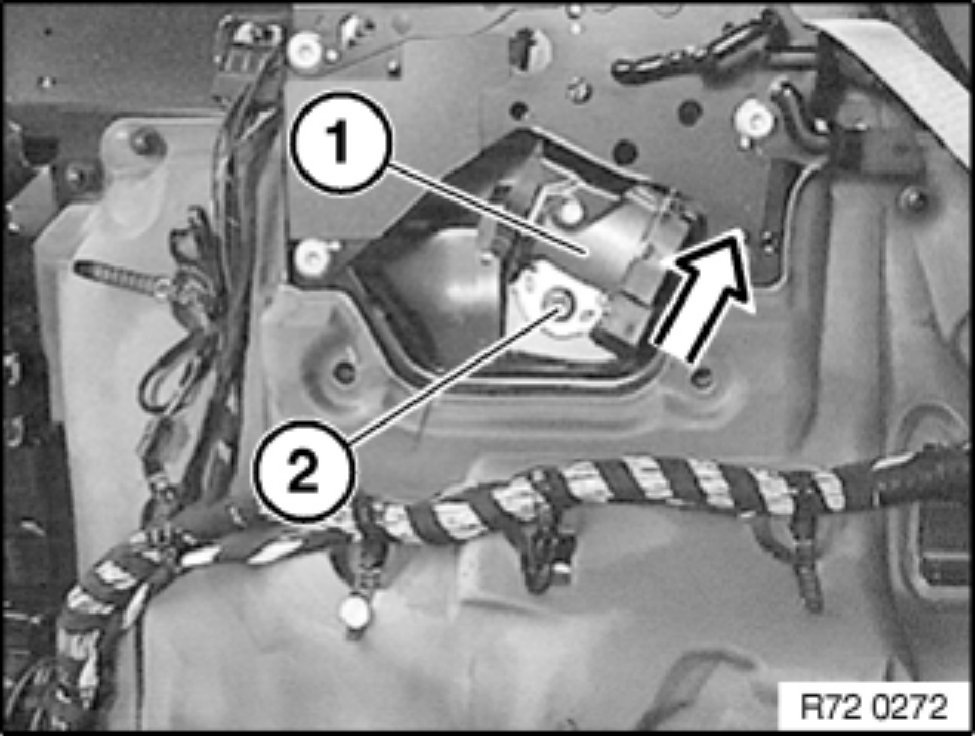

Slide inertia reel unit (2) upwards at an angle and release from wheel arch wall.

Installation:
Tightening torque.
14AZ Inertial reel unit to body / B-pillar 31 Nm

Installation:

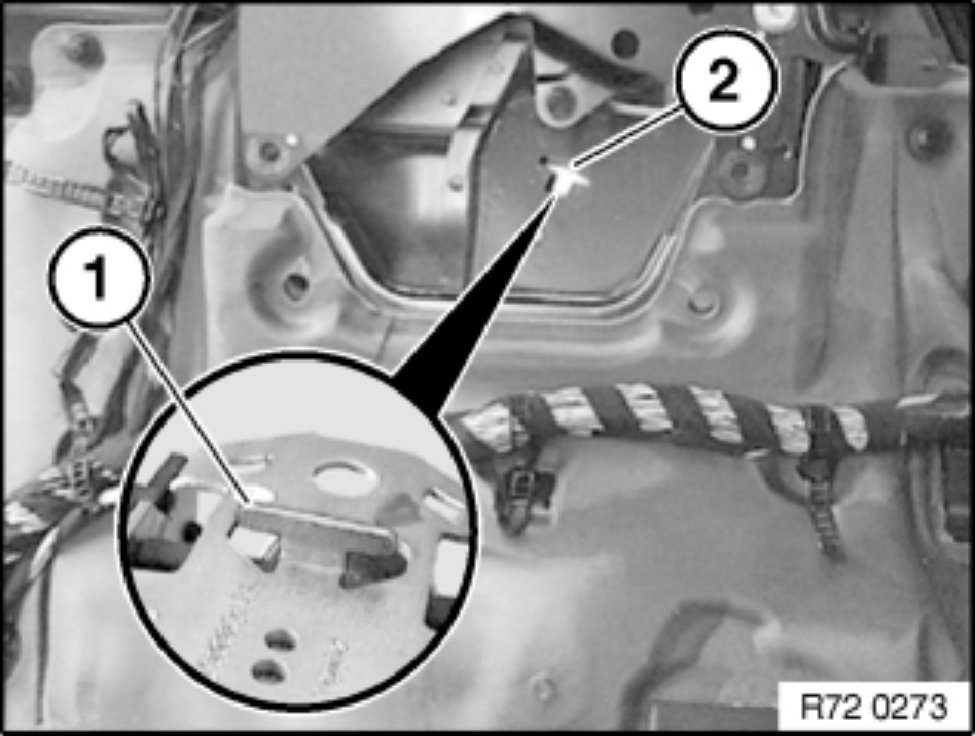

Ensure correct seating of coding on inertia reel unit (1) in wheel arch wall (2).

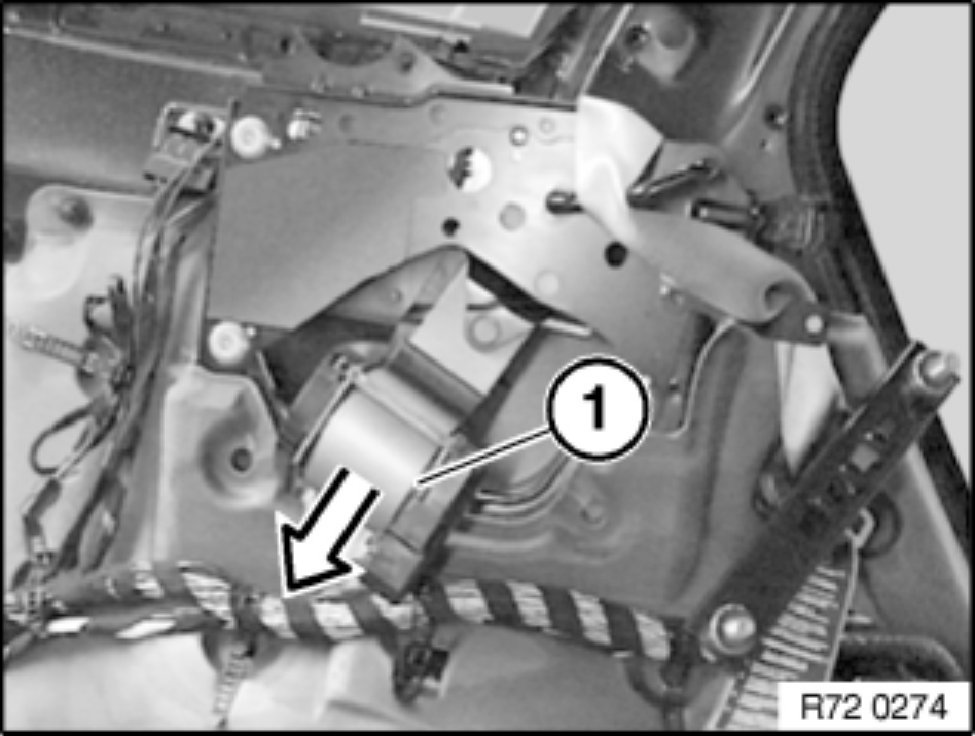

Feed inertia reel unit (1) and strap downwards out of opening in adapter plate.

Removing belt buckle:







NOTE: If necessary, remove rear seat.

Release screw (1).

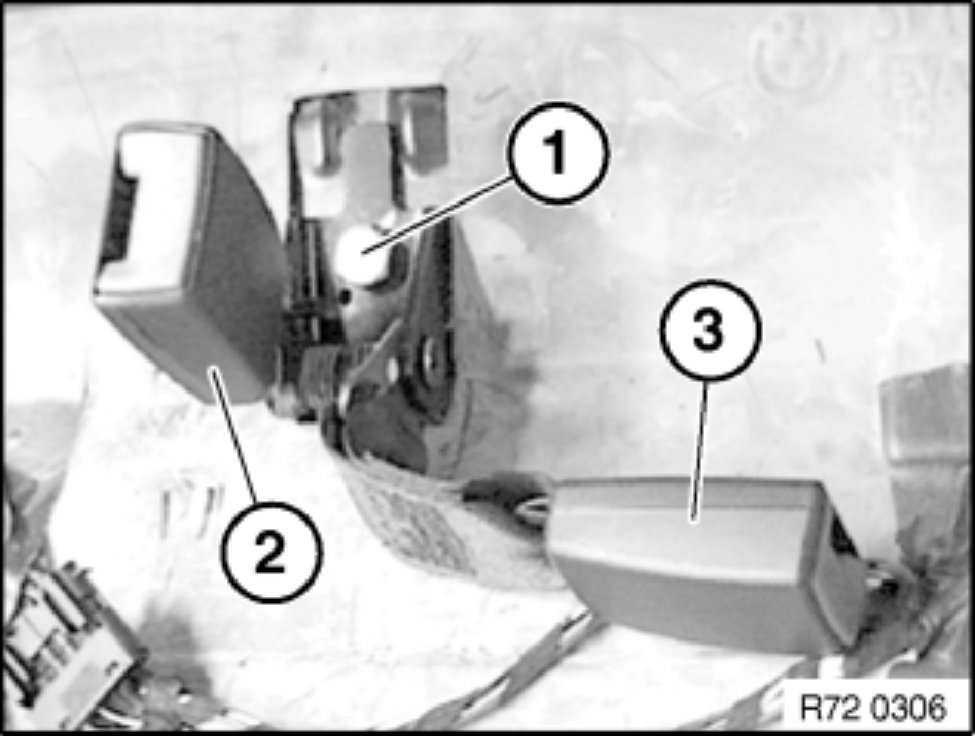

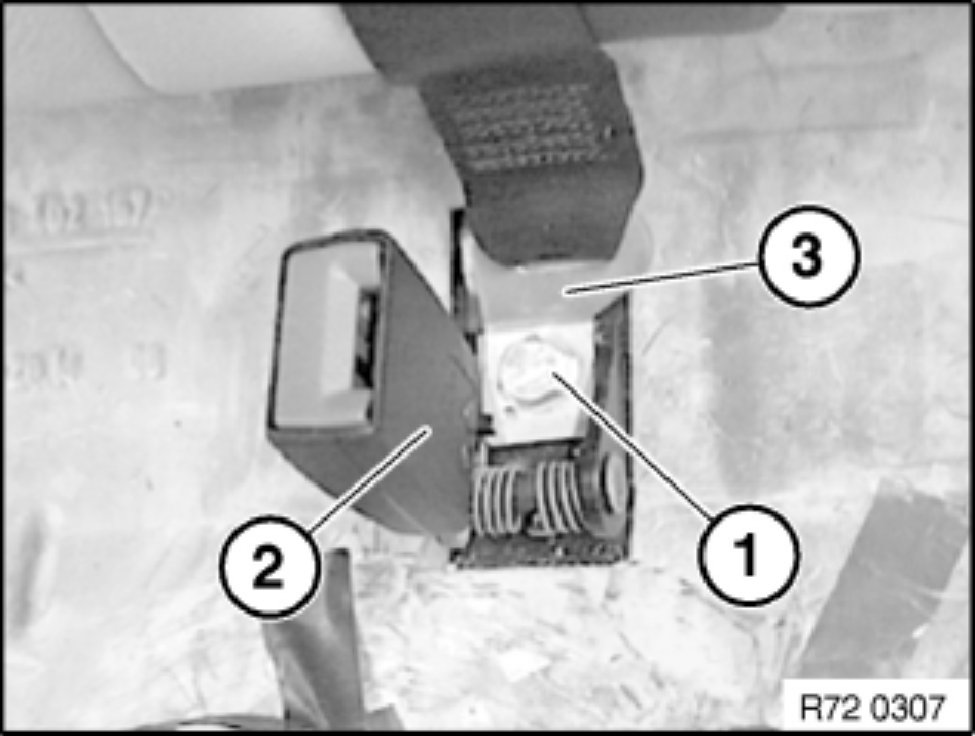

Remove left belt buckle (2) and lower strap (3) for seat belt, rear center.

Installation:
Tightening torque 48 Nm







Release screw (1).
Remove right belt buckle (2) and upper strap (3) for seat belt, rear center.

Installation:
Tightening torque 48 Nm

Installation:

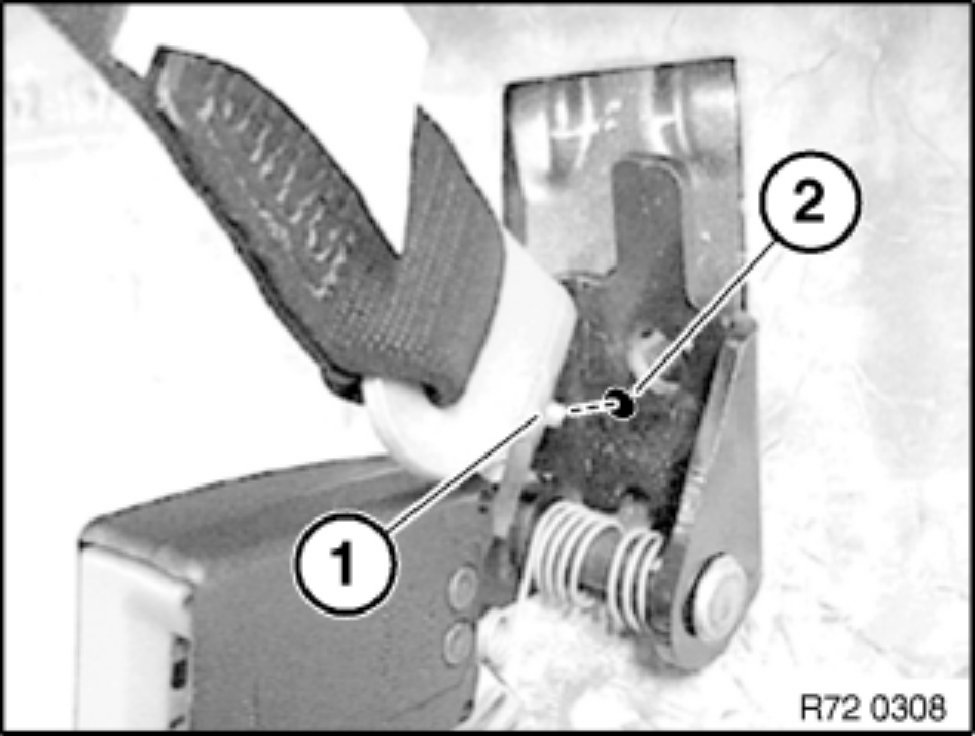

Lug (1) must snap into place in bore (2).
