Replacing Switch - Sports Steering Wheel Connected Airbag Unit

Replacing Switch On Sports Steering Wheel (With Connected Airbag Unit)

Necessary preliminary tasks:
- Remove airbag unit.

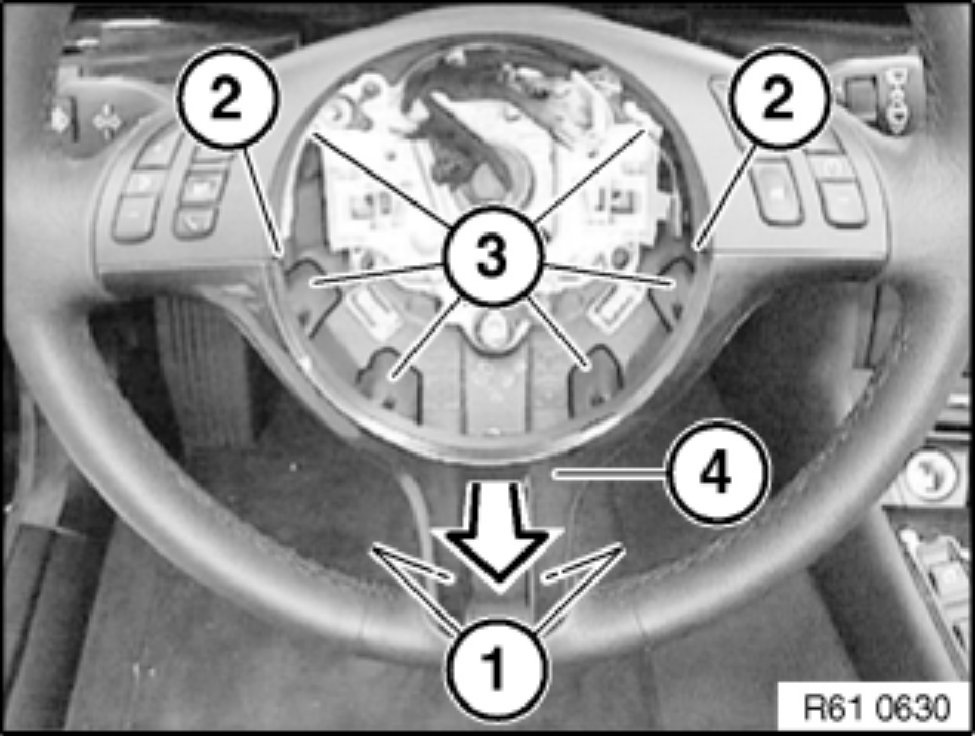

Remove screws (1) and (2).
Unclip complete trim (4) in direction of arrow from fixtures (3).
Disconnect plug connection underneath.

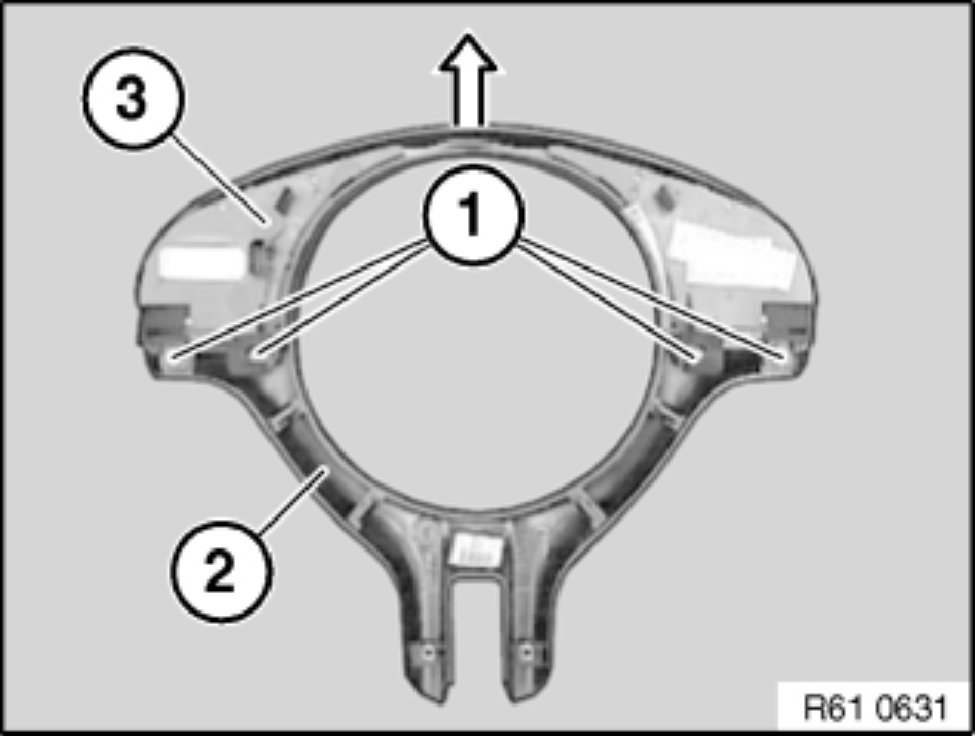

Release screws (1).
Detach switch on sports steering wheel (3) in direction of arrow from trim (2).
