Sucking Jet Pump

Replacing Suction Jet Pump(s)

Draw off fuel from fuel tank. Procedures
Remove sensor from left fuel level indicator.
Remove sensor from right fuel level indicator.

Right side

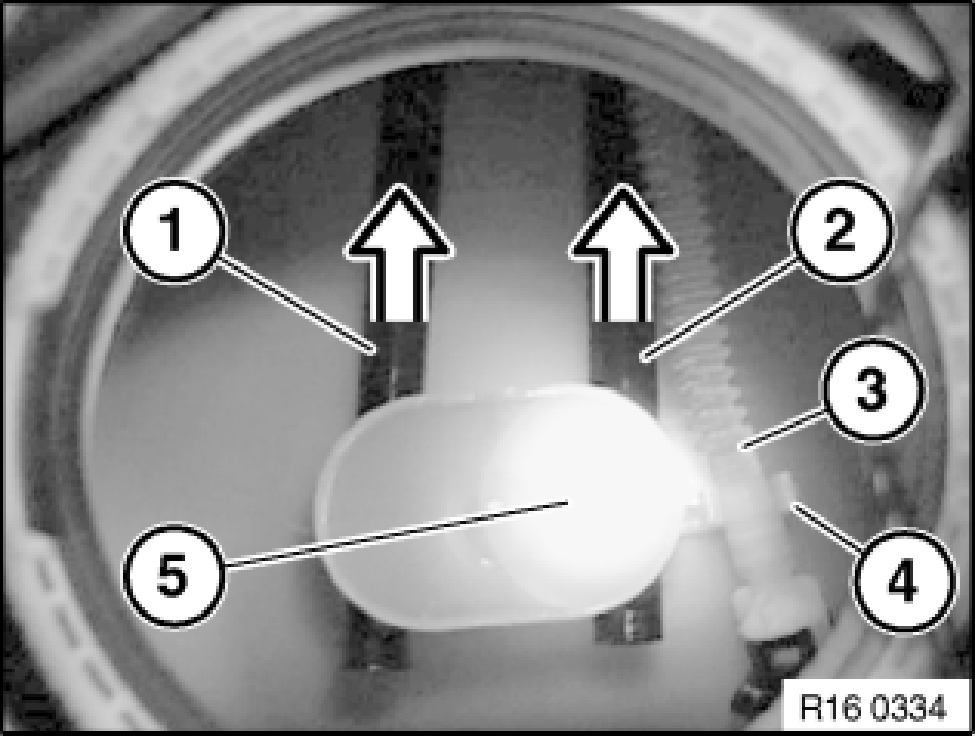

Lift line (3) out of holder (4).
Pull lines (1) + (2) to left out of holder (5).

Installation:
Lines (1) + (2) must noticeably snap into place when fitted in holder (5).

Left side

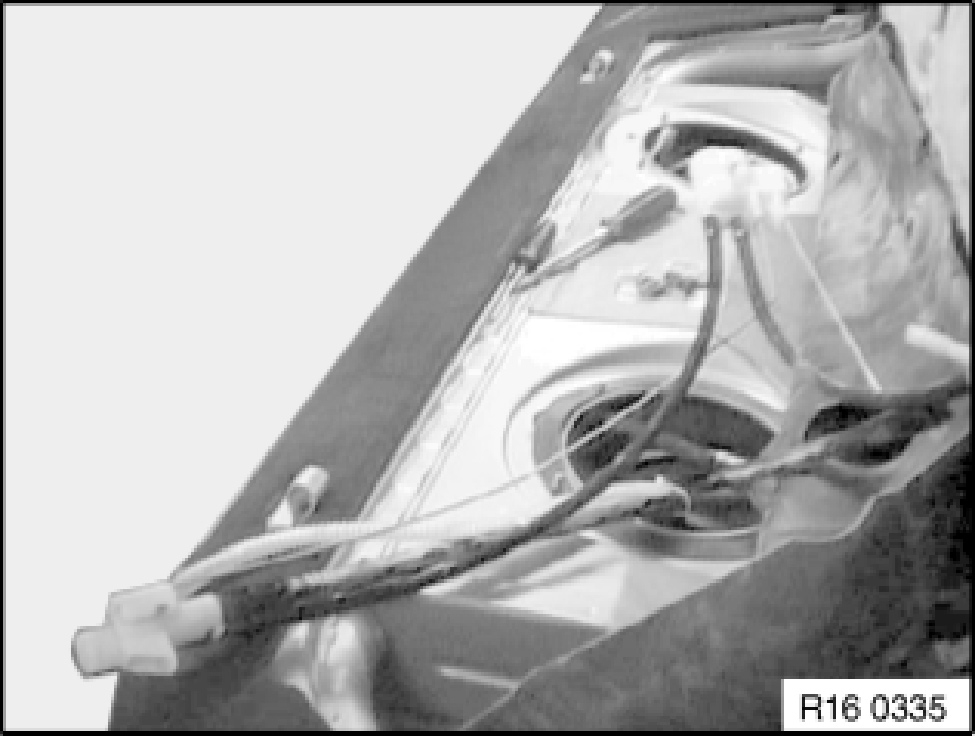

Feed suction jet pump out of fuel tank and pull out towards top.

Installation:







Carefully feed in lines of suction jet pumps, do not kink.

It is absolutely essential to ensure that line set for suction jet pumps is correctly positioned in fuel tank.

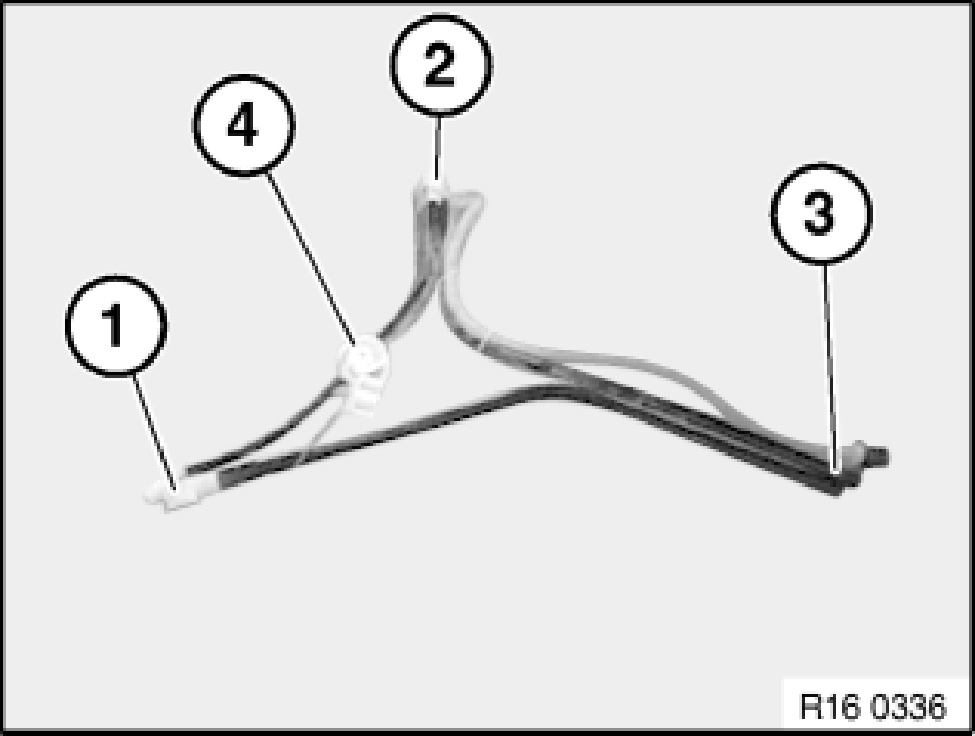

1. Suction jet pump in fuel tank, rear left
2. Suction jet pump in fuel tank, front left
3. Line ends for right side of fuel tank.
4. Connection of line set to sensor unit, left.
