Evaporative Emission Control Canister: Service and Repair

Removing And Installing/Replacing Carbon Canister

Removing fuel tank underbody protection on left.


NOTE:

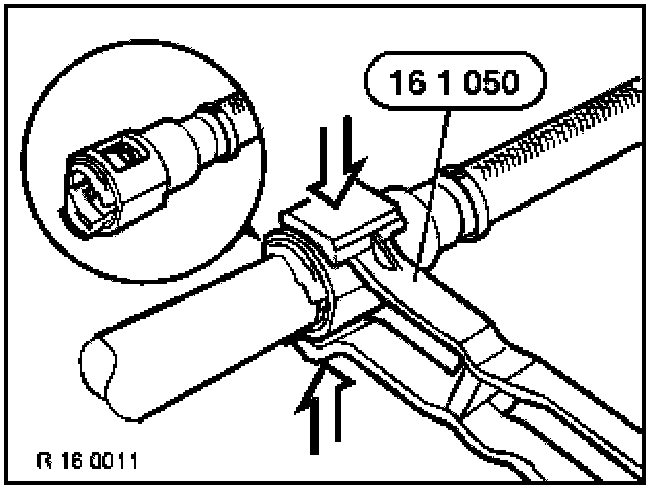

Unlock connections on carbon canister with special tool 16 1 050.







Disconnect connections (1) to (3).

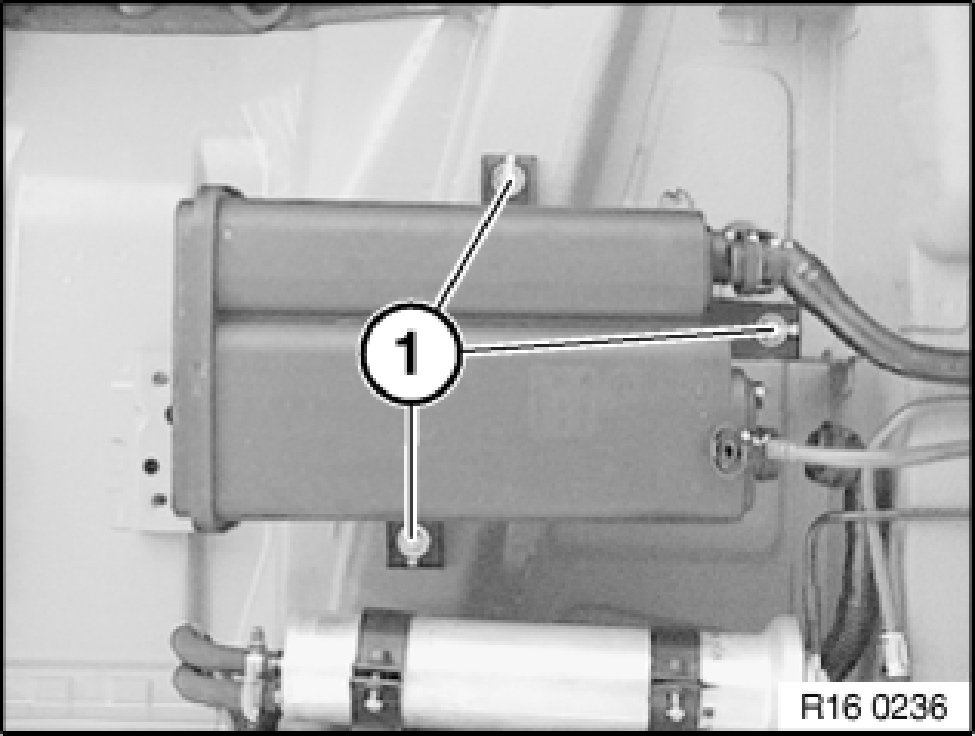

Release screws (1).
Remove activated carbon canister downward.
