Home >> BMW >> 2004 >> X5 (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Actuator >> Service and Repair >> Replacing Drive For Left Adaptive Headlight

Replacing Drive For Left Adaptive Headlight



Replacing Drive For Left Adaptive Headlight

Necessary preliminary tasks:
- Remove headlight (adaptive headlight)

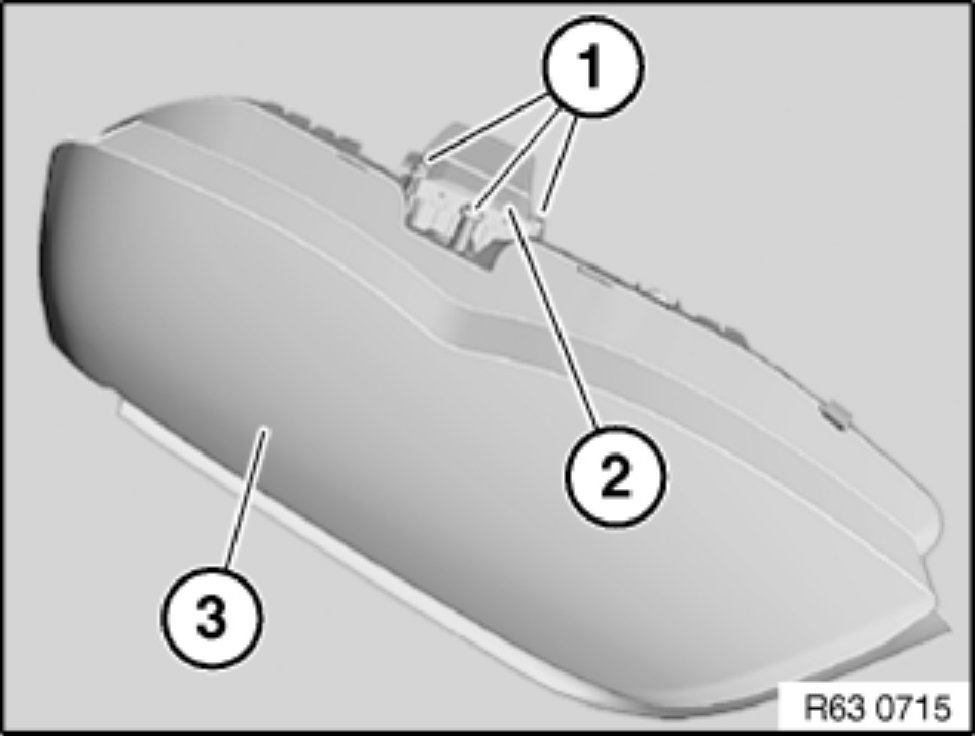

Release screws (1).
Remove drive for adaptive headlight (2) from xenon headlight (3).

Replacement:
Carry out programming/coding.
