Replacing Servodrive of Recirculated Air Flaps (A/C Control)

Replacing Servodrive Of Recirculated Air Flaps (A/C Control)

Remove trim for instrument panel, bottom right.
Remove side carpet on right side of center console.

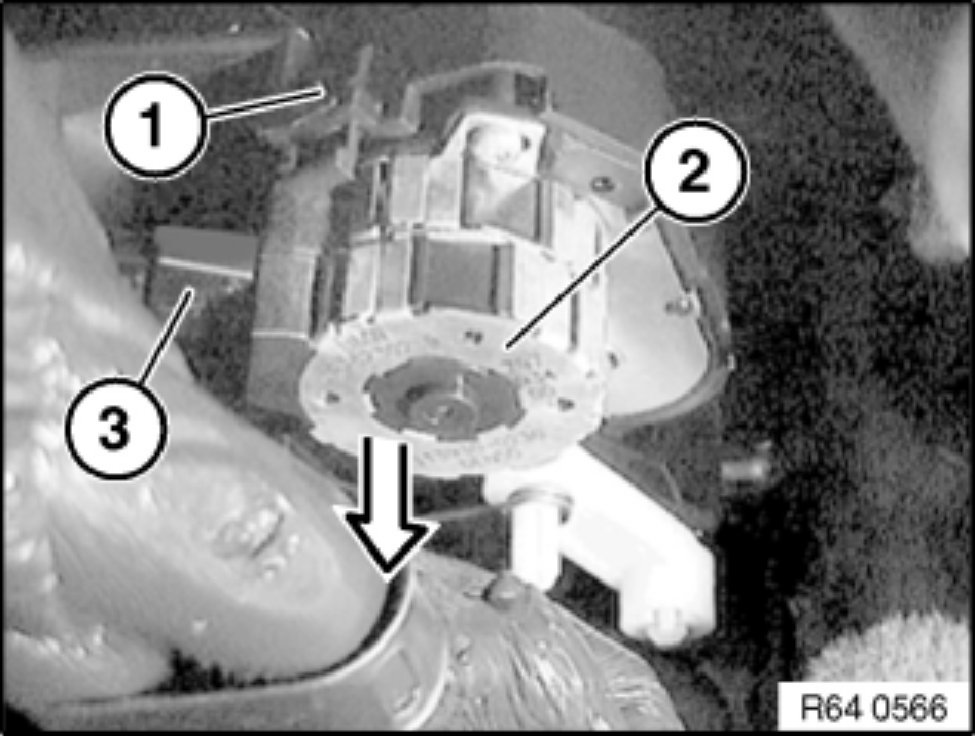

Unclip lock (1).
Pull out servodrive (2) in direction of arrow and disconnect plug connection (3).

Installation:

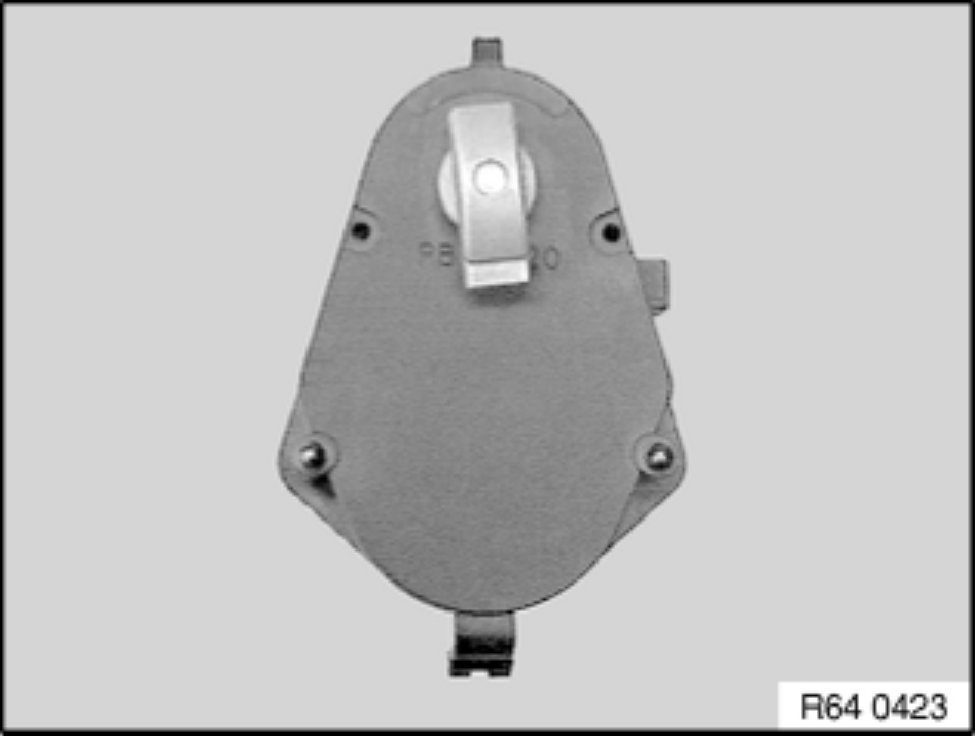

If necessary, align shaft of recirculated air flaps to position of servodrive.
