Replacing Servodrive of Rear Compartment Flap (Automatic A/C)

Replacing Servodrive Of Rear Compartment Flap (Automatic A/C)

Remove trim for instrument panel, bottom right.
Remove side carpet on right side of center console.

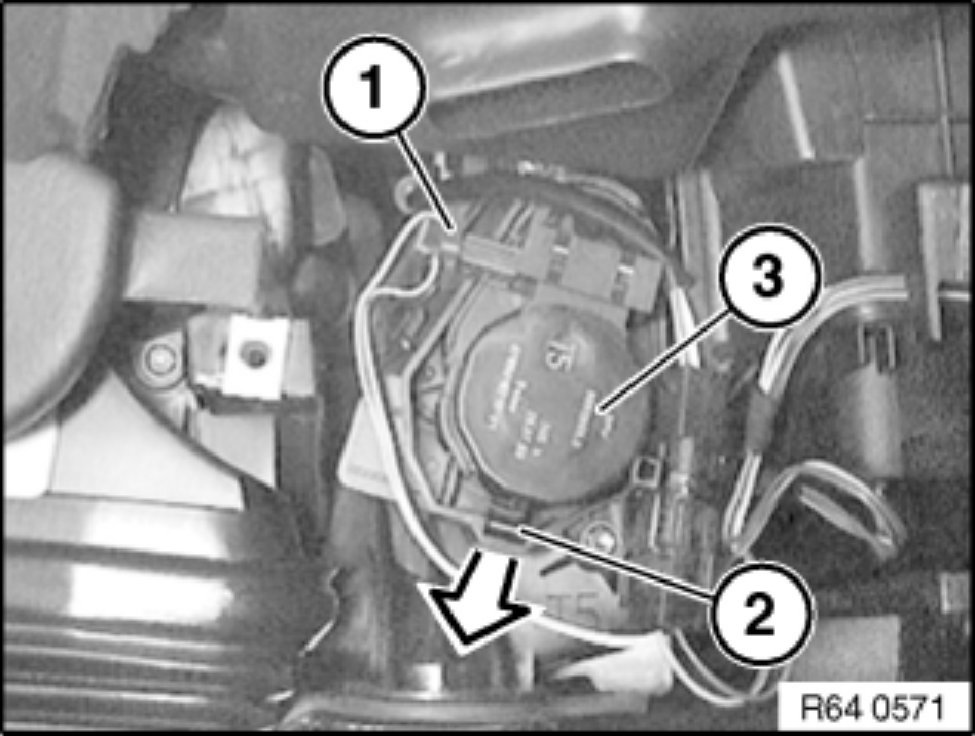

Disconnect plug connection (1).
Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Installation:

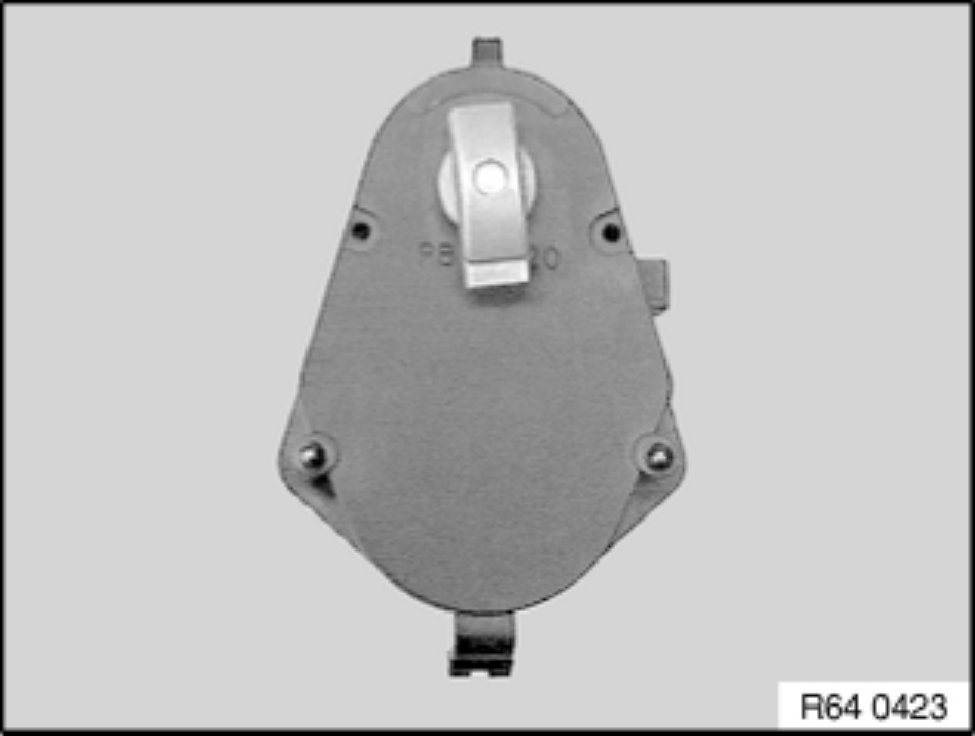

If necessary, align shaft of rear compartment flap to position of servodrive.
