Replacing Servodrive of Ram Air Flap (Automatic A/C)

Replacing Servodrive Of Ram Air Flap (Automatic A/C)

Remove trim for instrument panel, bottom right.
Remove side carpet on right side of center console.

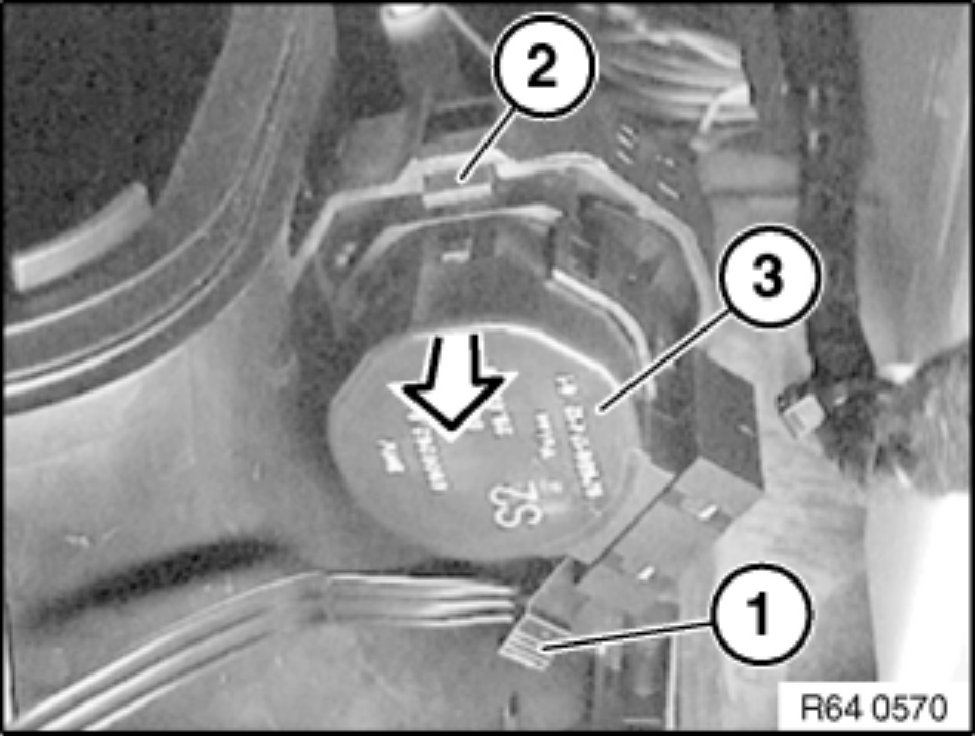

Disconnect plug connection (1).
Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Installation:

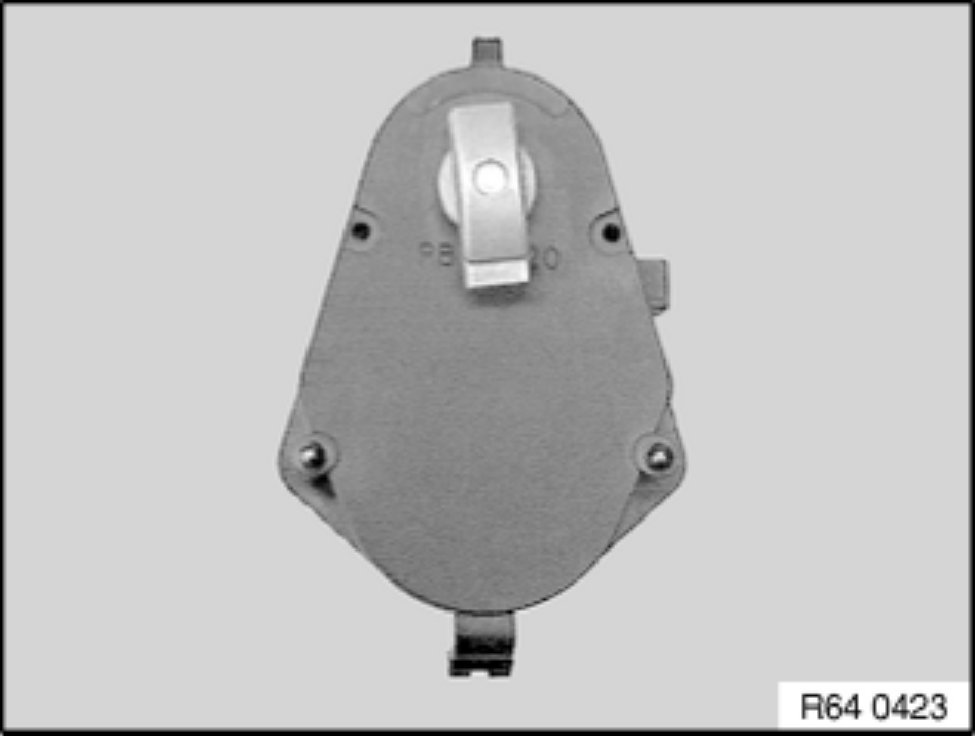

If necessary, align shaft of ram air flap to position of servodrive.
