Replacing Servodrive of Fresh Air/Recirculated Air Flap (IHKA)

Replacing Servodrive Of Fresh Air/recirculated Air Flap (Automatic A/C)

Remove trim for pedal assembly.

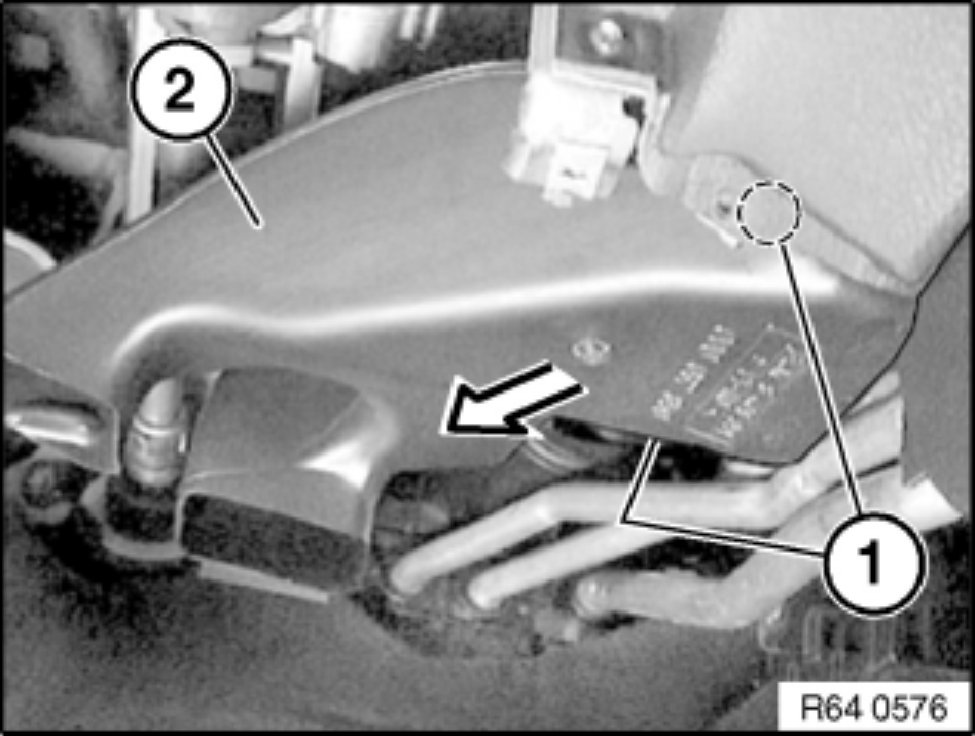

Unclip air duct for footwell on left (2) at mounts (1) and remove in direction of arrow.

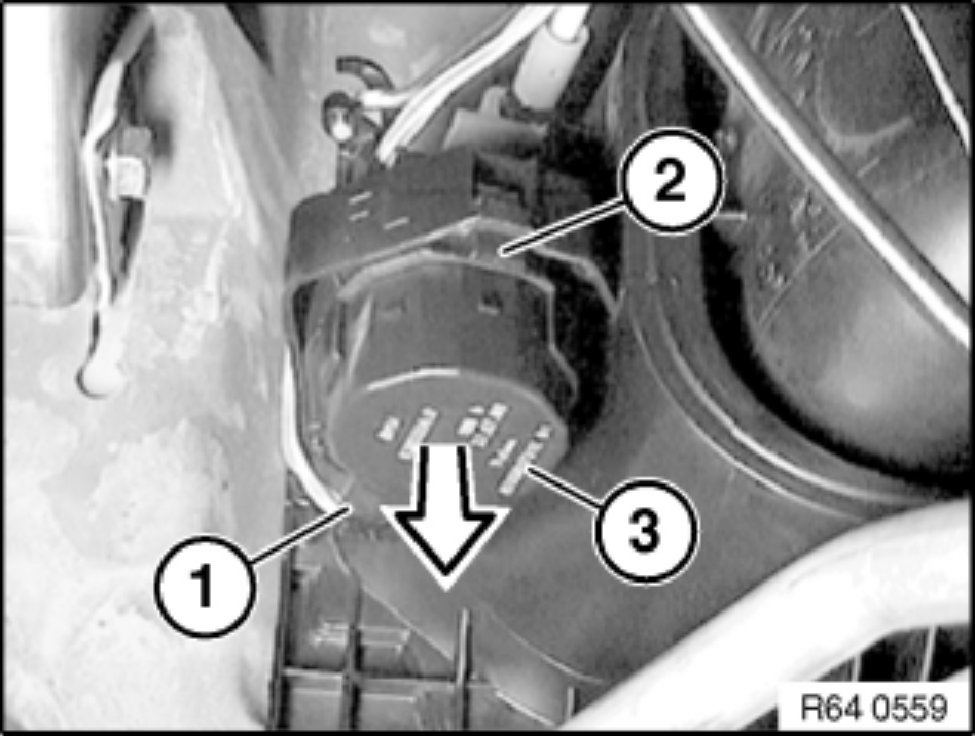

Unclip lock (2) and pull out servodrive (3) in direction of arrow.
Disconnect plug connection (1).

Installation:







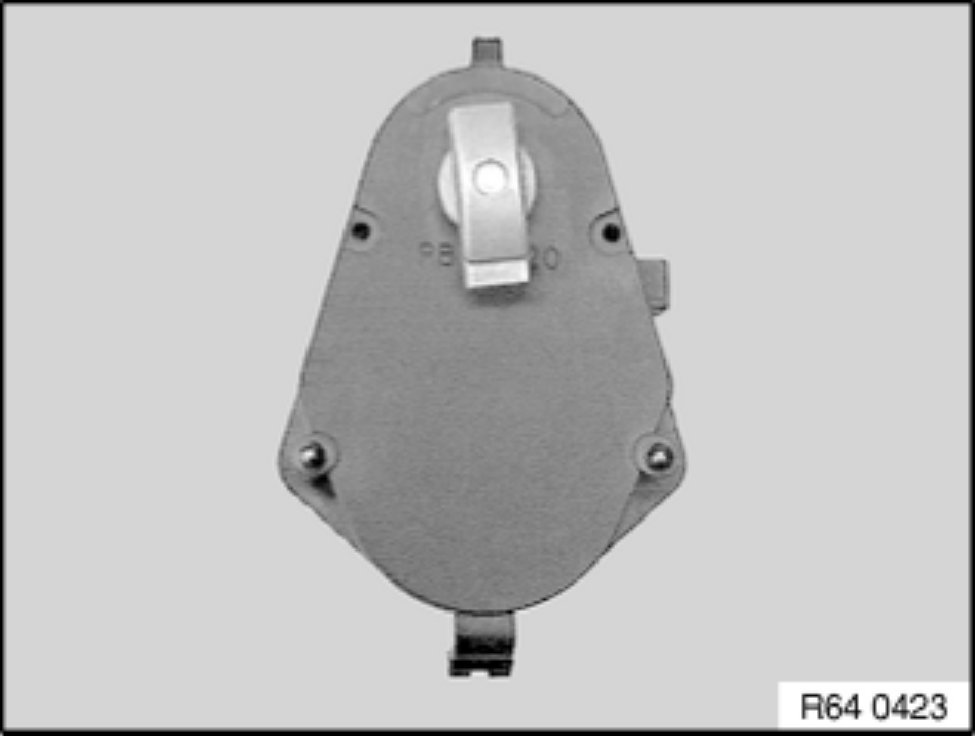

If necessary, align shaft of fresh air/recirculated air flap to position of servodrive.
