Replacing Servodrive of Fresh Air/Recirculated Air Flap

Replacing Servodrive Of Fresh Air/Recirculated Air Flap (Automatic A/C)

Remove trim for pedal assembly

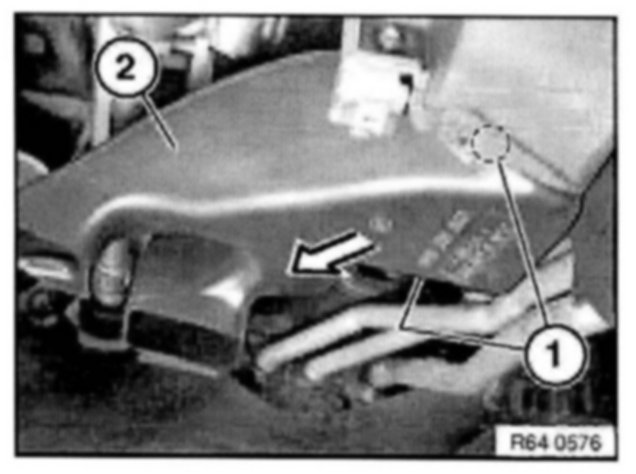

Unclip air duct for footwell on left (2) at mounts (1) and remove in direction of arrow

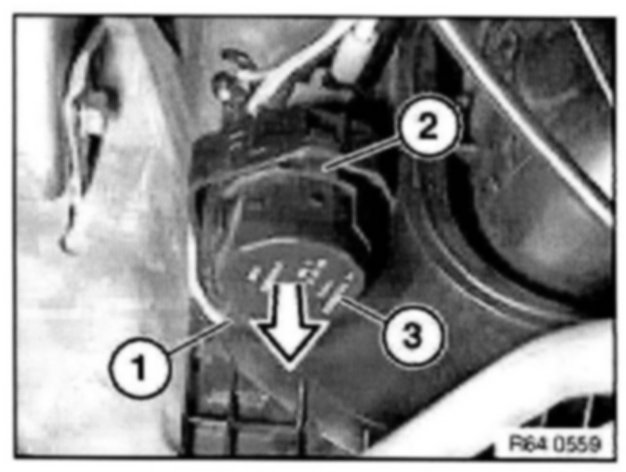

Unclip lock (2) and pull out servodrive (3) in direction of arrow.
Disconnect plug connection (1).







Installation:

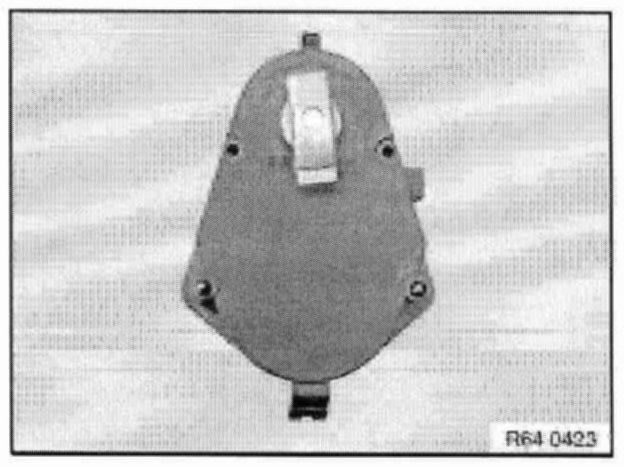

If necessary, align shaft of fresh air/recirculated air flap to position of servodrive.
