Replacing Servodrive of Footwell Flap (Automatic A/C)

Replacing Servodrive Of Footwell Flap (Automatic A/C)

Remove right glovebox.

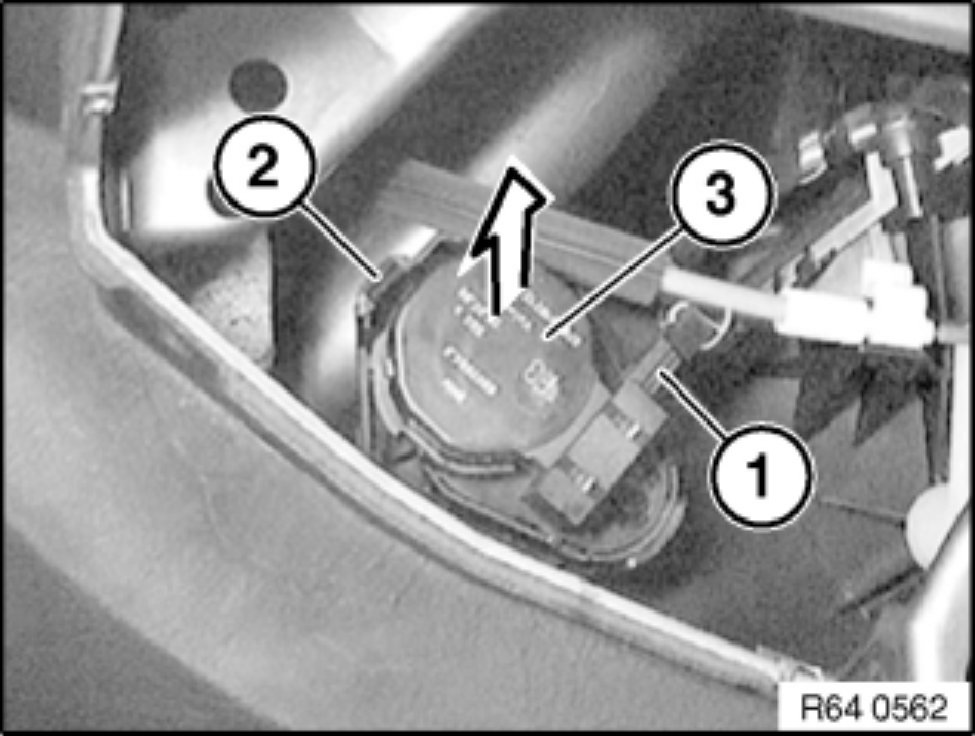

Disconnect plug connection (1).
Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Installation:

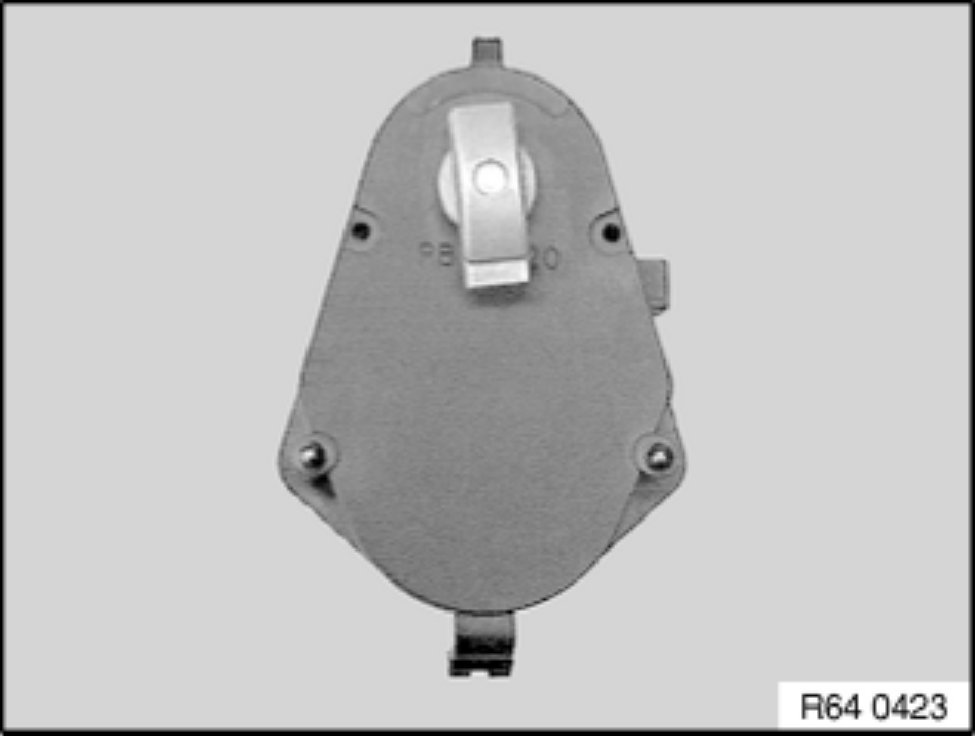

If necessary, align shaft of footwell flap to position of servodrive.
