Input Parameter, Mixture/Ignition (Up to 09/03)
Input Parameter, Mixture/Ignition (Up to 09/03)

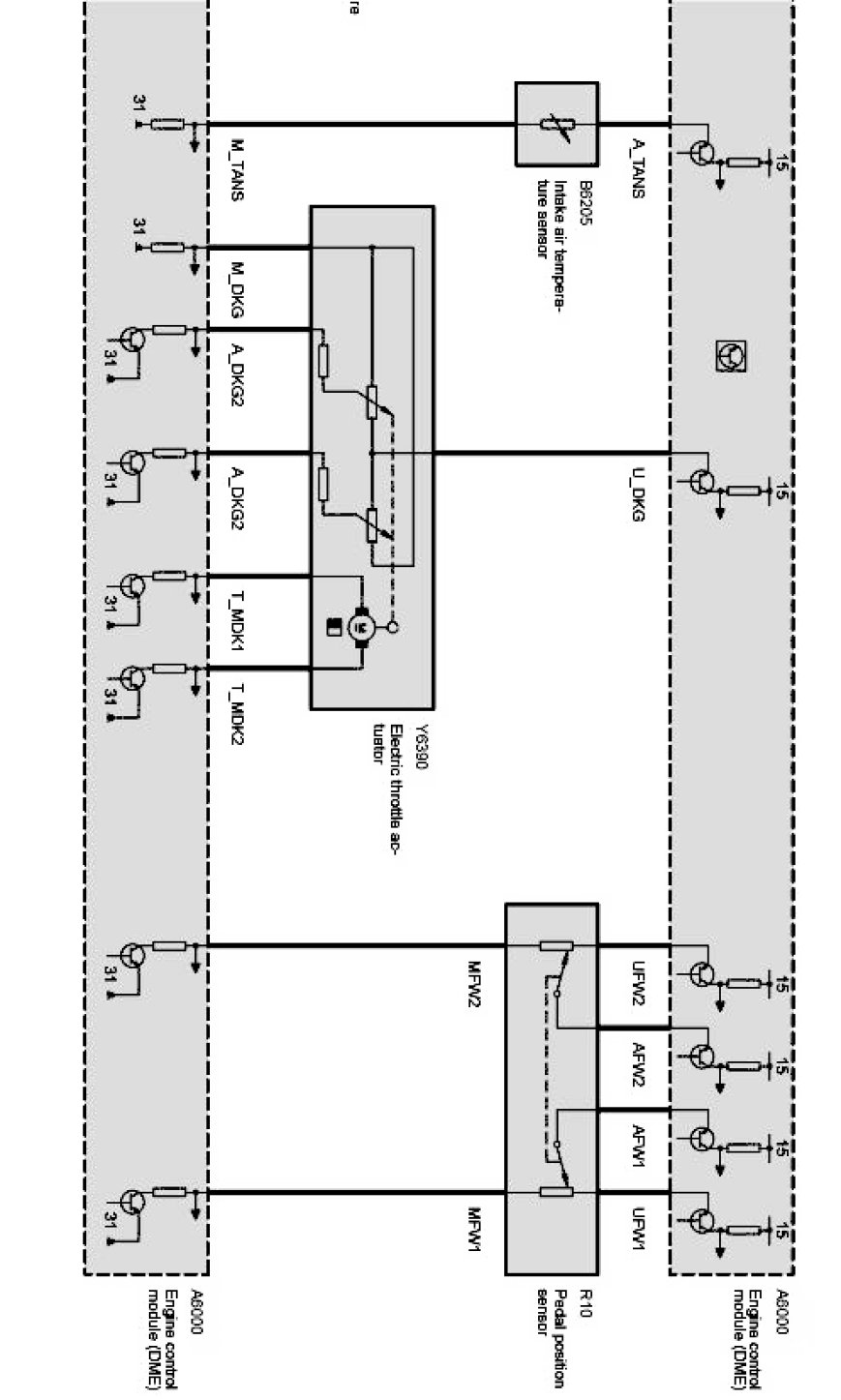

E53 Input parameter, mixture/ignition Part 1 Of 3:

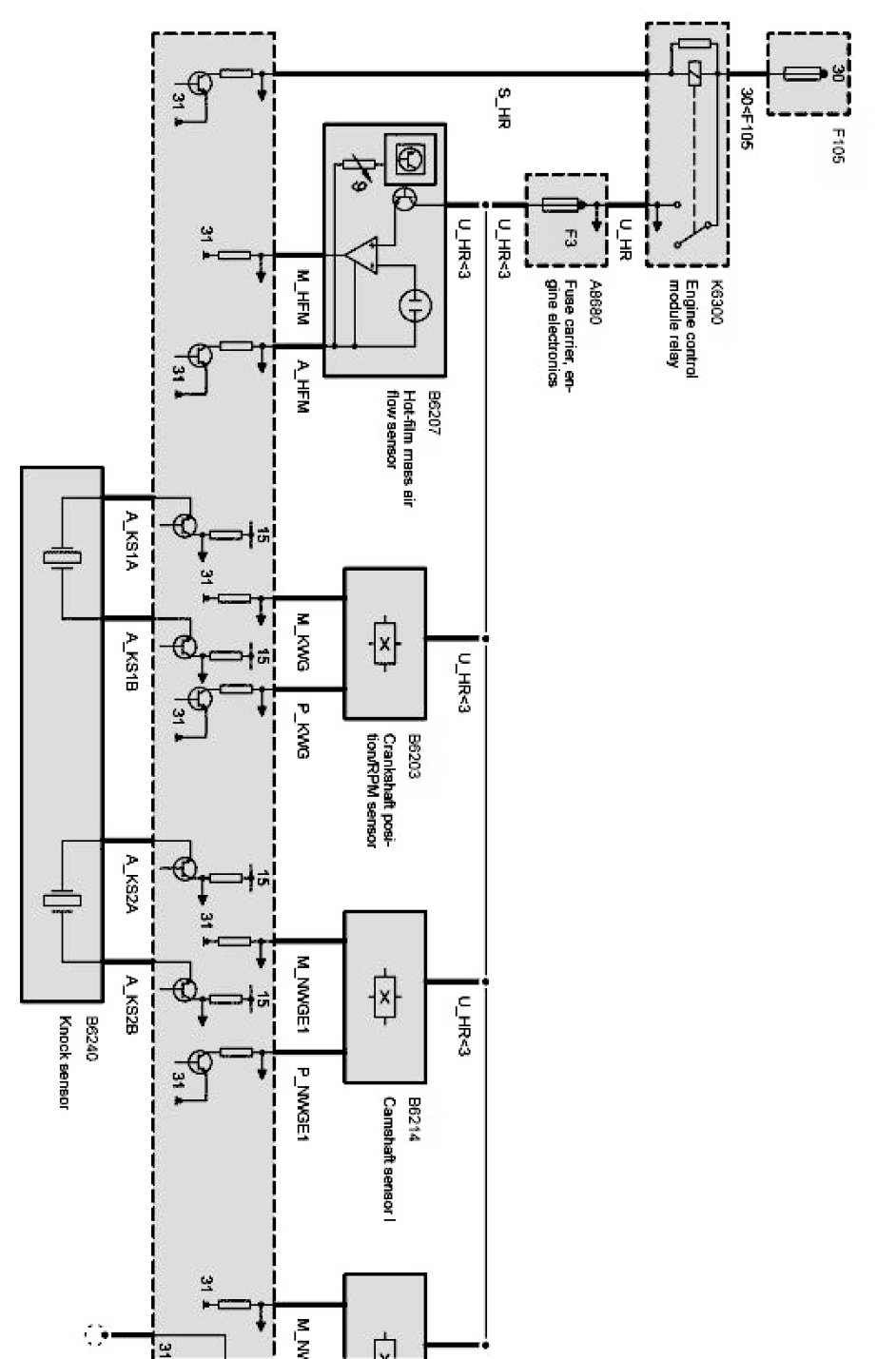

E53 Input parameter, mixture/ignition Part 2 Of 3:

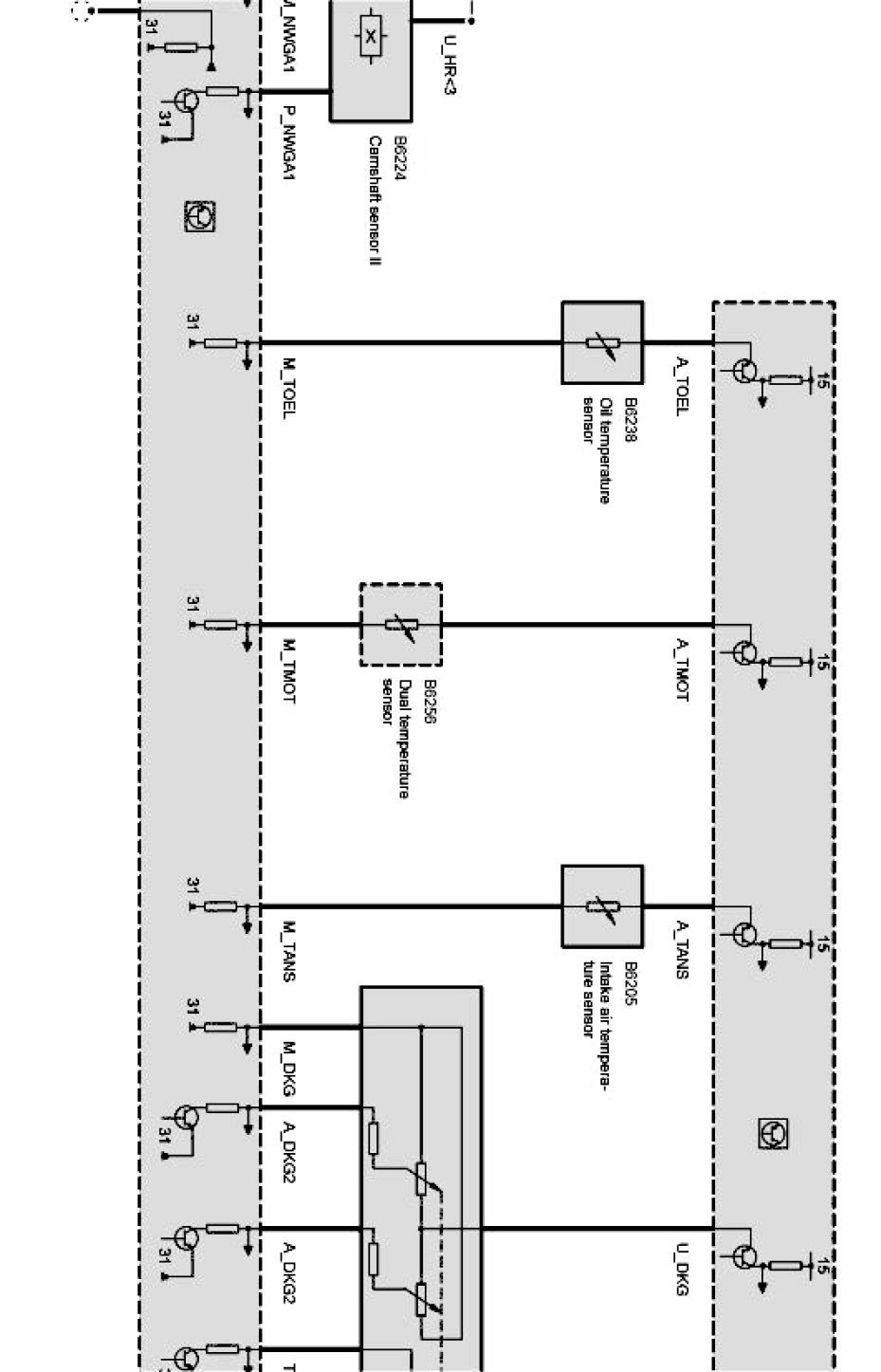

E53 Input parameter, mixture/ignition Part 3 Of 3:
