Engine Management, Signals/Auxiliary Signals (Without Automatic Transmission As of 09/01 Up to 09/03)

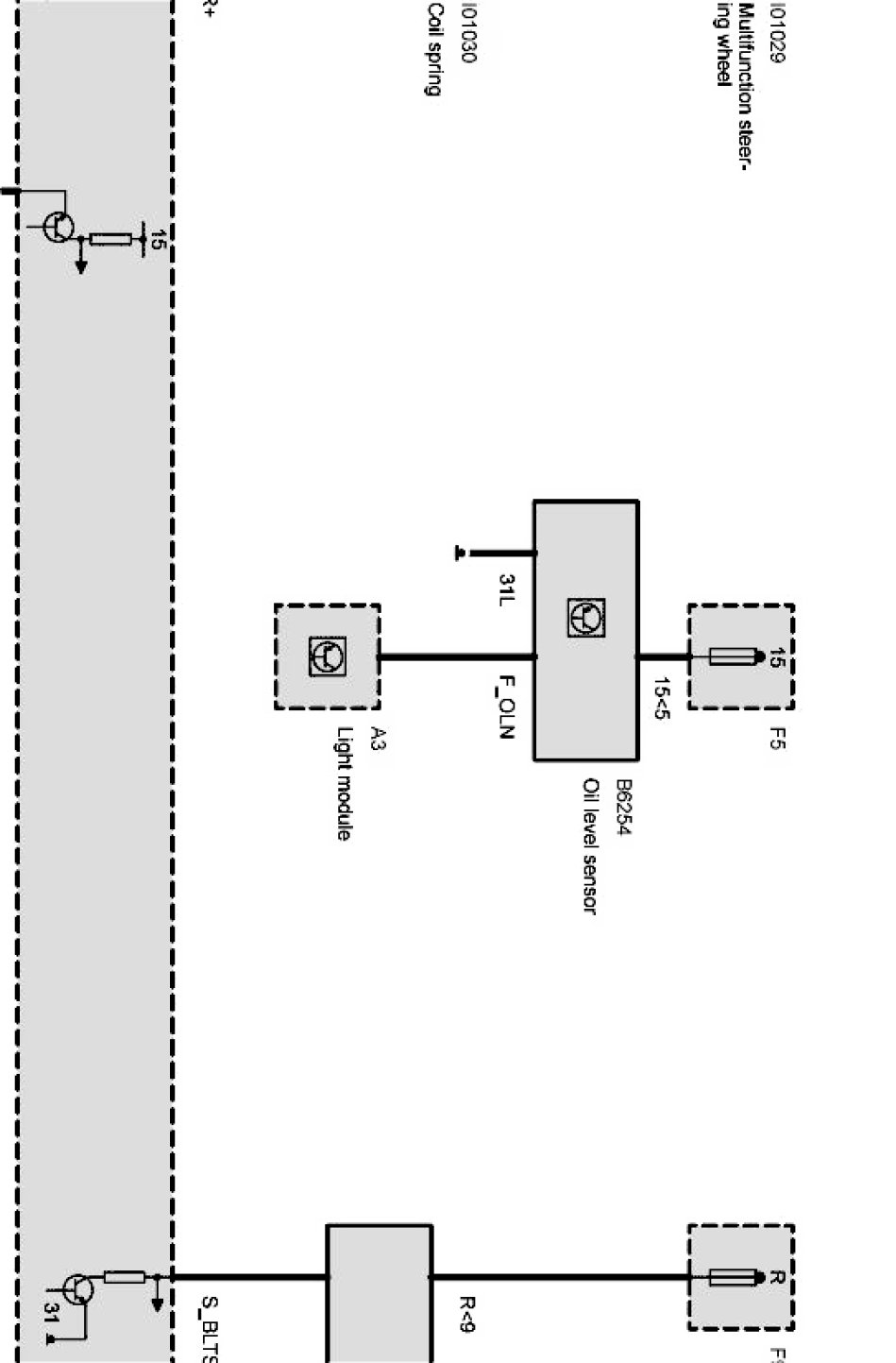

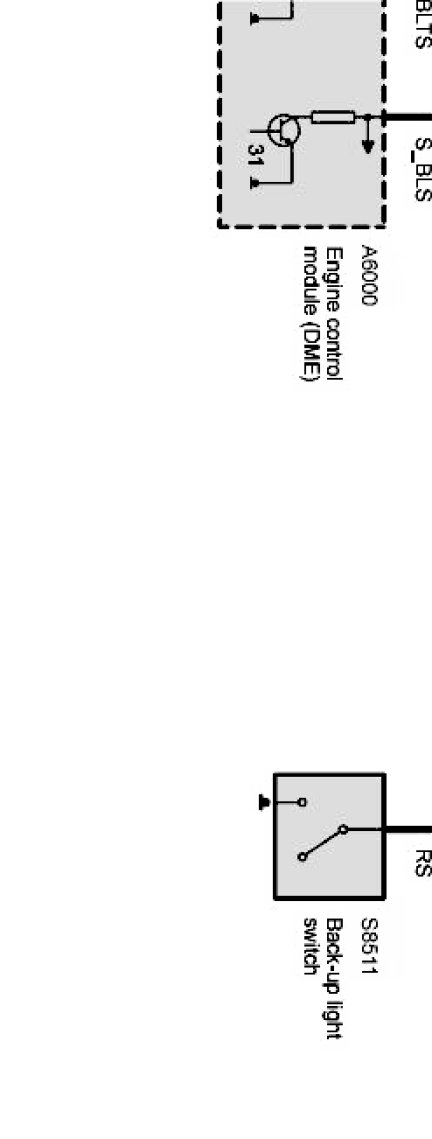

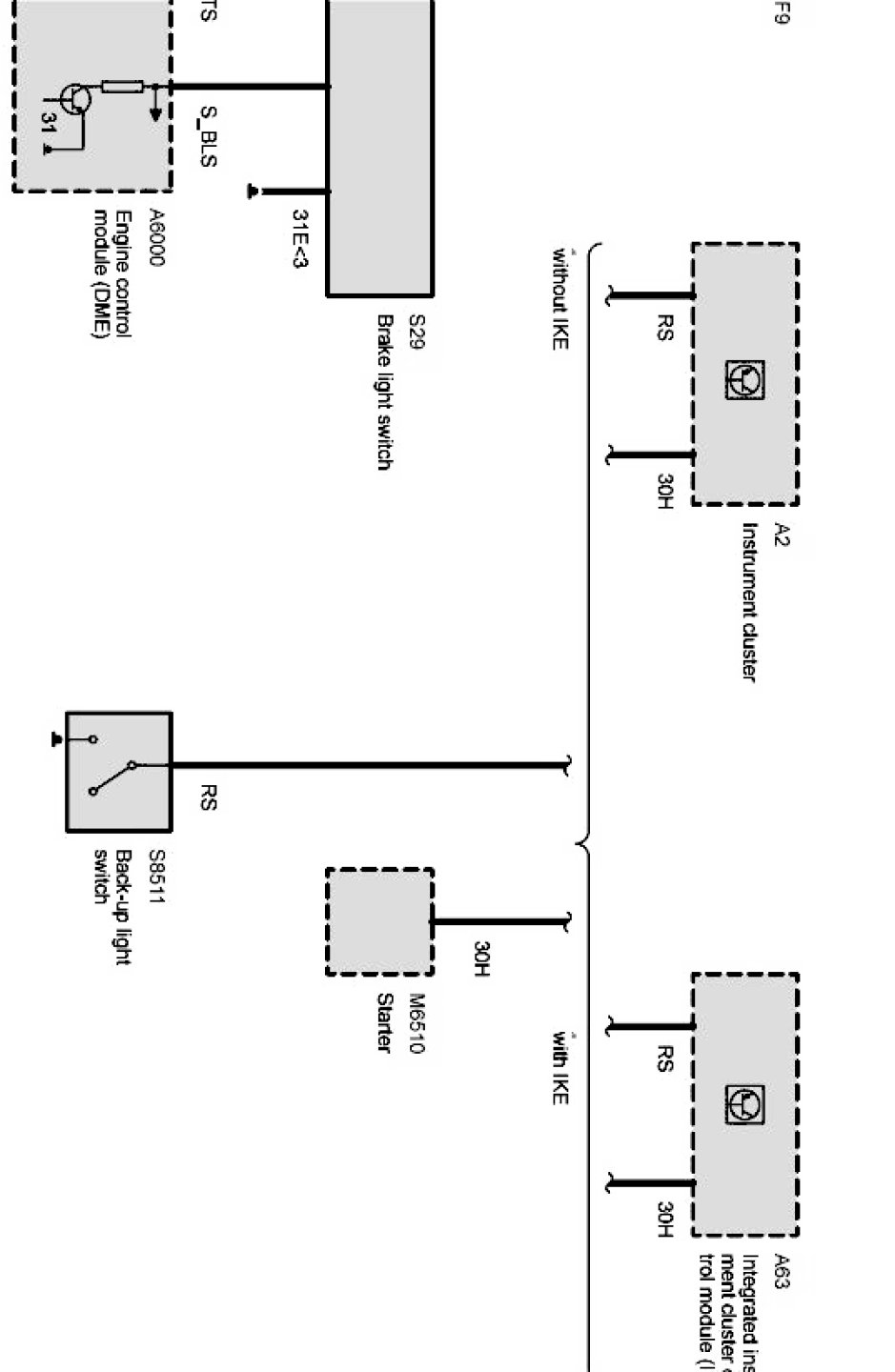

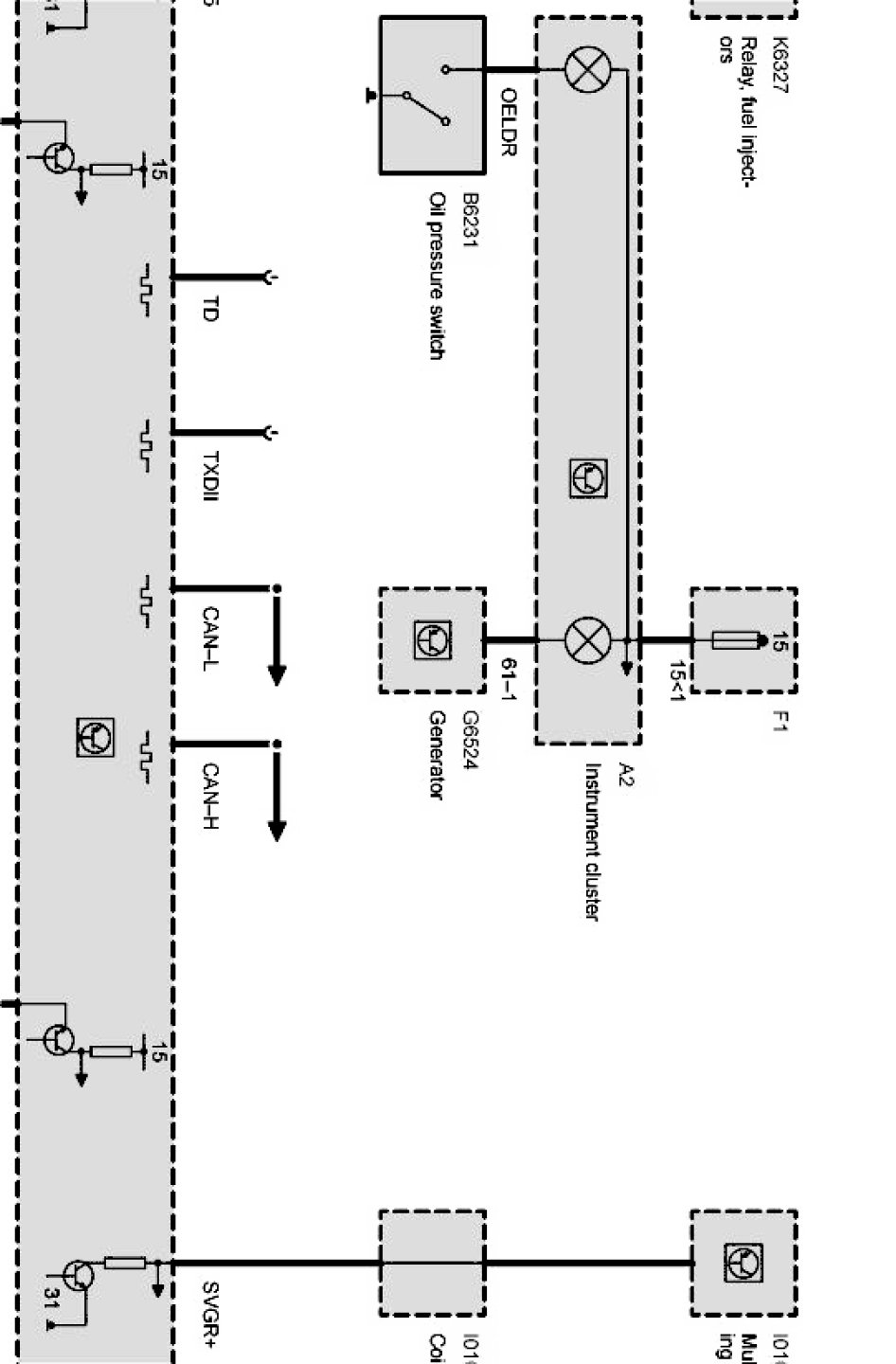

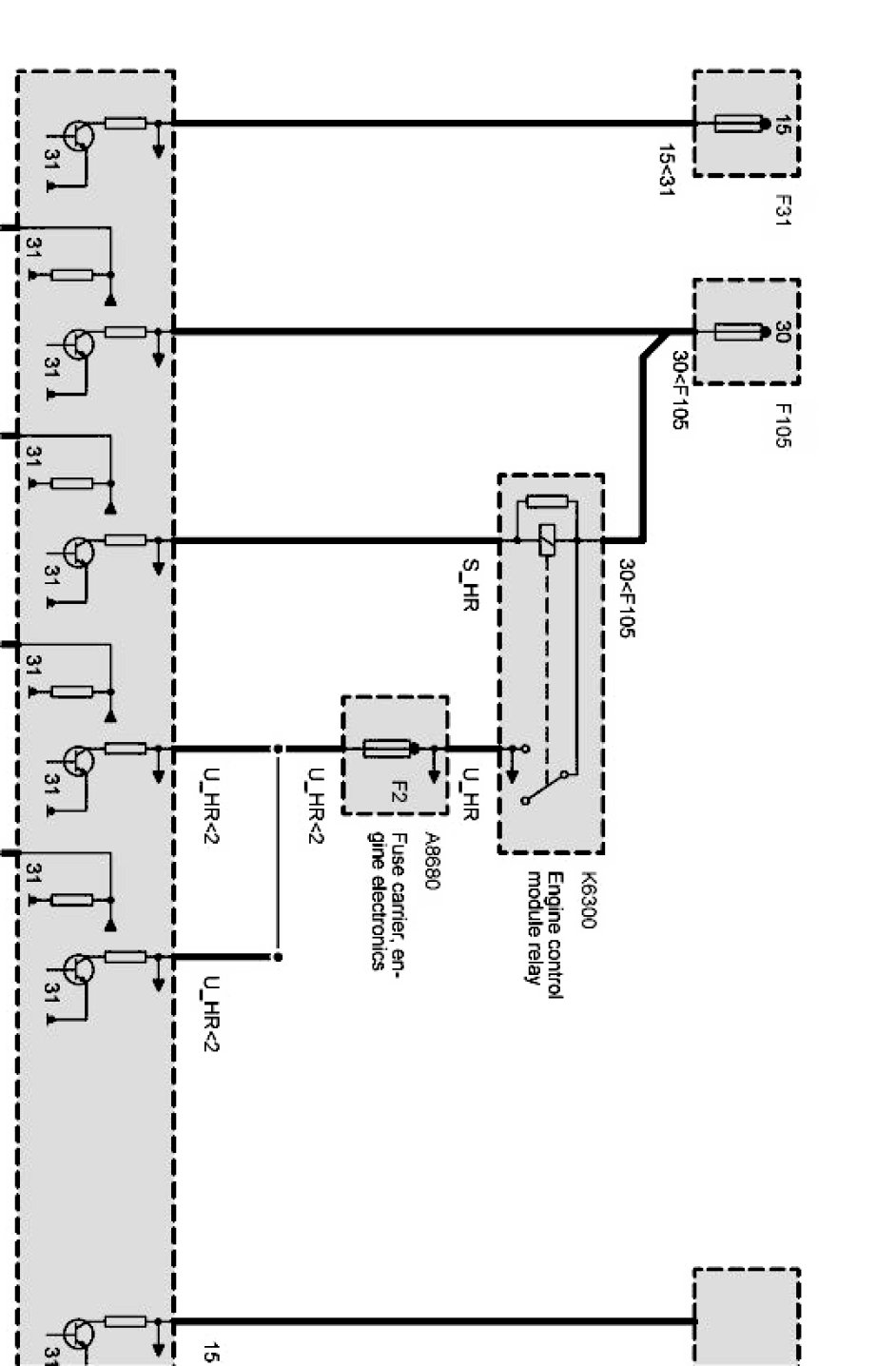

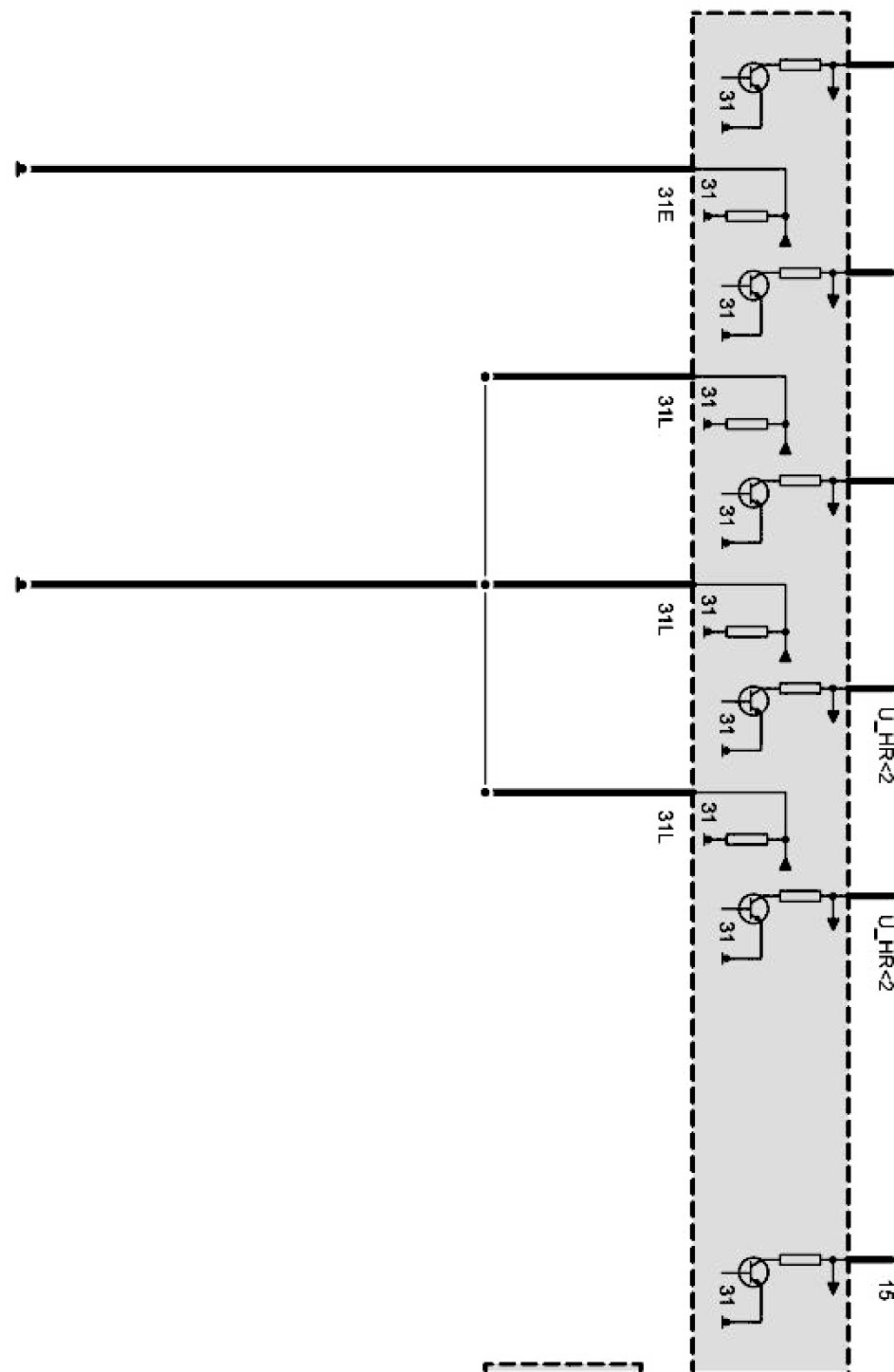

E53 Engine management, signals/auxiliary signals Part 1 Of 8:

E53 Engine management, signals/auxiliary signals Part 2 Of 8:

E53 Engine management, signals/auxiliary signals Part 3 Of 8:

E53 Engine management, signals/auxiliary signals Part 4 Of 8:

E53 Engine management, signals/auxiliary signals Part 5 Of 8:

E53 Engine management, signals/auxiliary signals Part 6 Of 8:

E53 Engine management, signals/auxiliary signals Part 7 Of 8:

E53 Engine management, signals/auxiliary signals Part 8 Or 8:
