Rear Right Side Light (As of 09/01 Up to 09/03)
Rear Right Side Light (As of 09/01 Up to 09/03)

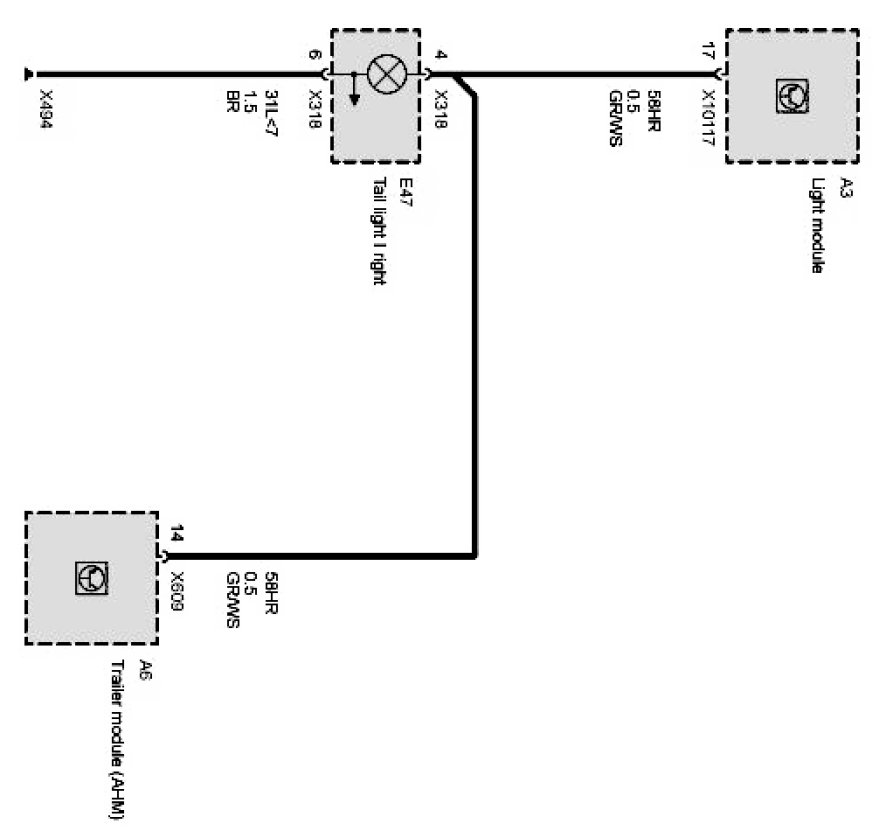

E53 Side light, rear right Part 1 Of 1:
