Instrument Cluster (IKE High) (IKE Instrument-Cluster Electronics)
>>
General Brake Warning Lamp
>>
Washer Fluid Level, Brake Fluid Level (Up to 09/03)
Washer Fluid Level, Brake Fluid Level (Up to 09/03)

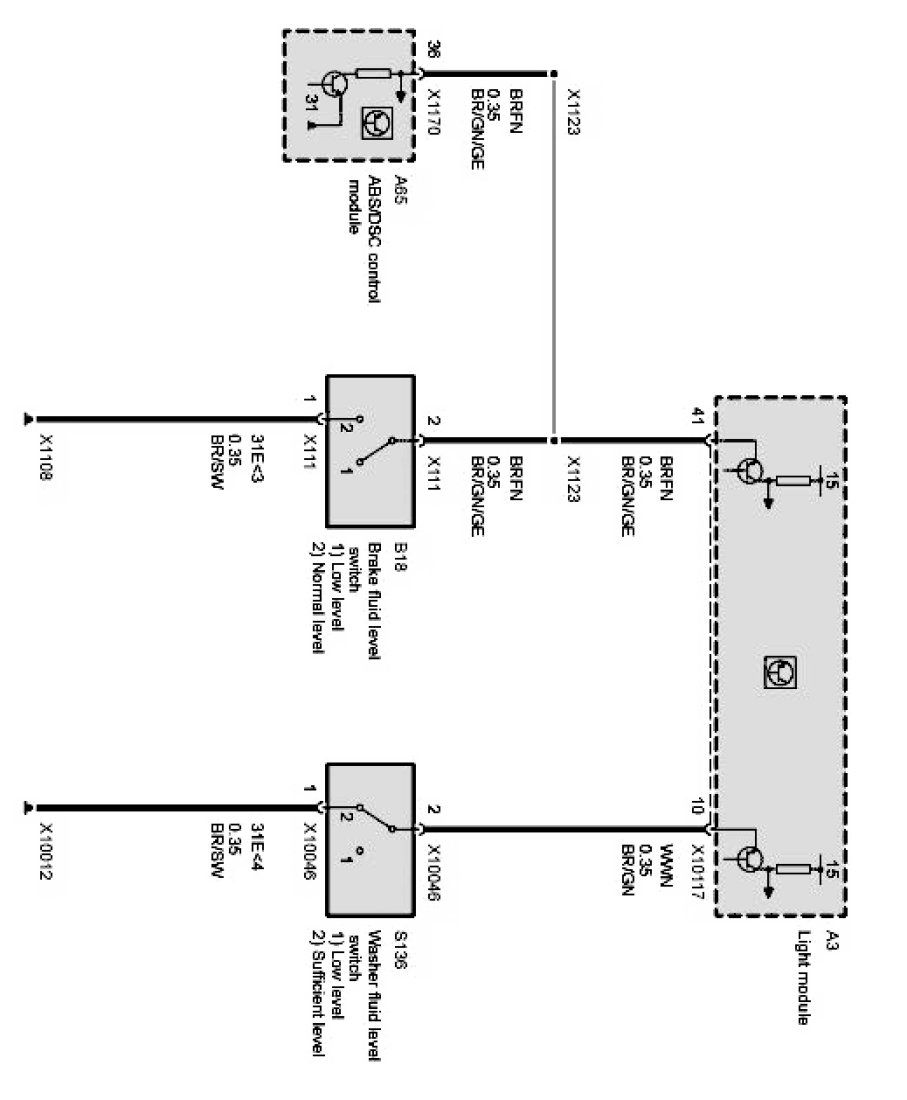

E53 Washer fluid level, brake fluid level Part 1 Of 1:
