CAN Interface ((DME Digital Motor Electronics MS43 or DME Motor Electronics ME7.2) W/IKE Instrmt Clstr Elctrncs 03/01 - 09/03)
CAN Interface ((DME Digital Motor Electronics MS43 or DME Motor Electronics ME7.2) W/IKE Instrmt Clstr Elctrncs 03/01 - 09/03)

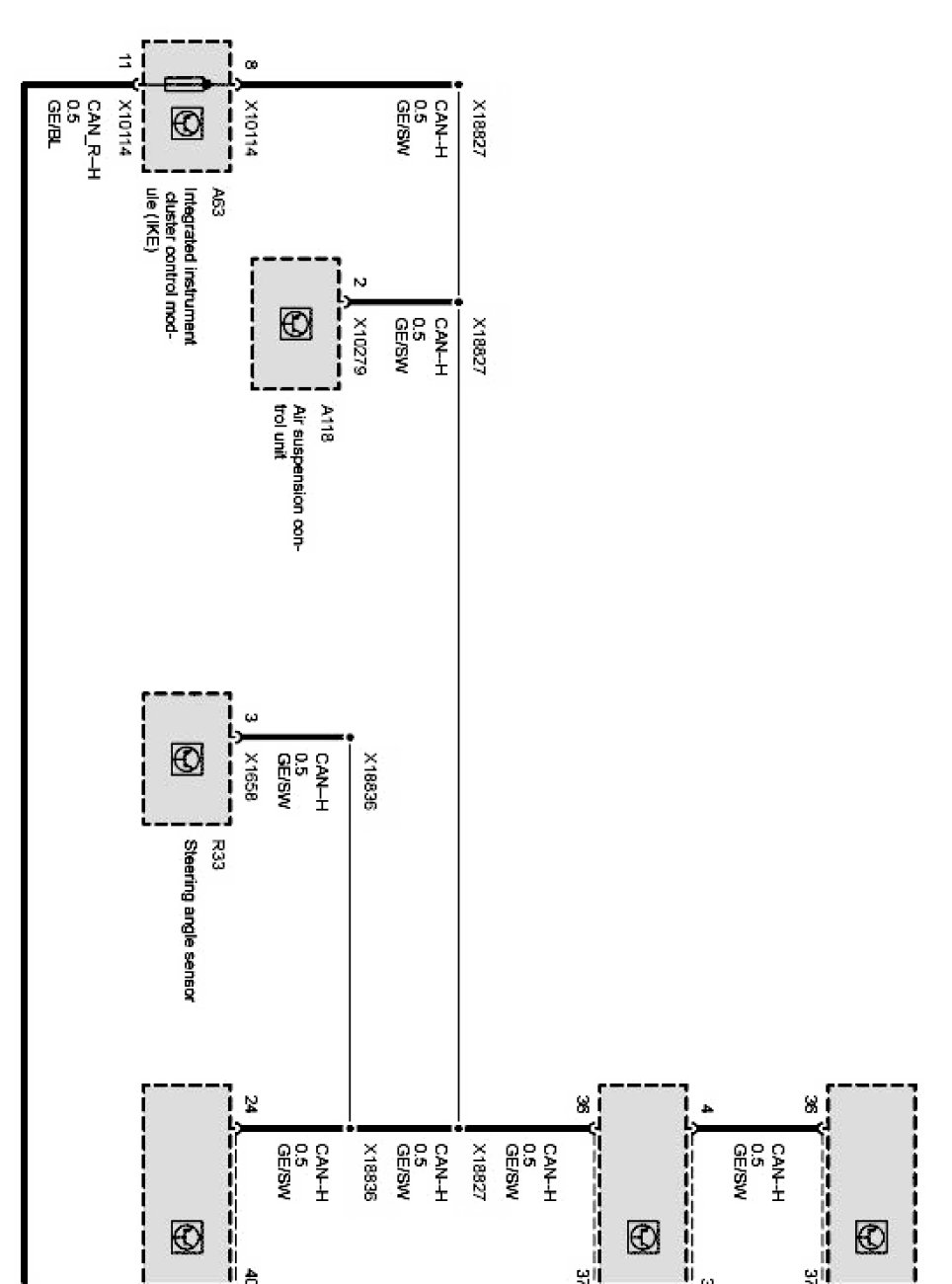

E53 CAN interface Part 1 Of 2:

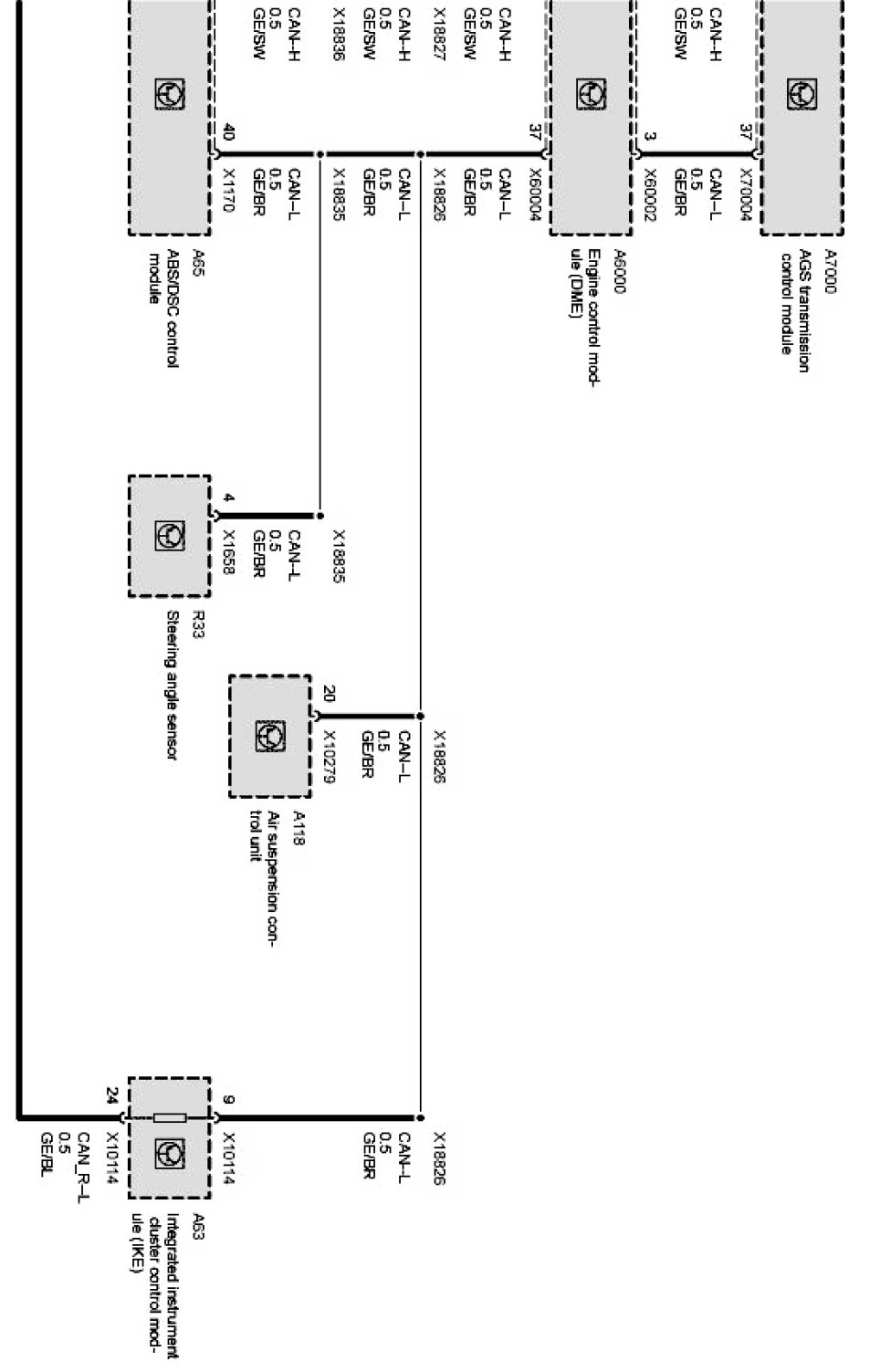

E53 CAN interface Part 2 Of 2:
