Removing and Installing or Replacing All Handbrake Pads

Removing and Installing or Replacing All Handbrake Pads

Remove rear brake disks.

Installation:

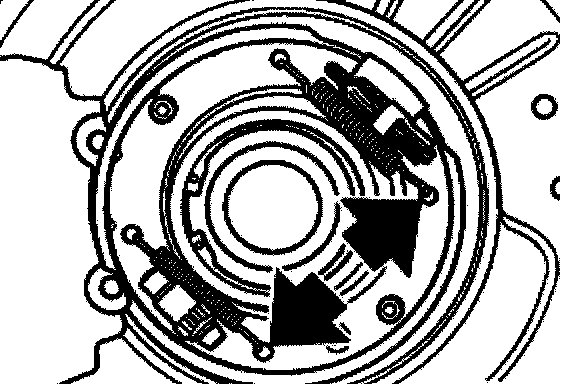

Disconnect return springs with brake spring pliers.
Installation: Check recoil springs and replace if necessary.





Twist clamping pins with special tool 34 4 000 through 90� and disconnect.
Remove brake shoes.





Note: Figure illustrates right side: left side is mirror image of this.

Installation:Note installation position of adjusting screws (1) and (2).
Coat threads of bushing (1) and screw (2) with grease.
