Remove & Install Brake Shoe Expander For Handbrake Shoes

Removing and Installing/Replacing Brake Shoe Expander For Handbrake Shoes

Remove handbrake shoes.

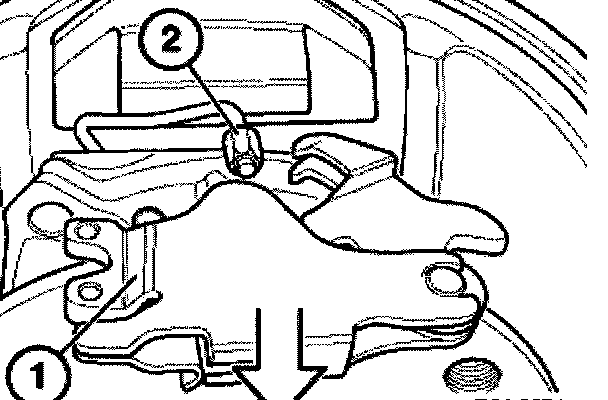

Pull expander lock (1) towards front, unhook handbrake cable (2) and remove expander lock.
