Removing and Installing/Replacing Headliner For Sun-Roof Lid

54 12 132 Removing And Installing/Replacing Headliner For Sun-roof Lid

Installation:
If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.
Remove sun-roof lid.

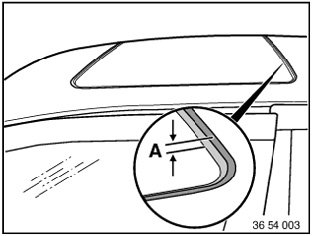

The mechanism must be lowered at the back by dimension (A). If necessary, lower as with the installed slide/tilt sunroof cover.
Distance (A) = 2 to 3 mm

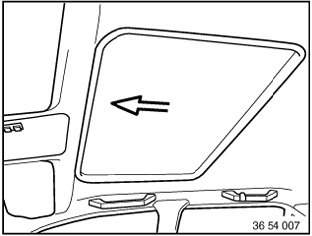

Pull headliner slowly forwards (with clean hands or wearing protective gloves).

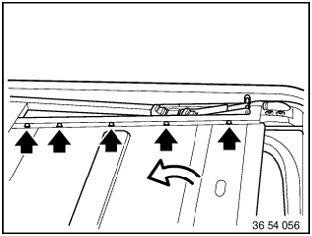

Unfasten left/right Torx screws and pull headliner forwards/upwards to remove.

NOTE: After dismantling the headliner, do not move the mechanism, otherwise the bending/fulcrum pad slides backwards.
