Removing and Installing Rear Glass Slide/Tilt Sunroof Cover

54 10 175 Removing And Installing Rear Glass Slide/Tilt Sunroof Cover

NOTE:
- The following steps can be carried out inside the vehicle with the glass roof panel fully closed.
- Open floating roofliner fully.
- Make sure that grease at the ends of the rail do not come into contact with the roofliner.

Not necessary for replacement:
Before removing the Torx screws, make a mark around the washers in order to ensure correct alignment during installation.

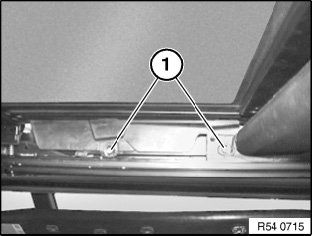

Remove and dispose of the Torx screws (1) securing the glass panel to the mechanism.

Installation:
Insert new Torx screws with Loctite and align washers to markings.
Tightening torque 54 12 01AZ.

IMPORTANT: A second person is required to help in removing and installing the glass slide/tilt sunroof lid.

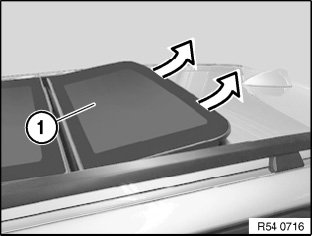

Lift out glass slide/tilt sunroof cover (1).

Installation:
Tape off complete edge area at roof aperture with fabric adhesive tape (risk of damage).
Install glass slide/tilt sunroof cover carefully (twist in) as seal can be damaged during installation.
Check glass slide/tilt sunroof cover for correct alignment and adjust if necessary.
