Removing and Installing Front Glass Slide/Tilt Sunroof Cover

54 10 170 Removing And Installing Front Glass Slide/Tilt Sunroof Cover

Necessary preliminary tasks:
- Remove gaiter

NOTE:
- The following steps can be carried out inside the vehicle with the glass roof panel fully closed.
- Open floating roofliner fully.
- Make sure that grease at the ends of the rail do not come into contact with the roofliner.

Not necessary for replacement:
Before removing the Torx screws, make a mark around the washers in order to ensure correct alignment during installation.

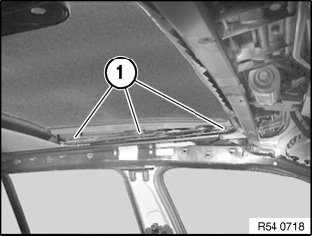

Remove and dispose of the Torx screws (1) securing the glass cover to the mechanism.

Installation:
Insert new Torx screws with Loctite and align washers to markings.

1AZ Glass lid to gate 4 ± 0.5 Nm
Note: Always use new nuts and bolts.

IMPORTANT: A second person is required to help in removing and installing the glass slide/tilt sunroof lid.

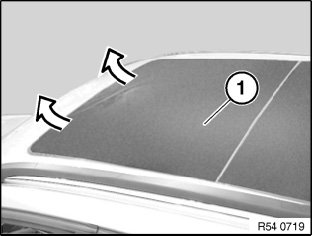

Lift out glass slide/tilt sunroof cover (1).

Installation:
Tape off installation area on left and right at roof aperture with fabric adhesive tape.
Install glass slide/tilt sunroof cover carefully (twist in) as seal can be damaged during installation.
Check glass slide/tilt sunroof cover for correct alignment and adjust if necessary.
