Removing and Installing / Replacing Headliner For Glass Slide/Tilt Sunroof Cover

54 12 136 Removing And Installing / Replacing Headliner For Glass Slide/tilt Sunroof Cover

Installation:
If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.
Removing left and right rubber gaiter for glass slide/tilt sunroof cover.
Move mechanism into zero setting.







Slowly pull headliner forwards as far as it will go.







Unfasten left/right screws (1).

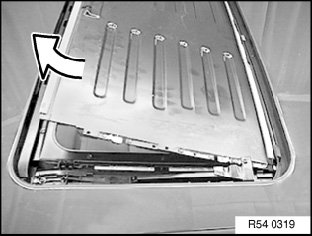

Lift headliner upwards to remove.







Installation:

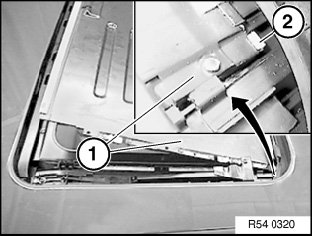

Insert headliner (1) in support (2) from behind/left.
