Front Output Shafts

Front Output Shafts

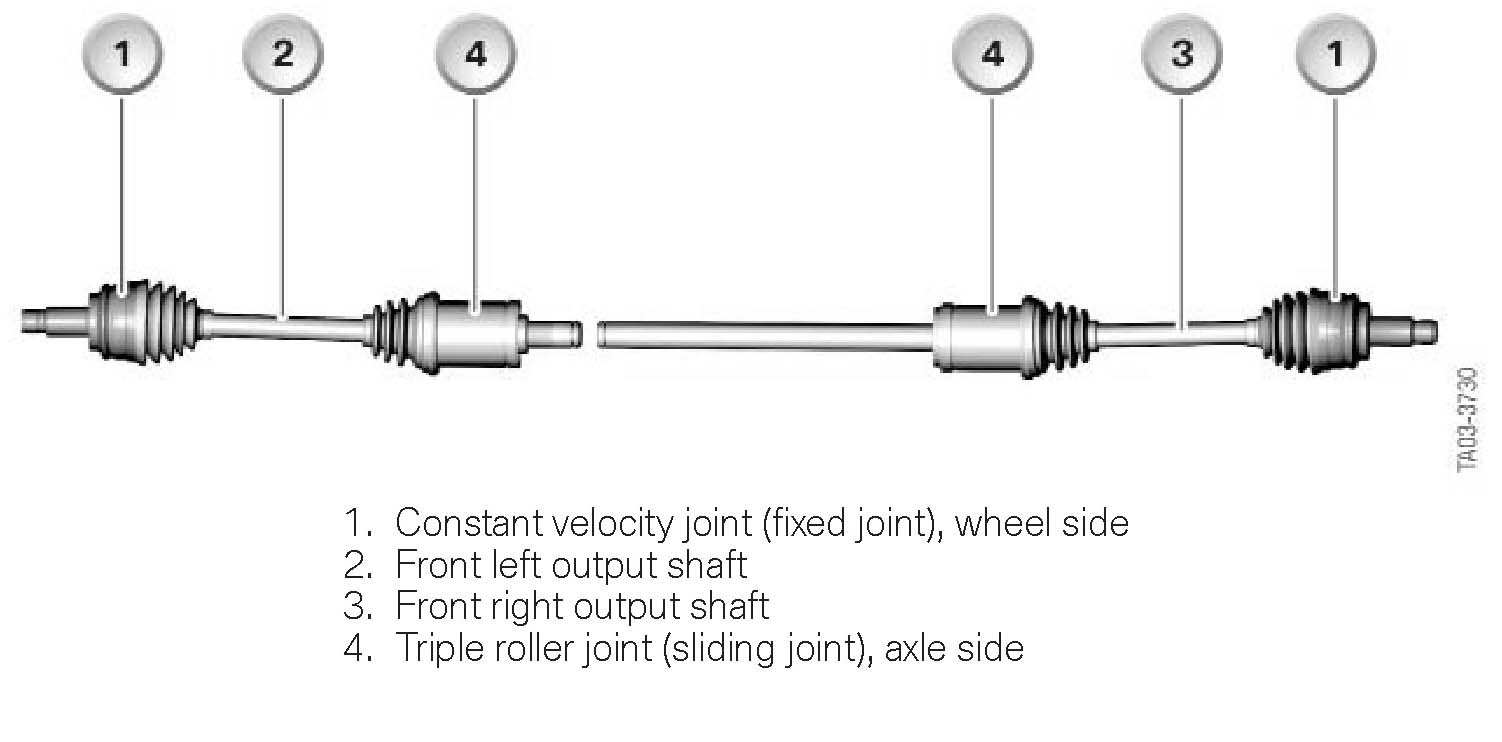

The locking angle of wheel side fixed joint (1) is 50°. The axle side joint (4) slides to compensate for differences in length caused by suspension/axle movements.
