Replacing Right Engine Mount (M54)

22 11 001 - Replacing right engine mount (M54)





Necessary preliminary tasks:
- Remove reinforcement plate Specifications.
- Release engine mounts on left and right from above. Tightening torque 22 11 1AZ/2AZ Specifications.
- Raise engine approx. 30 mm.
Operation is described in Securing engine in installation position Securing Engine In Installation Position (M54).





Release screws (1) and remove engine mount.
Tightening torque 22 11 1AZ Specifications.

Installation:
Ensure correct position of heat shield.





Installation:

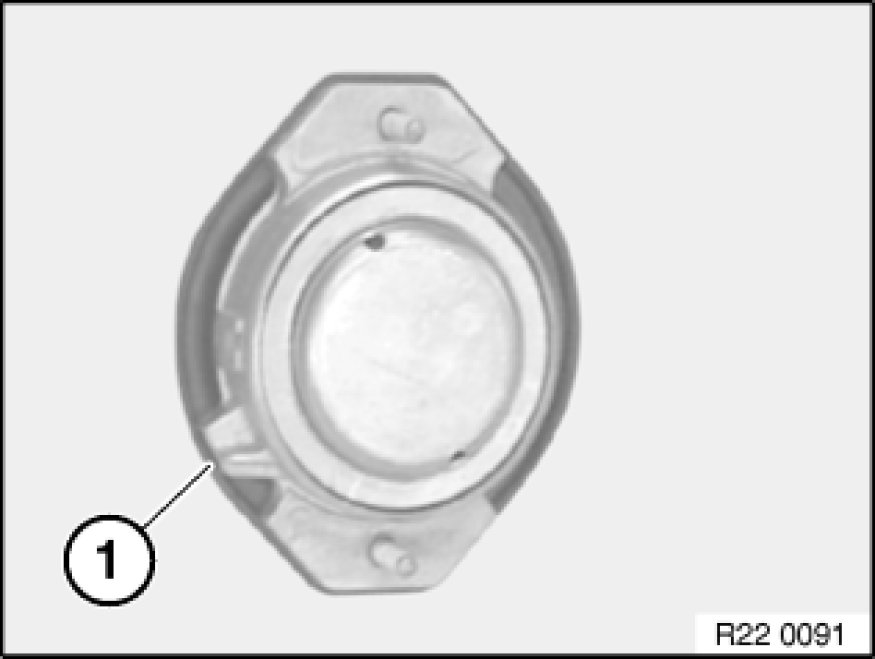

Lug (1) of engine mount must point to middle of vehicle.

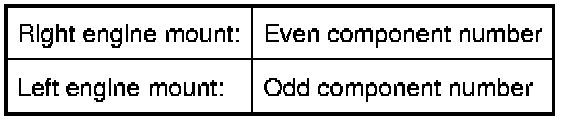

Engine mount designations:
