Replacing Left Engine Support Arm (M54)




22 11 110 - Replacing left engine support arm (M54)





Necessary preliminary tasks:
- Secure engine in installation position.
- Remove reinforcement plate Service and Repair.
- Remove oil dipstick guide tube Service and Repair.

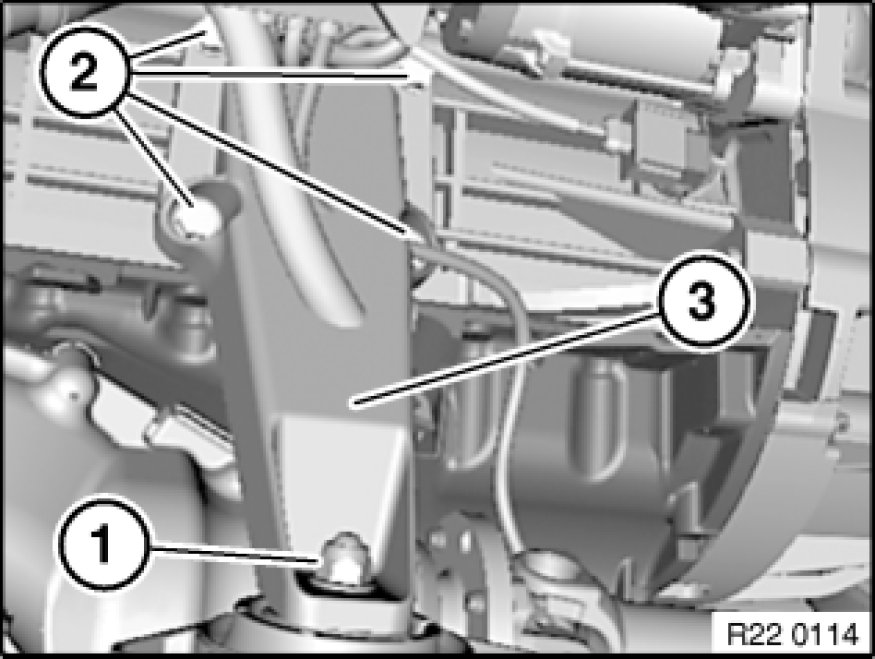

Release nut (1) and screws (2).
Remove engine support arm (3).
Tightening torque 22 11 2AZ/ 3AZ Specifications.
