Manufacturer Code Charts

OBD II FAULT CODE LIST

DME

MS 41.1 & MS 41.2 (Siemens)

M5.2 (Bosch)

M5.2.1 (Bosch)

ENGINES

M52, S52, M52 W/ORVR

M44, M62, M73

M62MJ98, M73MJ98

NOTE: The fault code information provided in this text is a supplement to the normal DIS diagnostics and test modules for the systems identified above. A brief explanation of why a particular fault may be set is provided, however it does not contain a list of associated components which can cause the fault to set.

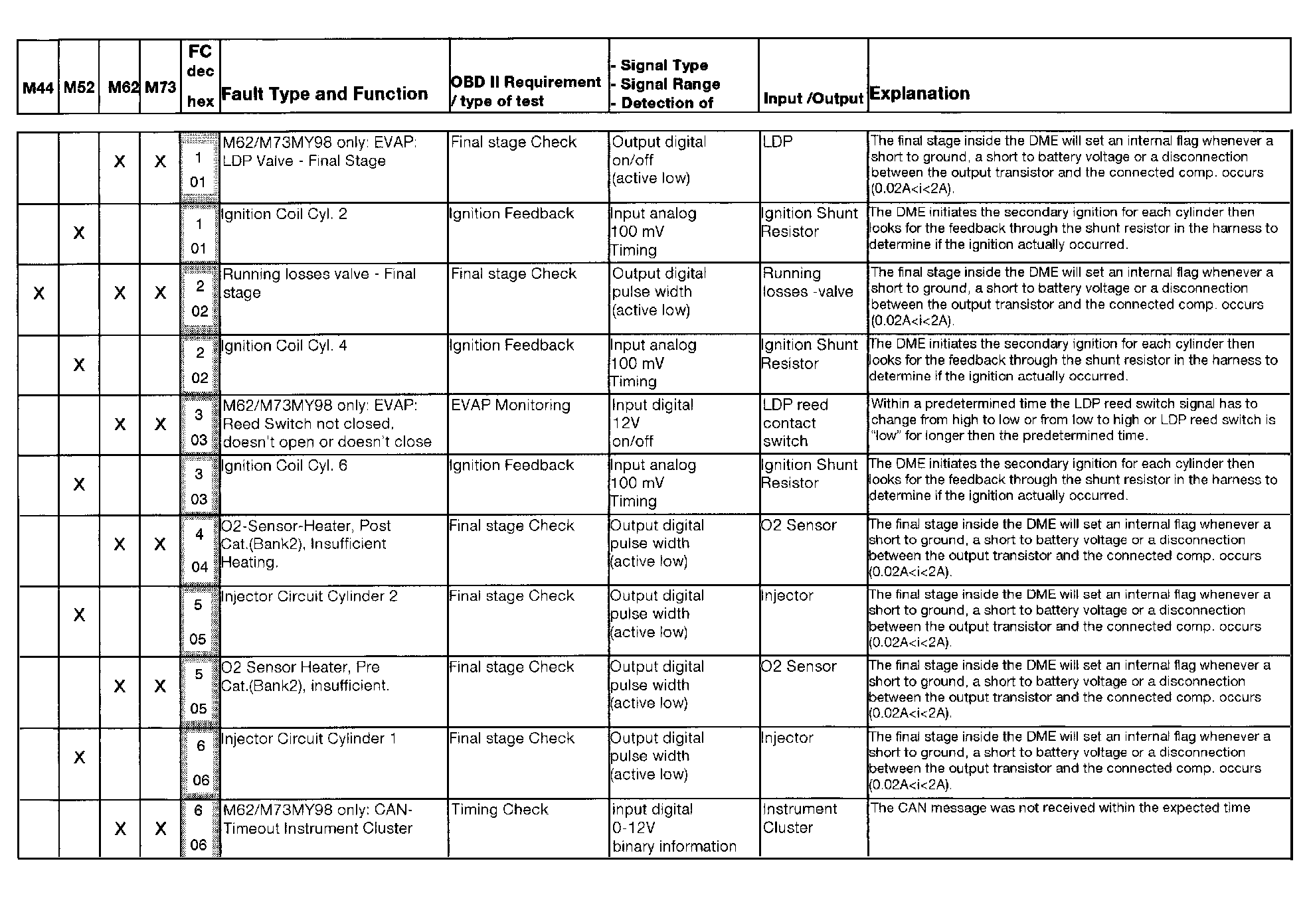

BMW Fault Codes 1-6:

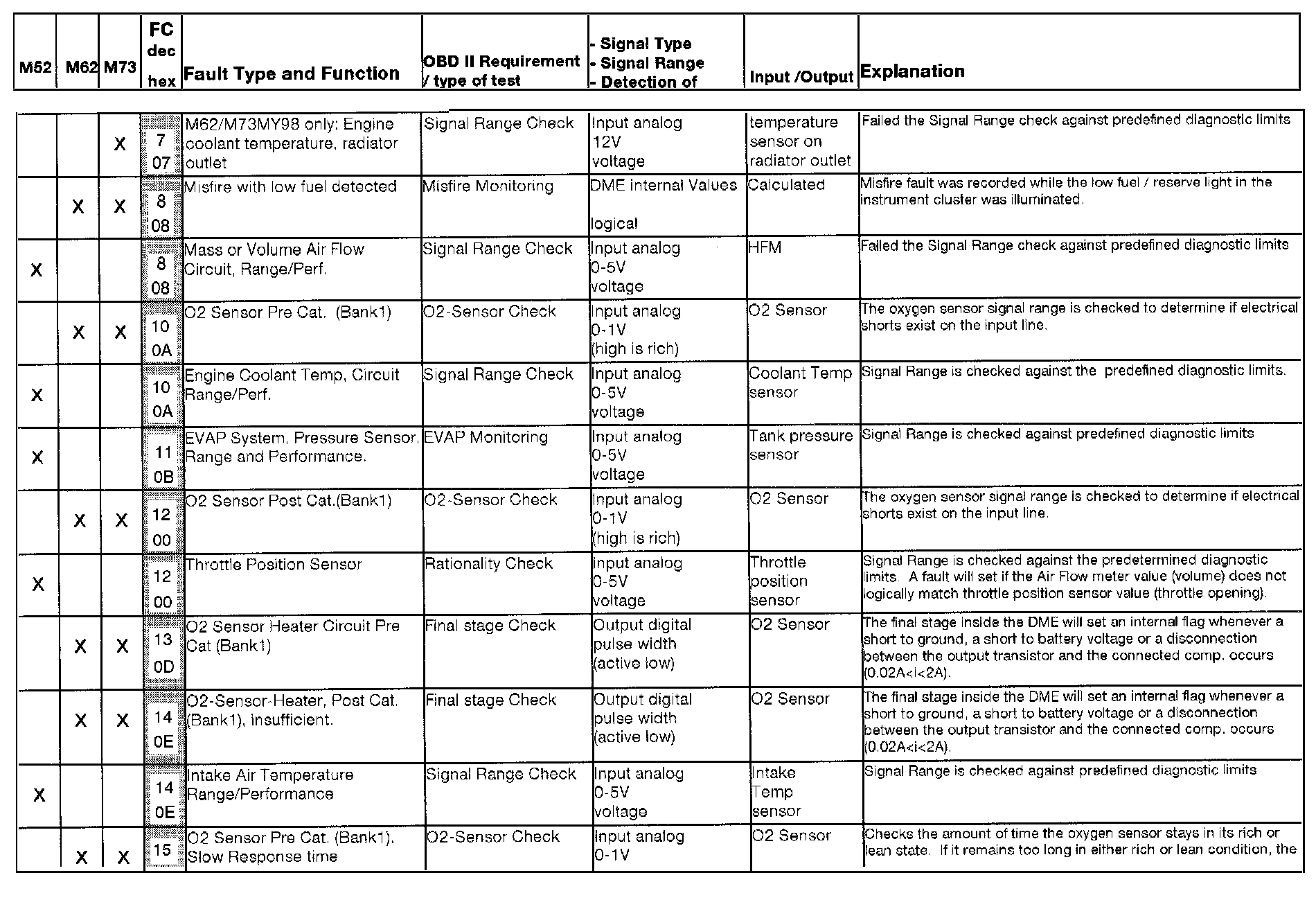

BMW Fault Codes 7-15:

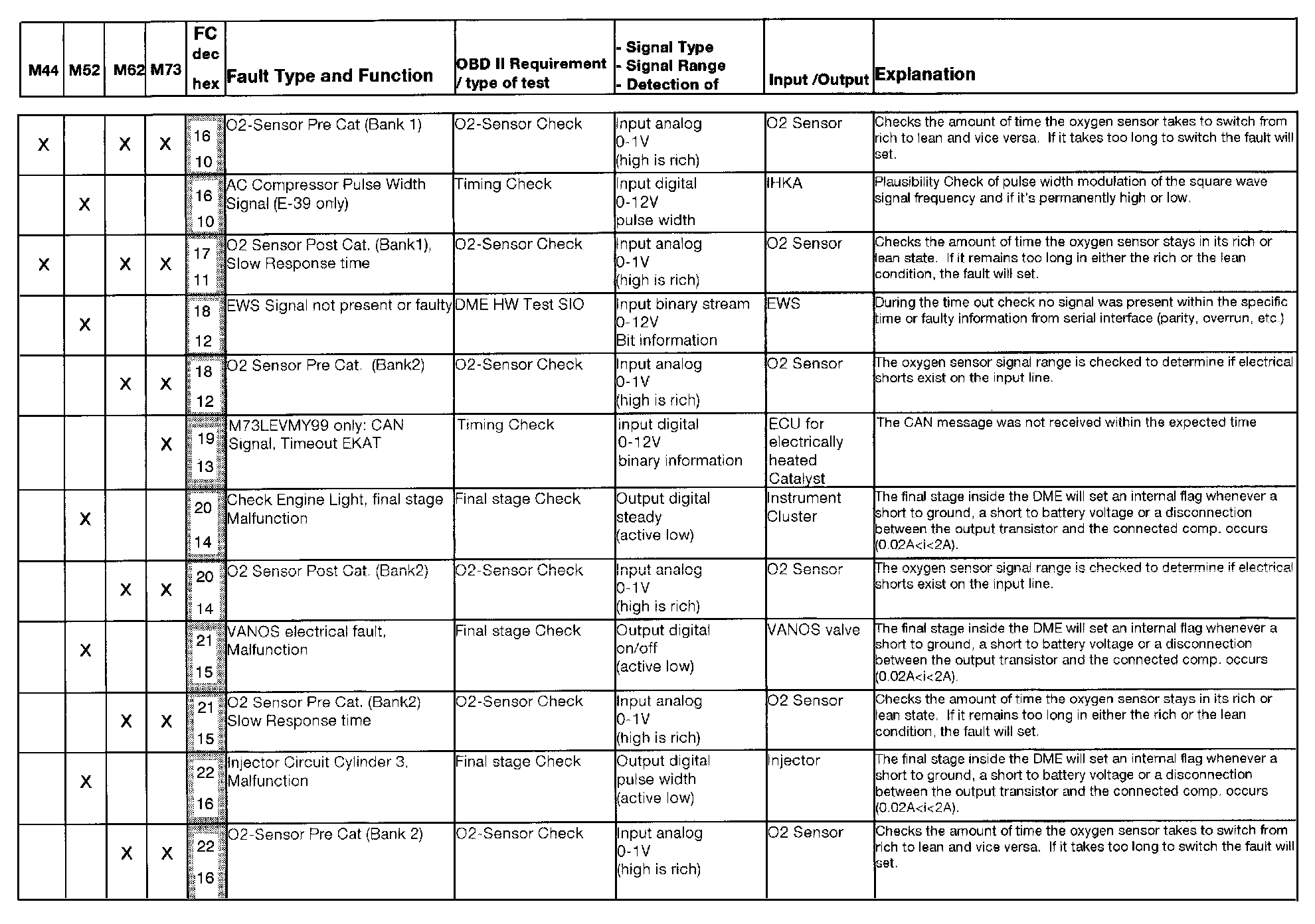

BMW Fault Codes 16-22:

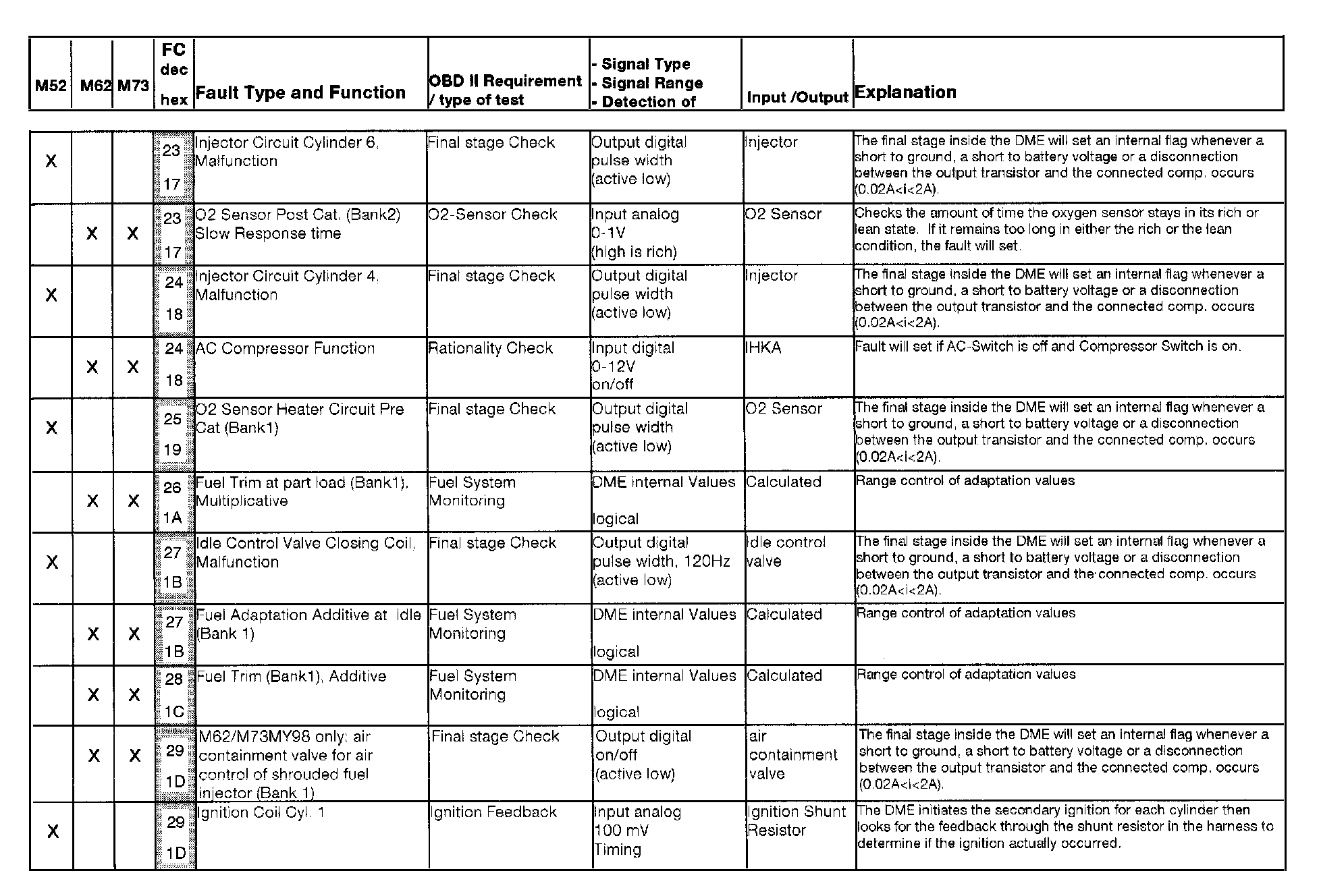

BMW Fault Codes 23-29:

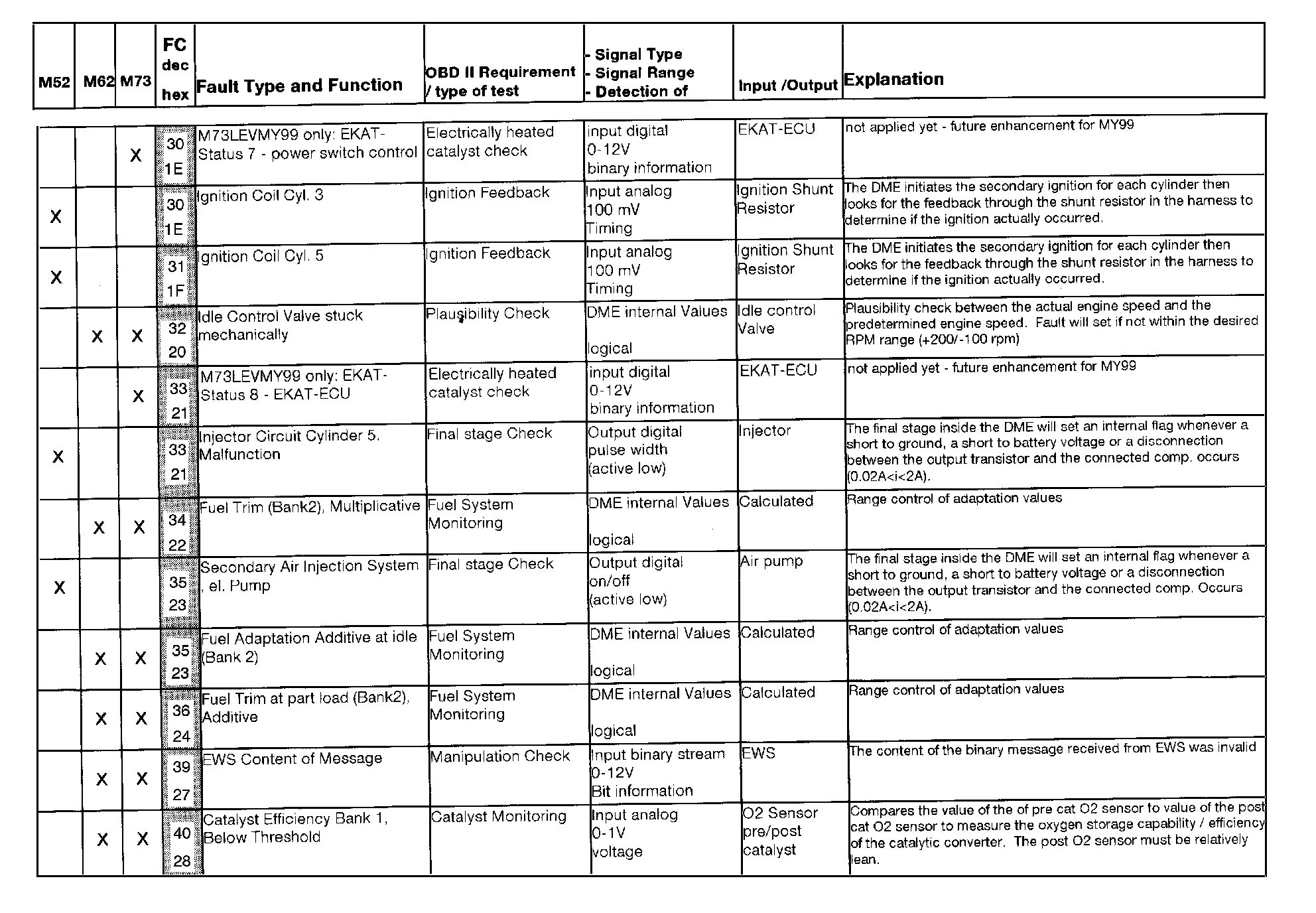

BMW Fault Codes 30-40:

BMW Fault Codes 42-51:

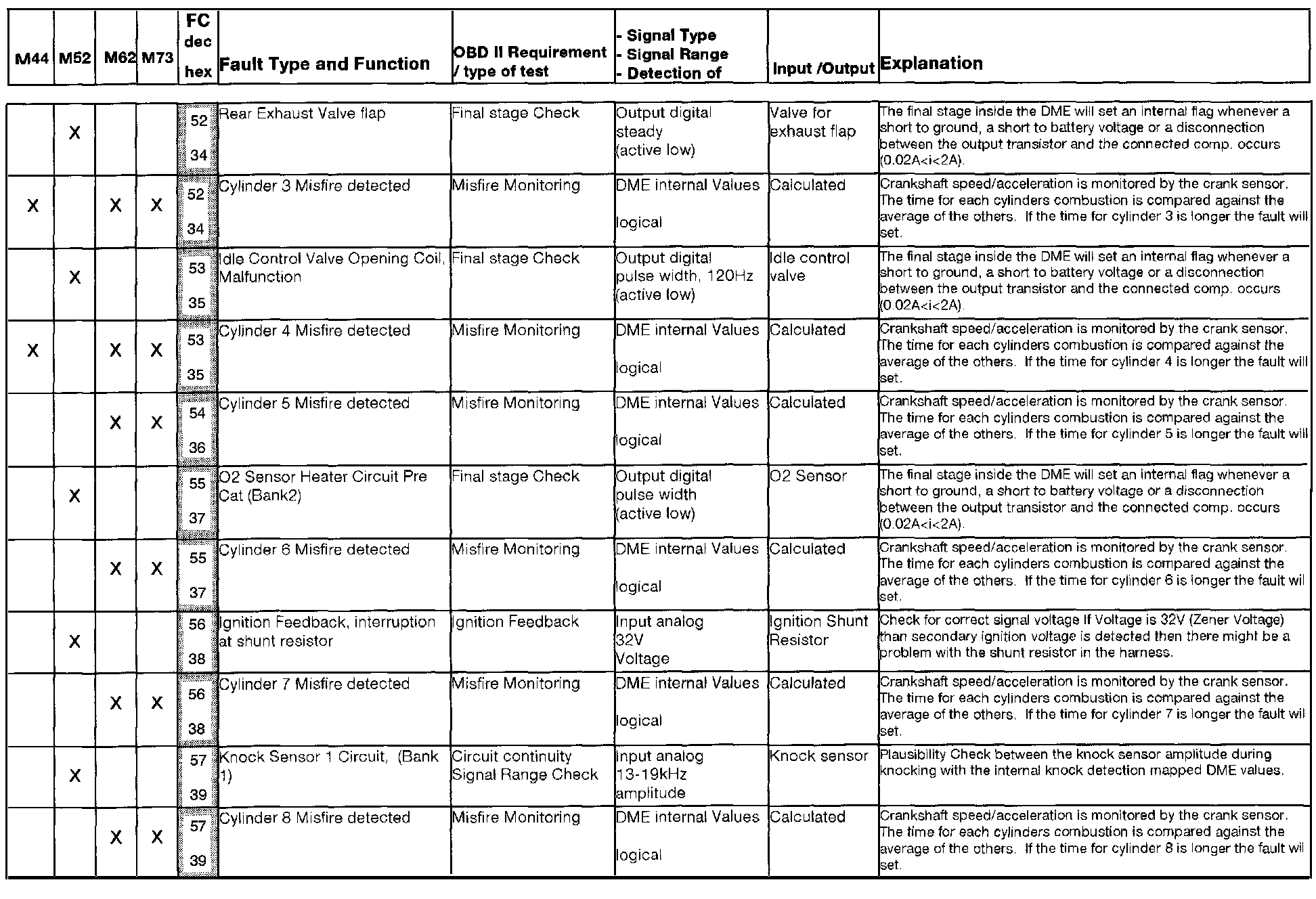

BMW Fault Codes 52-57:

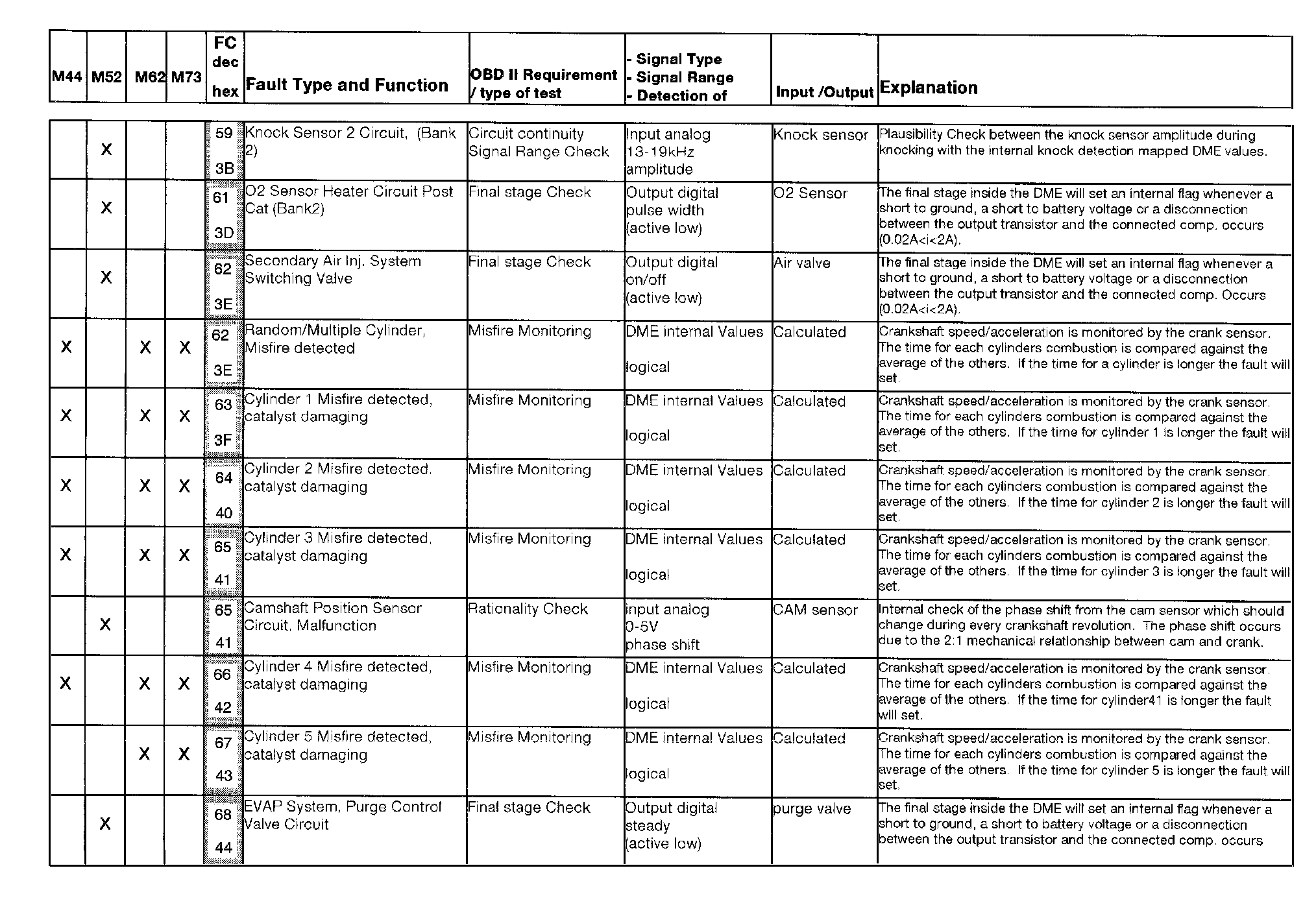

BMW Fault Codes 59-68:

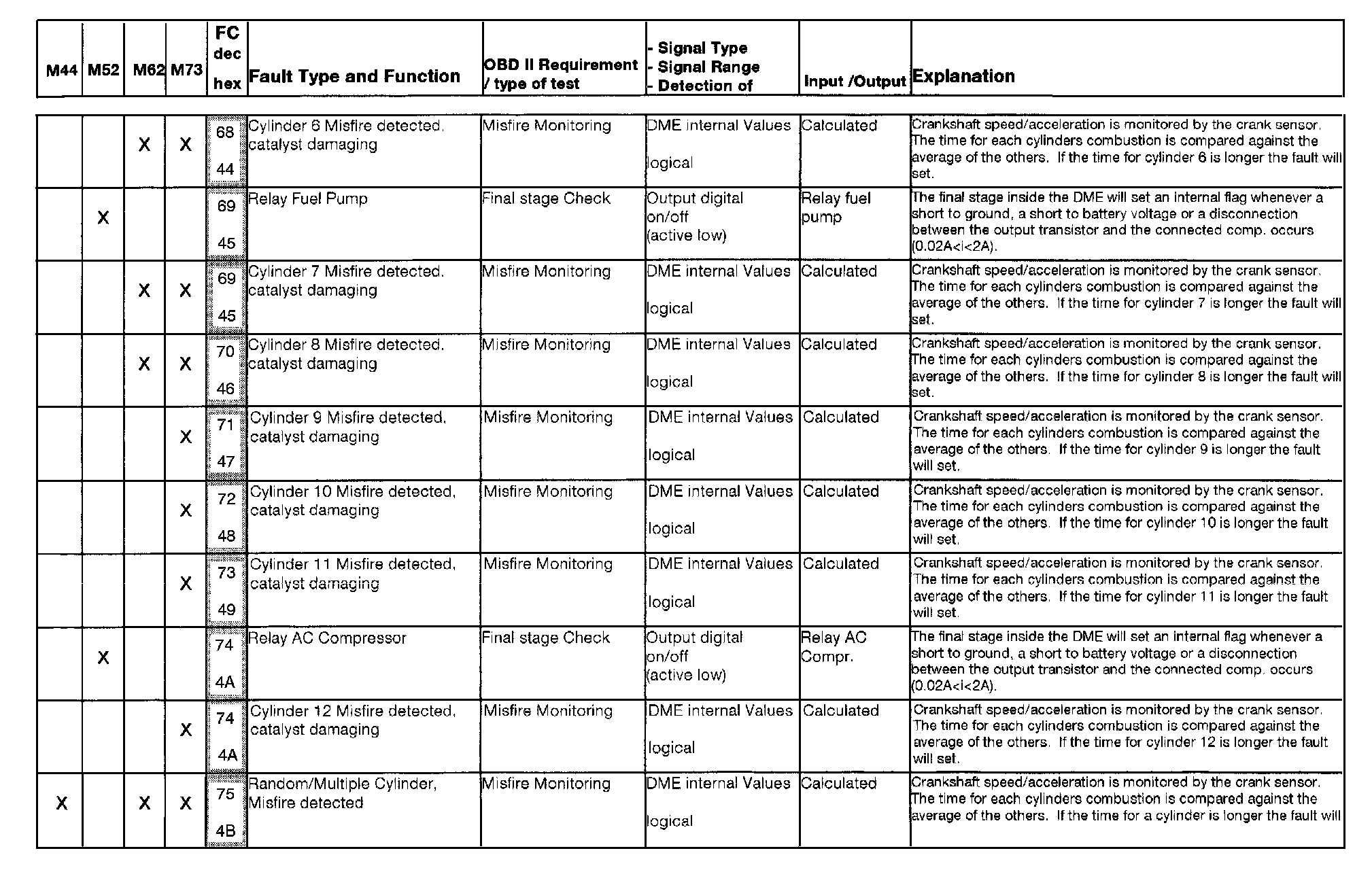

BMW Fault Codes 68-75:

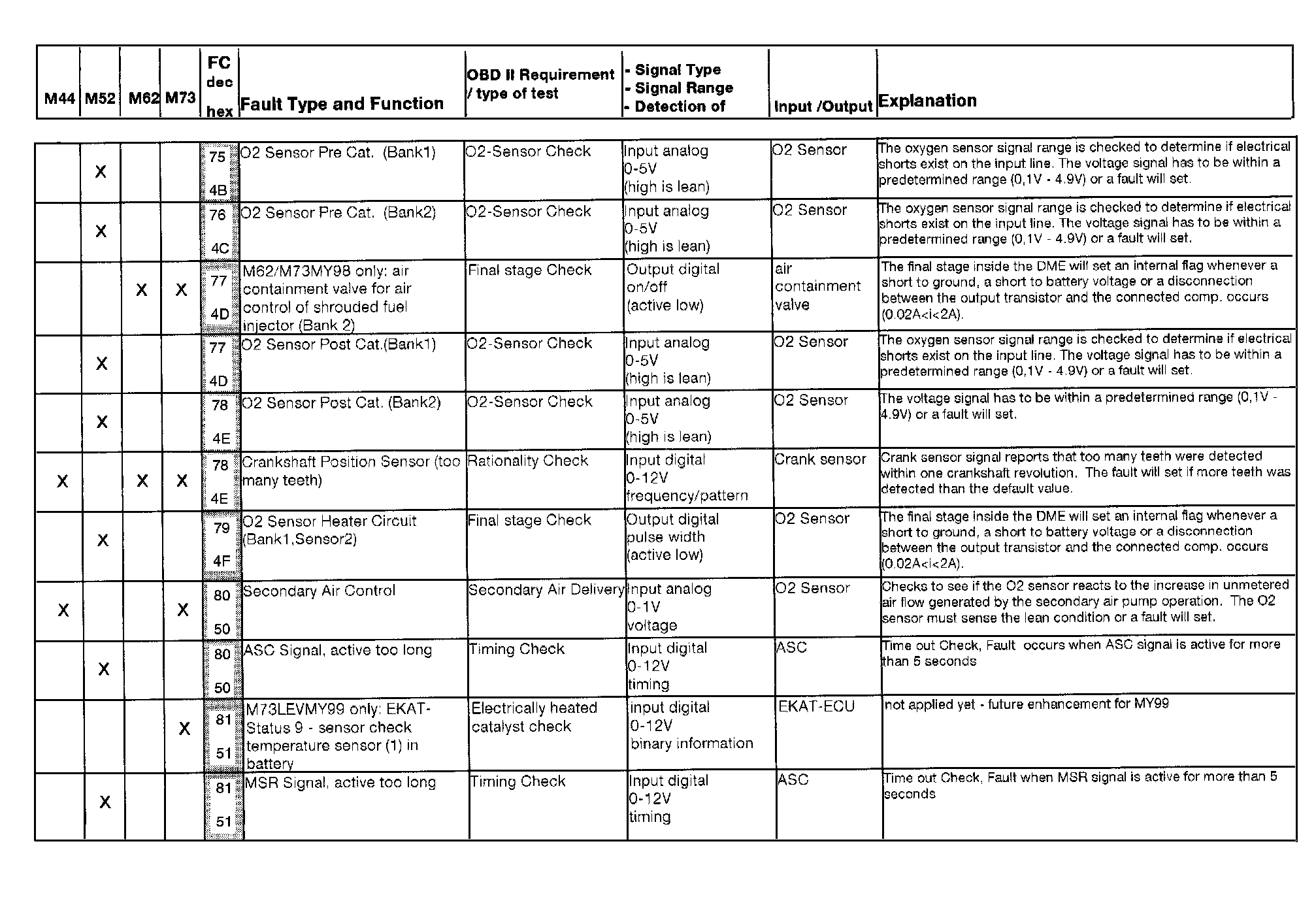

BMW Fault Codes 75-81:

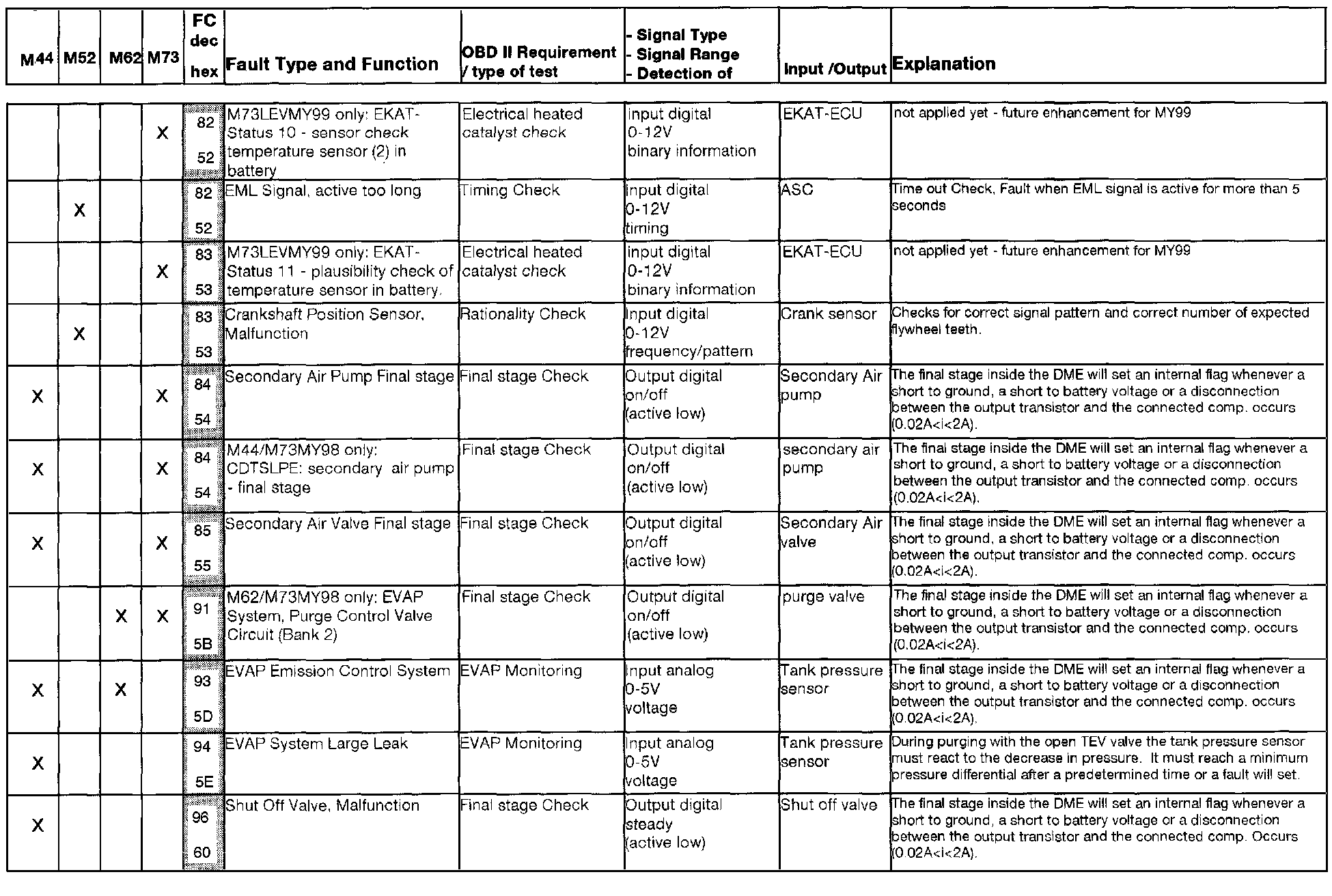

BMW Fault Codes 82-96:

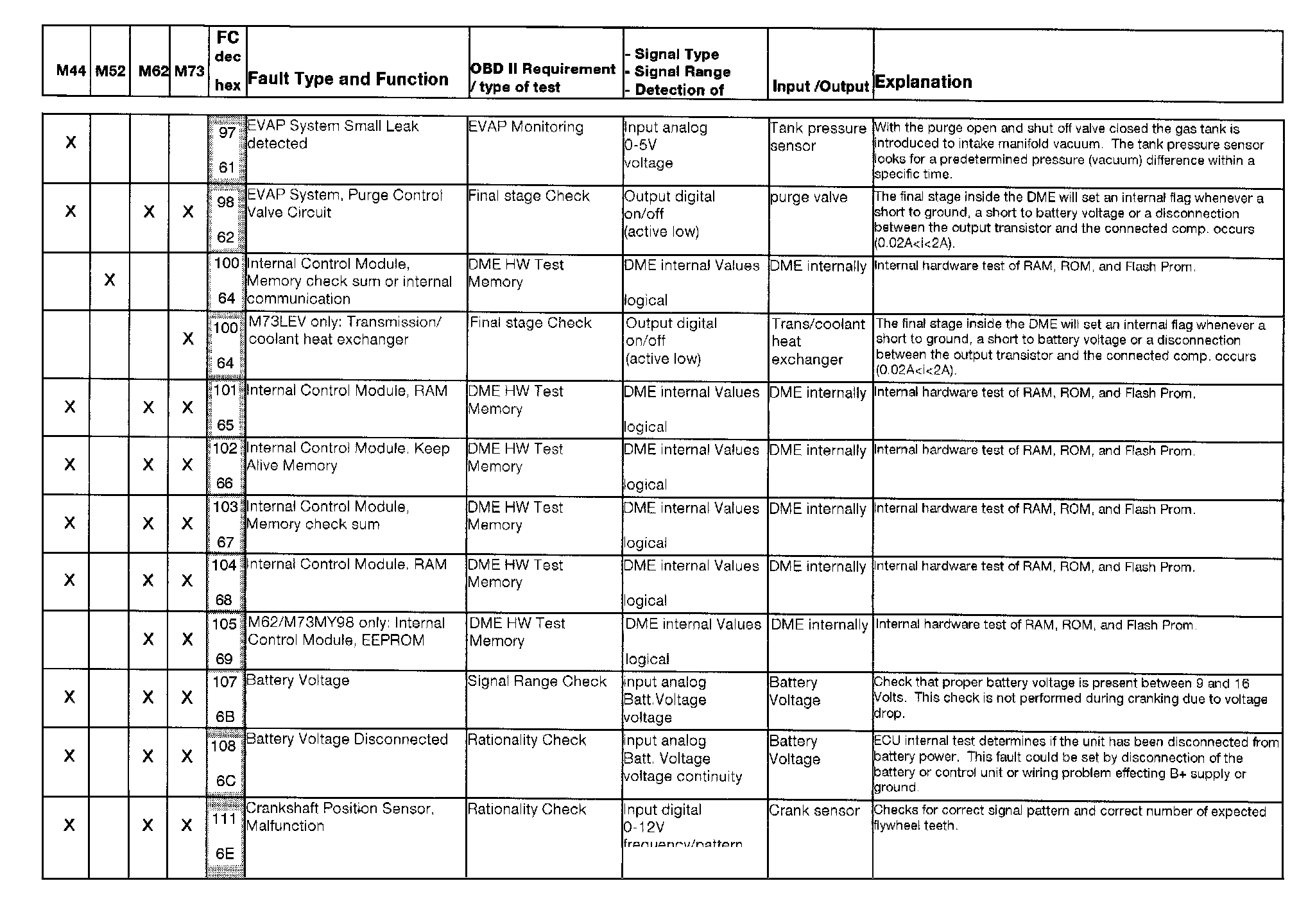

BMW Fault Codes 97-111:

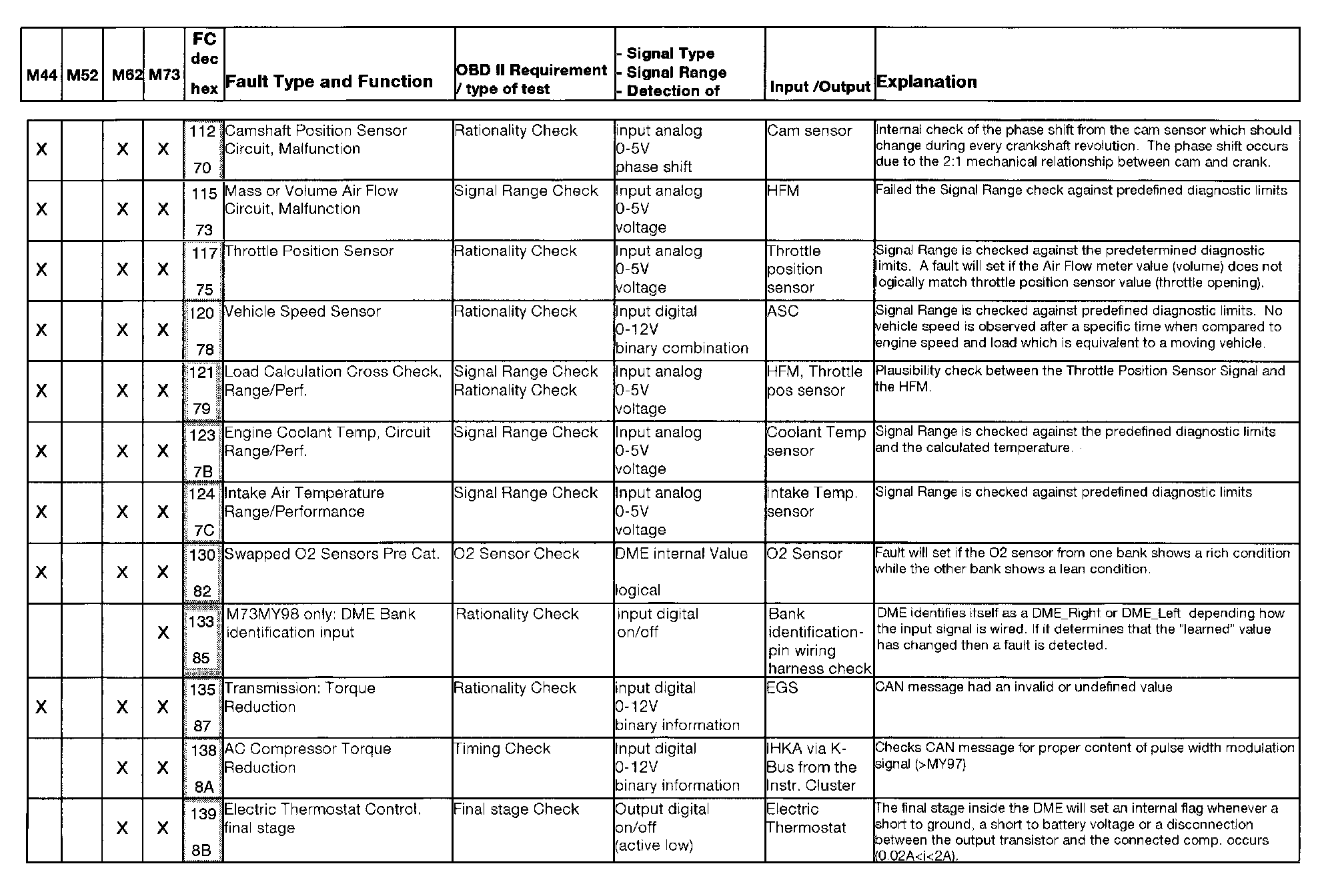

BMW Fault Codes 112-139:

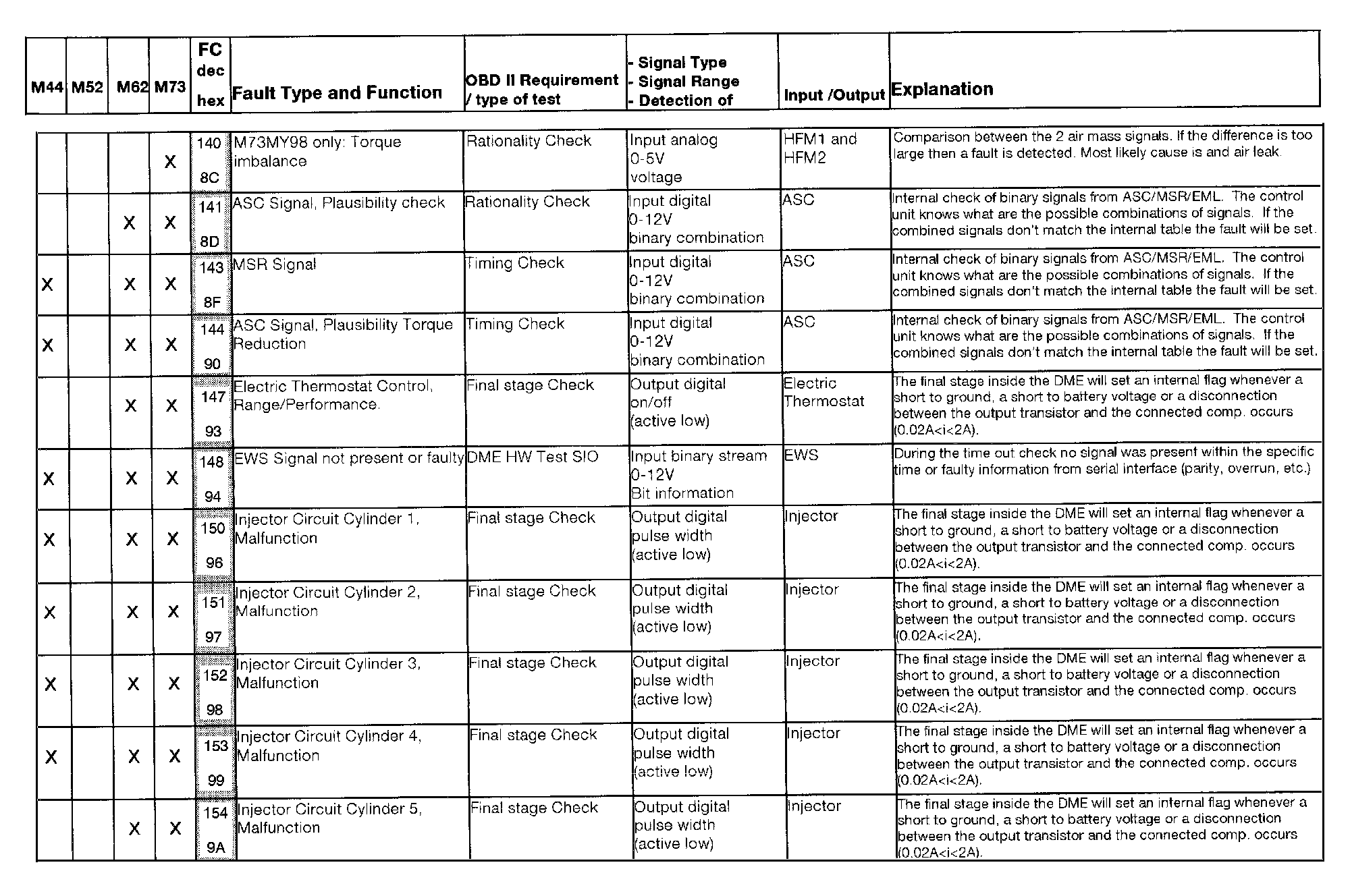

BMW Fault Codes 140-154:

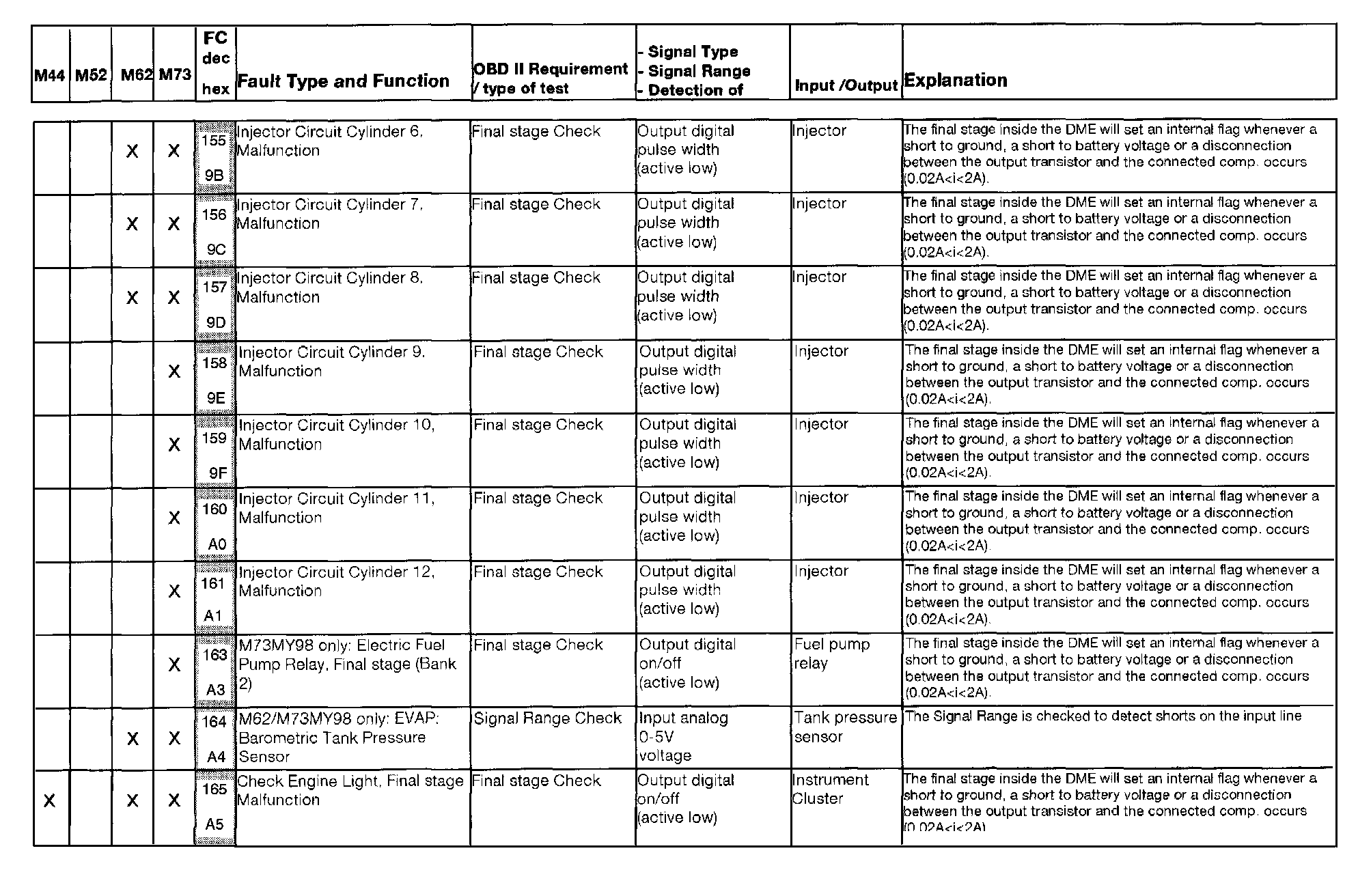

BMW Fault Codes 155-165:

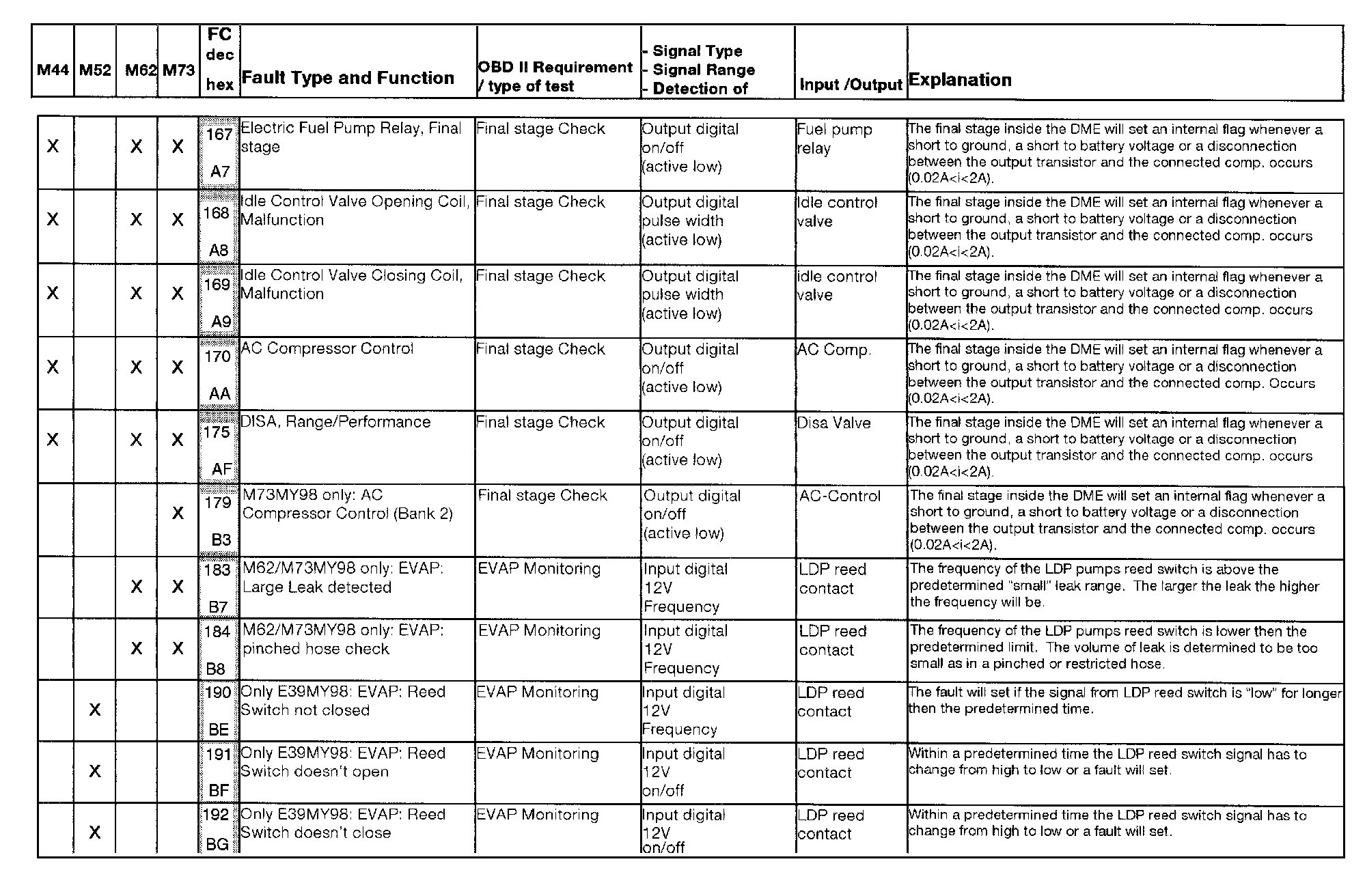

BMW Fault Codes 167-192:

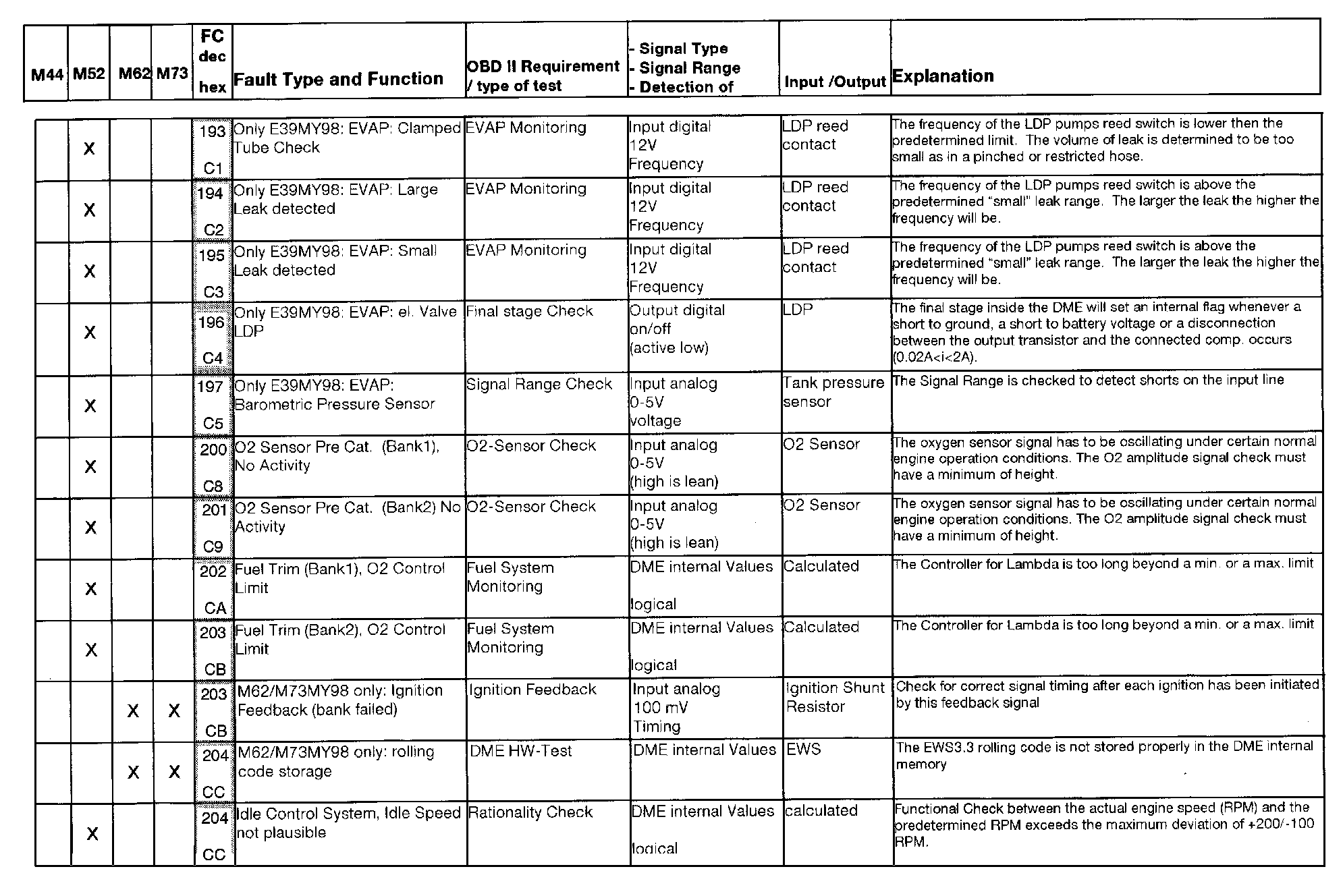

BMW Fault Codes 193-204:

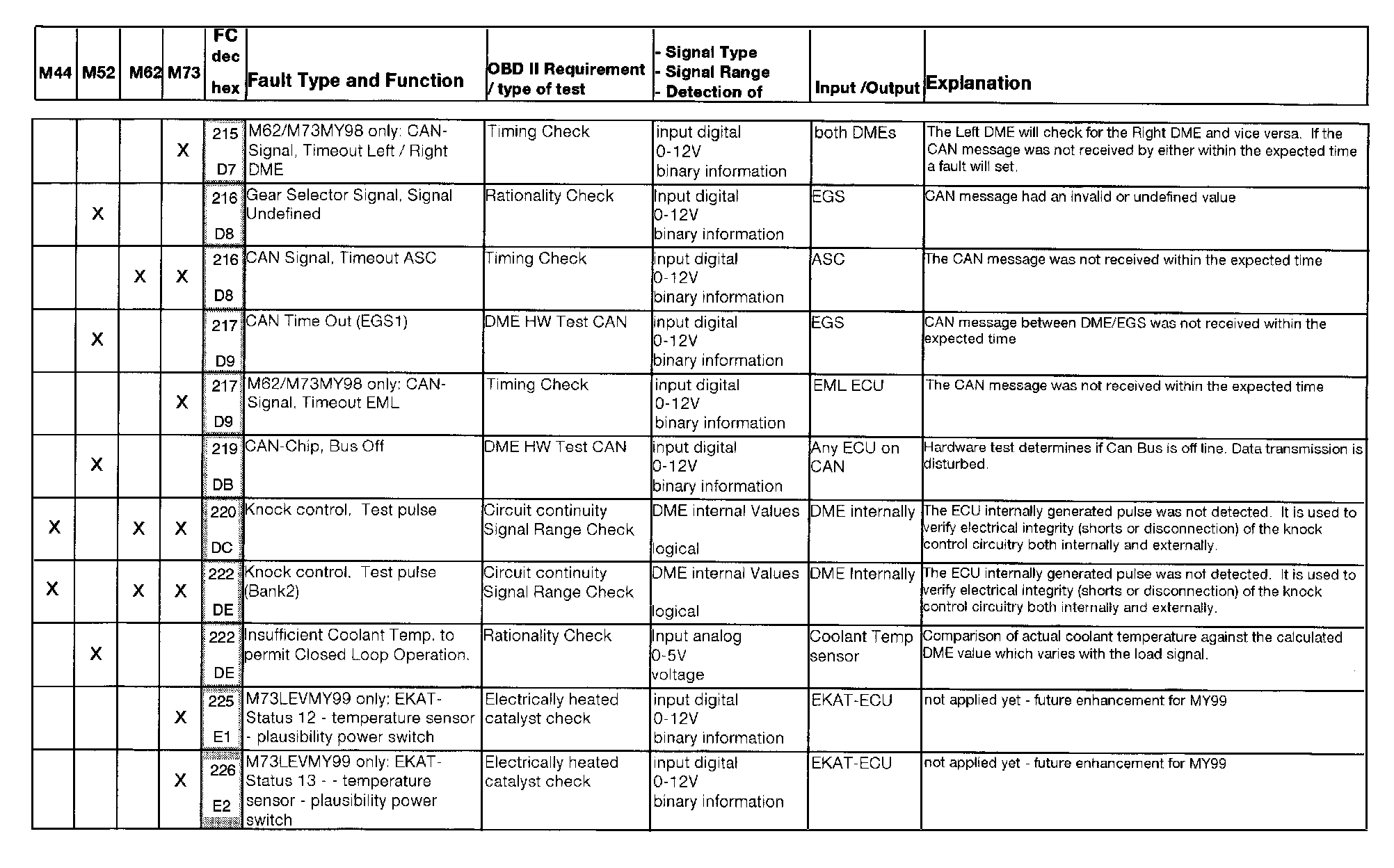

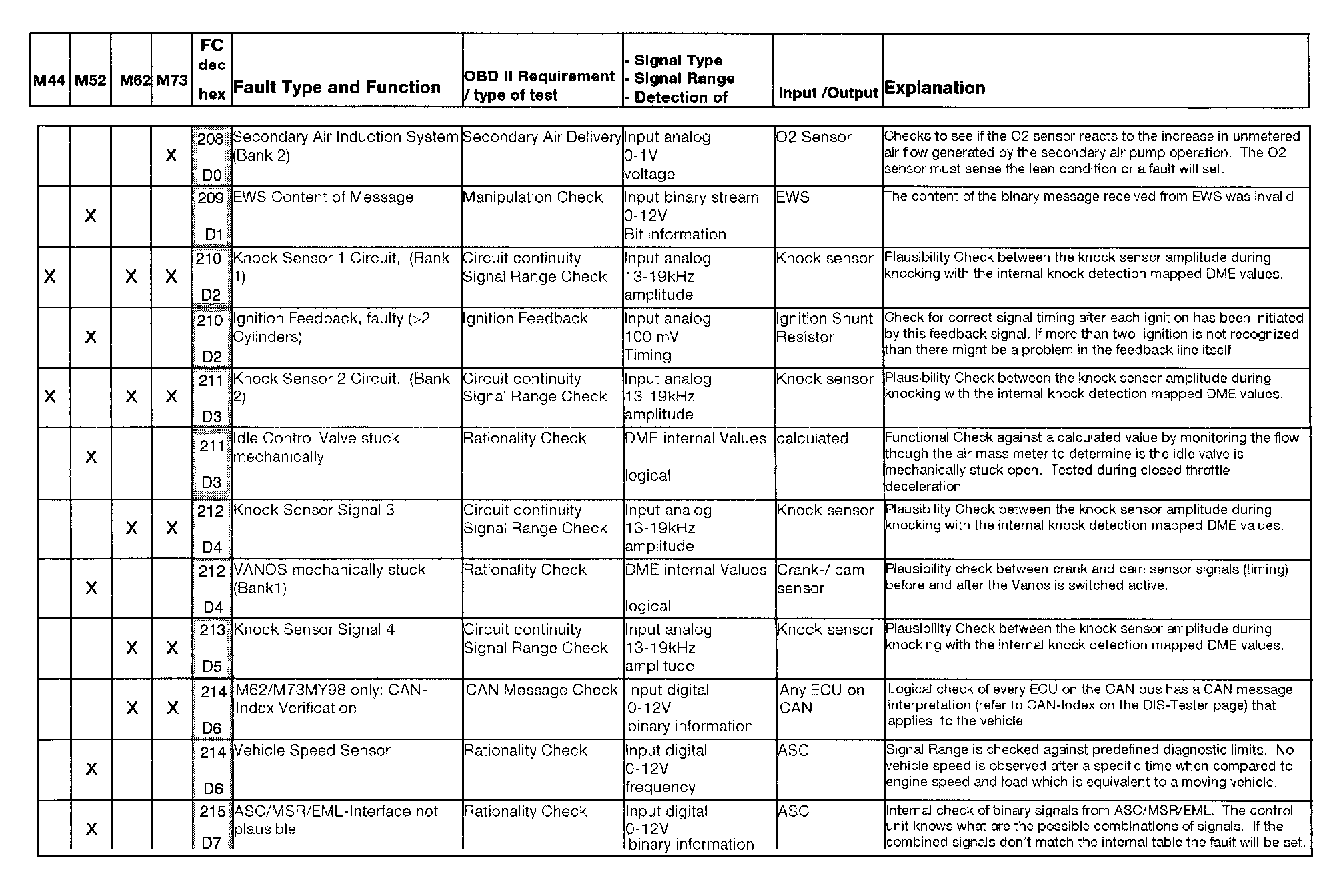

BMW Fault Codes 208-215:

BMW Fault Codes 215-227:

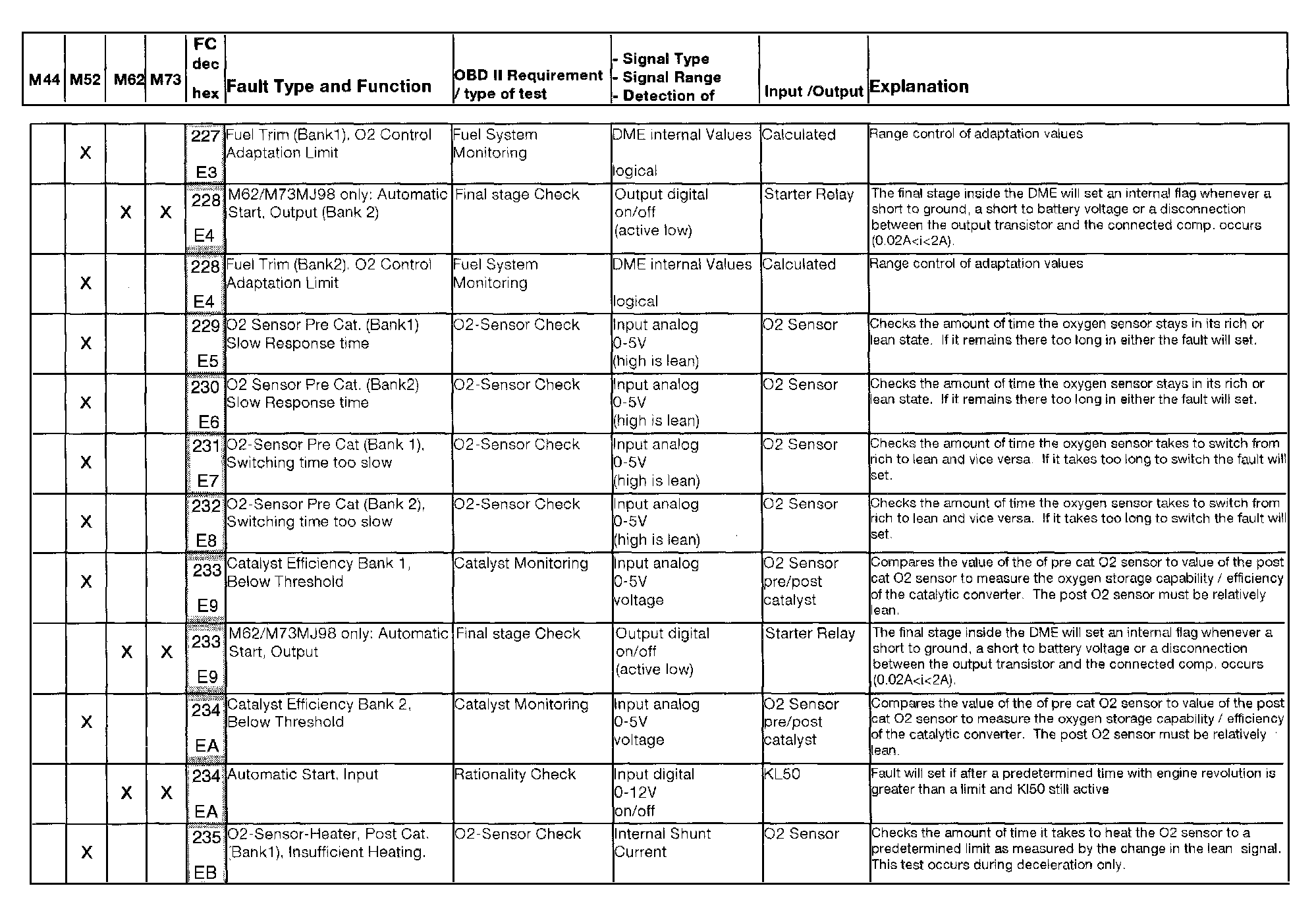

BMW Fault Codes 227-235:

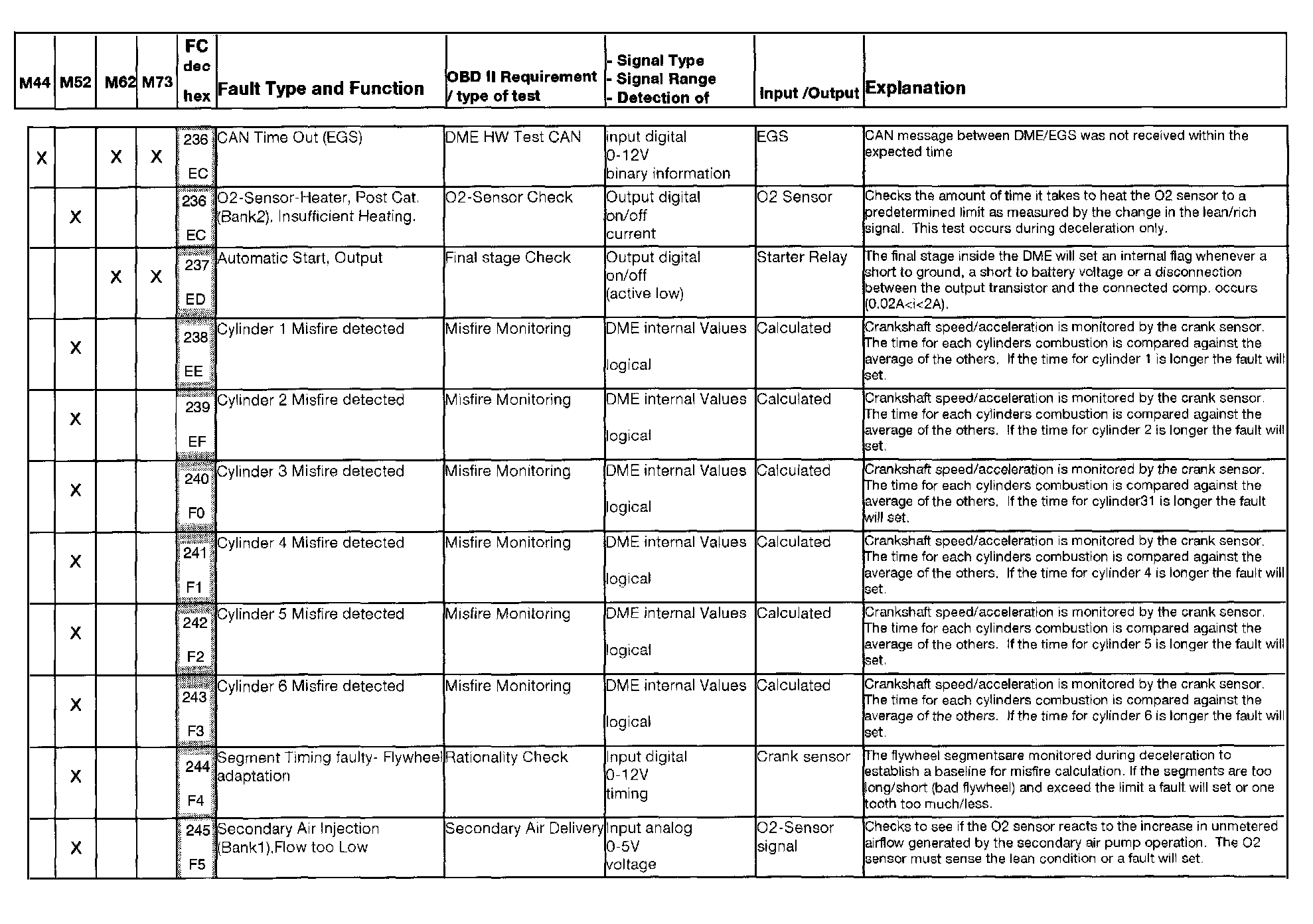

BMW Fault Codes 236-245:

BMW Fault Codes 246-255:
