Procedures
31 33 001 Replacing left or right front spring-strut mountNecessary preliminary tasks:
^ Remove and disassemble front spring strut
After installation:
^ Carry out wheel alignment check if a spring strut with support bearing has been installed without centering pin.
^ Carry out adjustment of steering angle sensor

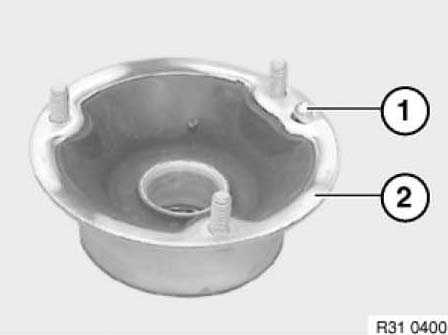

If necessary, drive out centering pin (1).
Note: If a support bearing (2) was fitted without centering pin (1), the centering pin (1) of the new support bearing (2) must be driven out.
