Stabilizer Link: Service and Repair

33 55 040 Replacing stabilizer links for stabilizer





Removing stabilizer link from stabilizer:

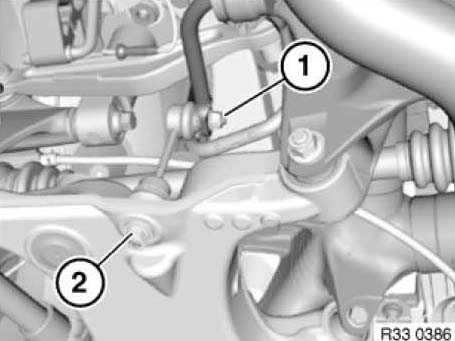

Release nut (1); if necessary, grip at Torx socket.
Remove stabilizer link from stabilizer.

Installation:
Tightening torque; Stabilizer link on anti-roll bar/swinging arm 100 Nm
Replace self-locking nut.

Removing stabilizer link from swinging arm:
Release nut (2); if necessary, grip at Torx socket.

Installation:
Tightening torque; Stabilizer link on anti-roll bar/swinging arm 100 Nm
Replace self-locking nut.

Remove stabilizer link from swinging arm.
