Front Axle

31 35 021 Replacing rubber mounts of stabilizer retaining fixture on front axle support

Necessary preliminary tasks:
^ Remove front underbody protection





Only on right side:

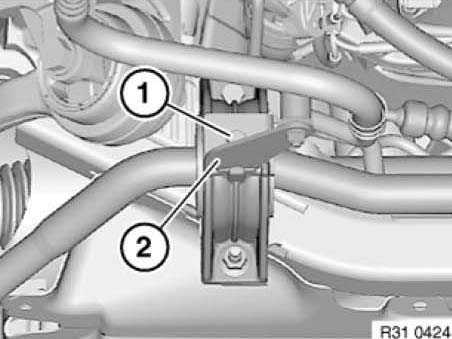

Release screw (1).
Tightening torque; Bracket, pressure line to stabilizer bar mounting 12 Nm
Lay bracket (2) with power steering pressure line to one side.

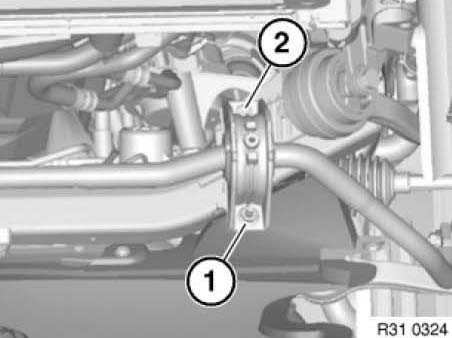

Release nut (1) and screw (2) at both ends.
Turn stabilizer towards front.
Remove retaining bracket and rubber mount on both sides.

Installation:
Tightening torque Retaining bar for stabilizer bar to front axle carrier or to body 31 Nm
Replace self-locking nuts.
Keep stabilizer and rubber mount free from grease.
