Replacing Holder For Push Rod Stabilizer

31 35 007 Removing and installing/replacing holder for left or right push/rod /stabilizer

Necessary preliminary tasks:
^ Remove front wheel

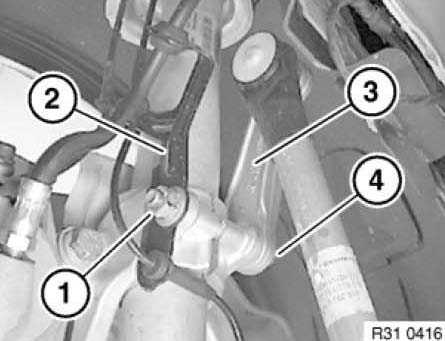

Remove stabilizer link from holder (1).
Unscrew bolt (2).

Tightening torque; Bracket for stabilizer link on swivel bearing 59 Nm





Unscrew nut (1).
Remove holder (2) for brake hose, brake pad sensor and pulse generator.

Remove screw (4) with holder (3) towards front.

Installation:
Tightening torque; Spring strut shock absorber to pivot mount 81 Nm
Replace self-locking nut.
