Replacing Left or Right Rear Axle Carrier Tension Strut

33 33 001 Replacing left or right rear axle carrier tension strut
Necessary preliminary tasks:
^ If necessary, remove tank cover
^ Convertible only: Remove rear tension strut





Right side only in version with Dynamic Drive:
Unscrew nut (1).
Tightening torque holder 8 Nm.
Remove pressure lines from rubber mount.

Warning: Support front area of rear differential with workshop jack.

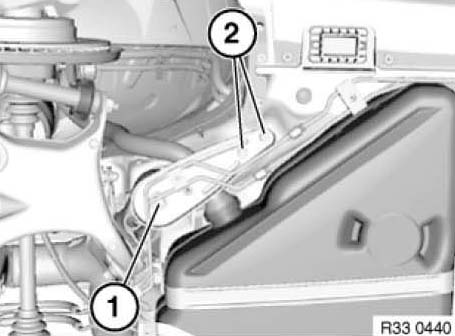

Support front area of rear differential with workshop jack. Release screw (1).
Tightening torque 165 Nm.
Release screws (2).
Tightening torque:
M8 8.8 21 Nm.
M8 10.9 30 Nm.
M10 10.9 E60 38 Nm.
M10 10.9 E63, E64 45 Nm.


Remove tension strut sideways.
Secure rear axle carrier by inserting bolts (1).
If necessary, lower workshop jack and slide to one side.
