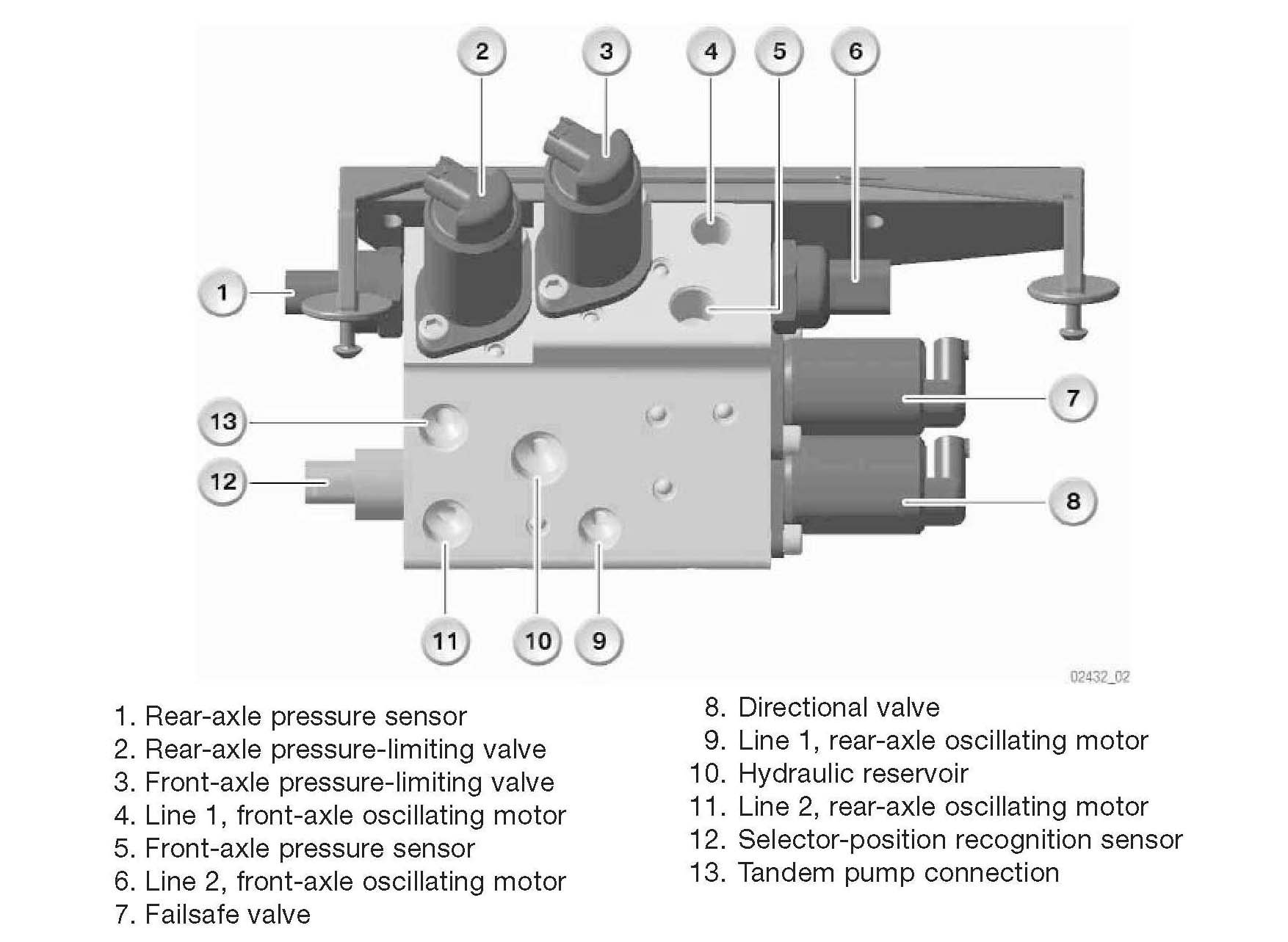

Valve Block

Valve Block





The valve block is located on the floor plate behind the front right wheelarch trim.
