Front Axle Stabilizer Bar

Front Axle Stabilizer Bar

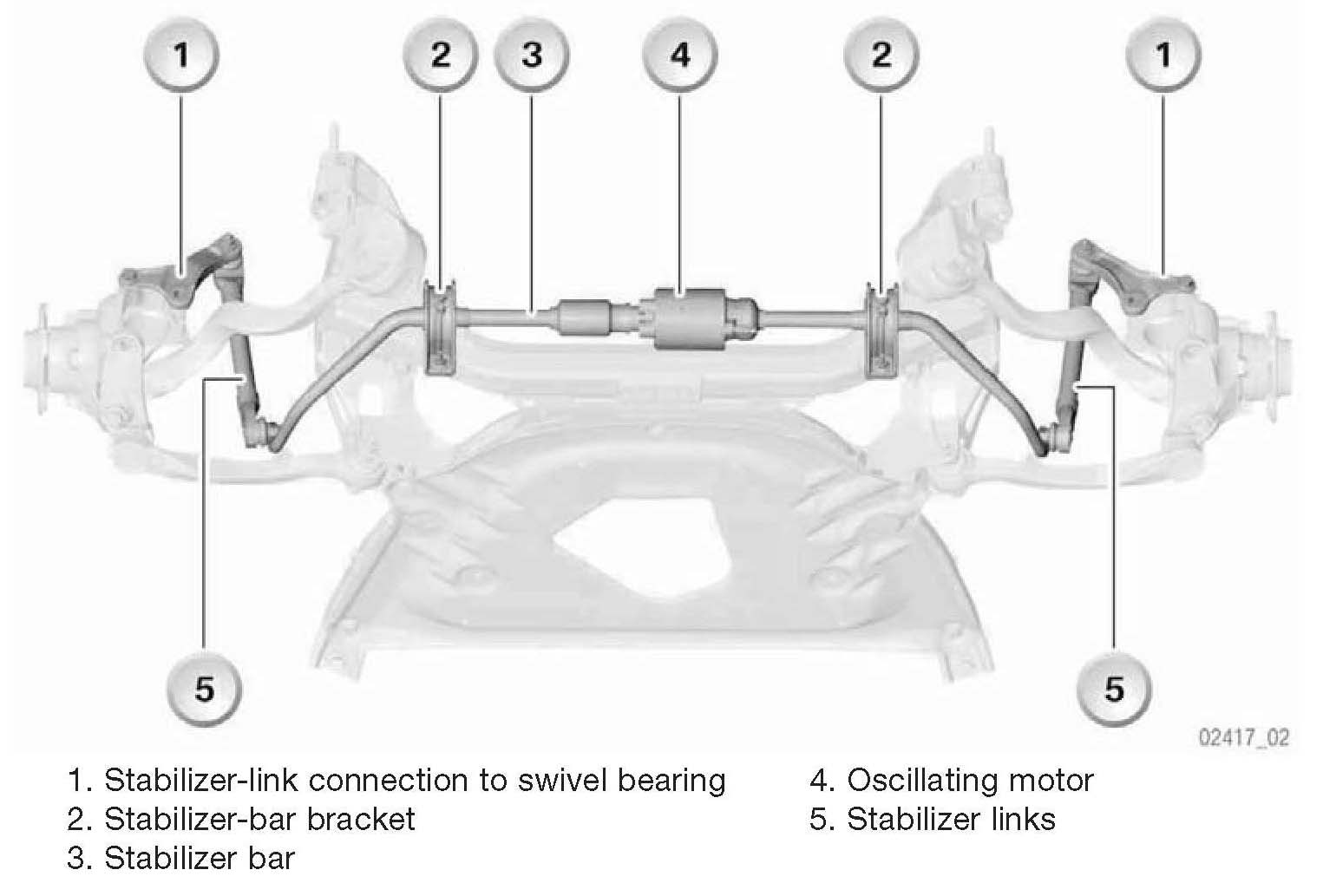

The stabilizer bar is mounted on the front axle carrier. The stabilizer links are connected to the goosenecks of the swivel bearings.
