Replacing Fixture For Steering Column Stalk - II

Removing And Installing (Replacing) Fixture For Steering Column Stalk

Necessary preliminary tasks:
- Remove top section of steering column casing.
- If necessary, remove deformation element for steering column trim.

NOTE: Comply with notes and instructions on handling optical waveguides.

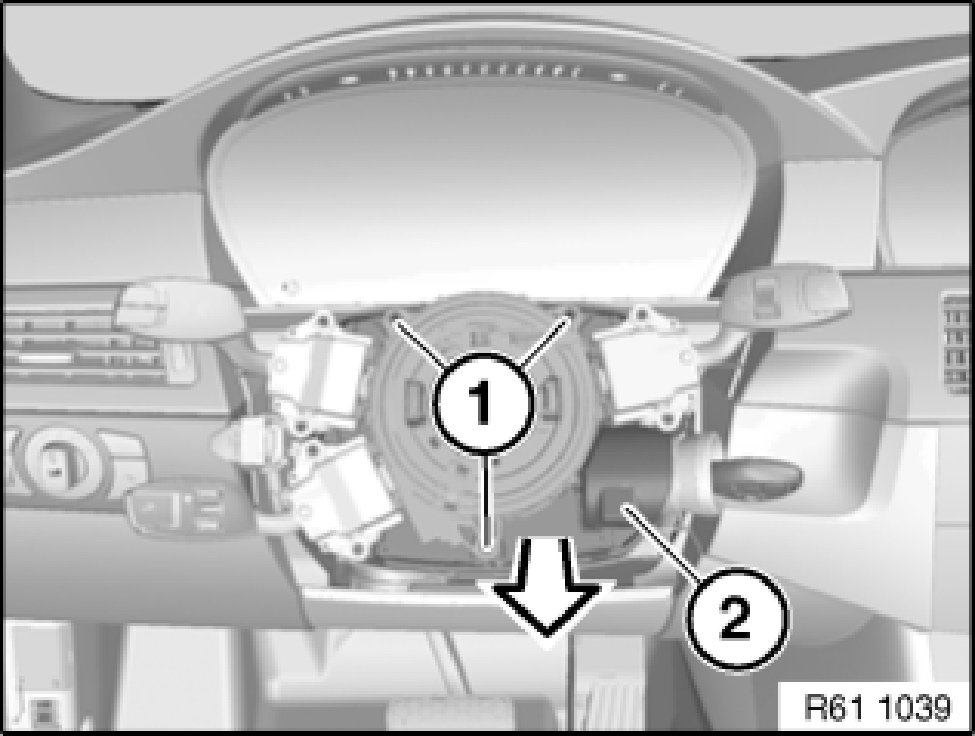

Release screws (1).
Pull back fixture for steering column switch (2) in direction of arrow.
Disconnect plug connections behind and remove fixture for steering column stalk (2).

Replacement:
- Remove turn indicator/headlight dipping switch
- Remove windshield wiper switch
- If necessary, remove cruise control switch

Replacement:
- Carry out programming/coding
- Vehicles without AFS:
- Carry out adjustment of steering angle sensor.
- Vehicles with AFS:
- Carry out AFS start-up/adjustment.
