Power-Steering Cooler

Power-Steering Cooler

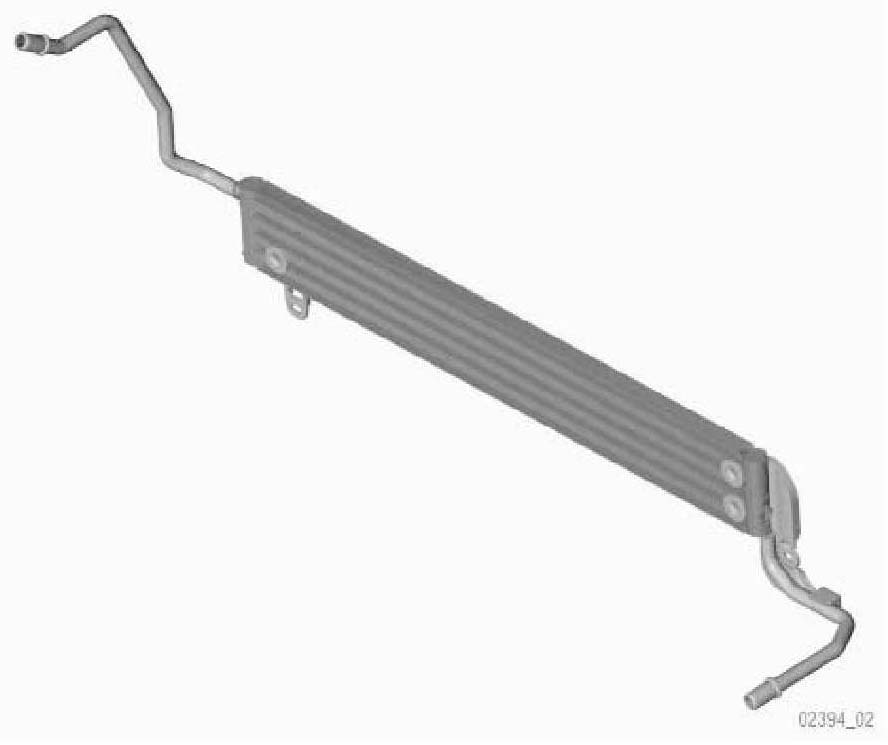

The power-steering cooler is located on the engine cooling module. This cooler consists of 4 tubes of rectangular cross-section and soldered fins. The cooler is needed due to the increased hydraulic power needed to deliver higher wheel angle speeds.
