Home >> BMW >> 2004 >> 530 (E60) L6-3.0L (M54) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Technical Data

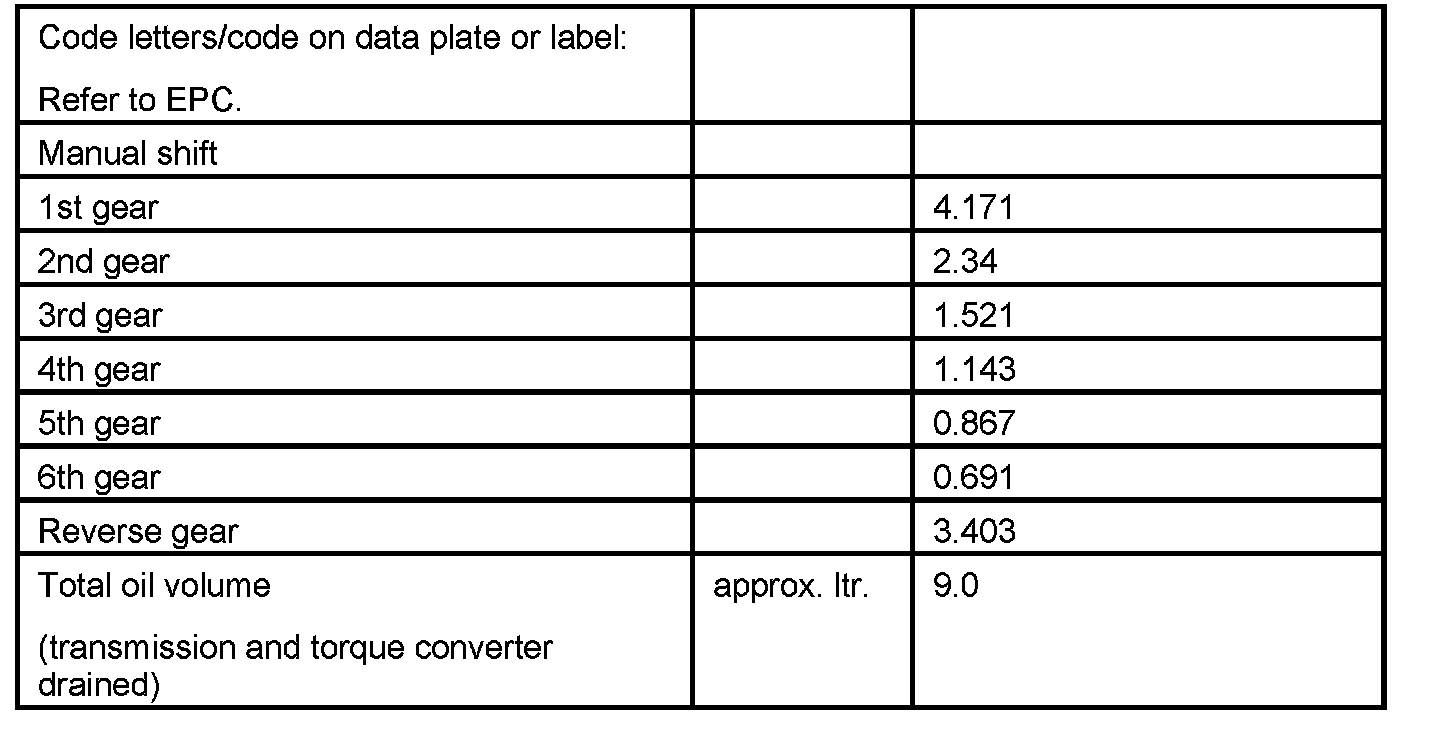

Technical Data

24 00 Transmission in general: E60 / E65 GA6HP19Z GA6HP26Z
