Home >> BMW >> 2004 >> 530 (E60) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13989 Adapter 612180, Storage Location P208 (5 Series)

X13989 Adapter 612180, Storage Location P208 (5 Series)

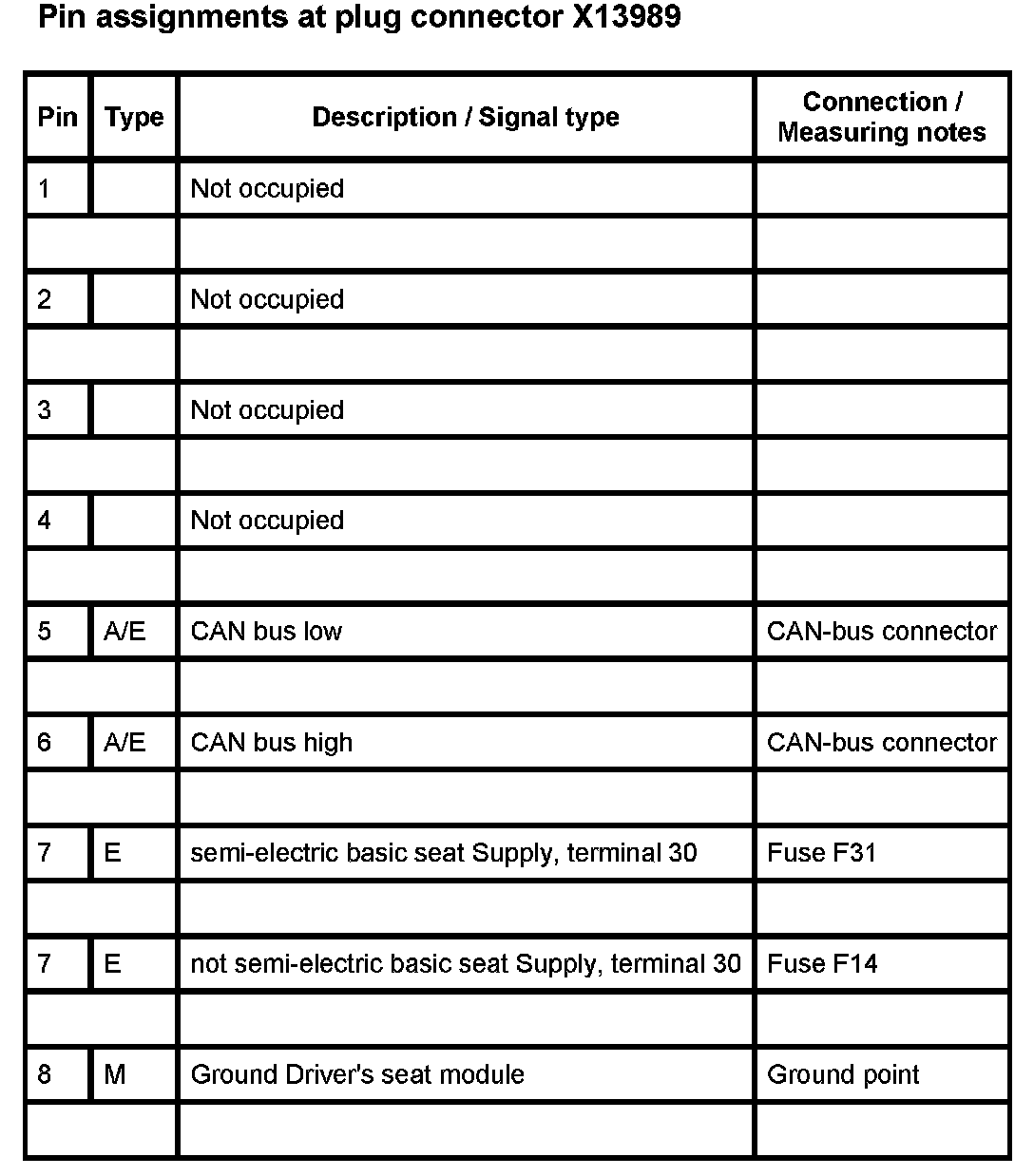

X13989:

X13989:
