Navigation System - CCC Retrofit Kit: Overview
SI B 84 10 04Phone, Navigation Systems
July 2004
Technical Service
This Service Information bulletin supersedes Advance S.I. B84 10 04 dated June 2004.
[NEW] designates changes to this revision
SUBJECT
CCC (Car Communication Computer) Navigation Retrofit Kit
MODEL
E60 (5 Series) with CCC pre-wiring (option 6UA).
[NEW] SITUATION
NOTE:
CCC retrofitting is only possible if the vehicle has option 6UA (Pre-wiring for CCC) installed.
NOTE:
If the customer requests that the Navigation retrofit be installed, they are not be charged more than $1,800.00 in total.
Warranty is to be charged for the Labor and the color specific cover, center dashboard trim panel
Please also refer to the Sales Bulletin.
[NEW] INFORMATION
Contents of the CCC Retrofit Kit.
PROCEDURE
Important:
Before doing the Installation, update the complete vehicle with CIP12.0 or a more recent CIP version.
1. Connect the vehicle to an approved BMW battery charger.
2. Using DISplus/GT1/SSS, with the diagnostic head connected to the vehicle, select Coding/Programming. Refer to SIB09 05 01 (Coding, Individualization and Programming) Procedure B for any necessary coding and programming. Note that CIP will automatically reprogram all programmable control units that do not have the latest software.
3. Disconnect the DISplus/GT1/SSS after the update is finished and no additional work has to be done.
4. Install the CCC retrofit parts, please refer to the Installation Instruction P/N 01 29 0 394 108 in ASAP on the CenterNet website.
5. Reconnect the vehicle battery.
6. Connect the vehicle to an approved BMW battery charger.
7. Using DISplus/GT1/SSS, with the diagnostic head connected to the vehicle, select Coding/Programming. Refer to SIB09 05 01 (Coding, Individualization and Programming) section "Retrofits".

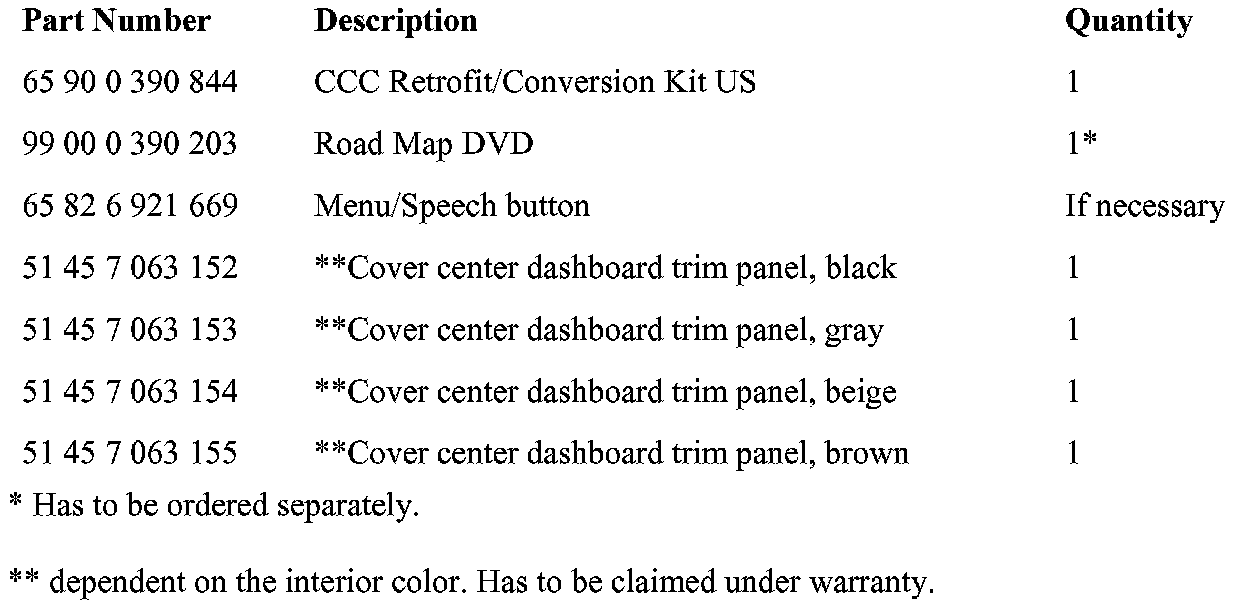

[NEW] PARTS INFORMATION

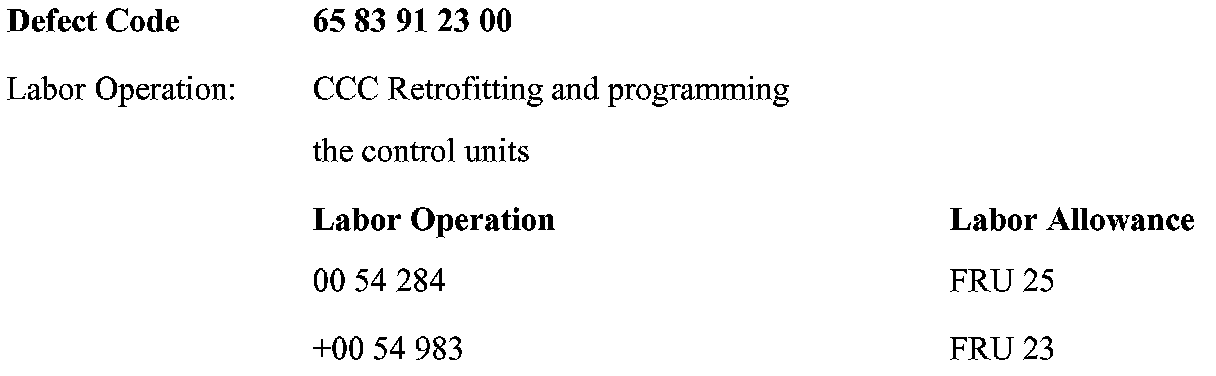

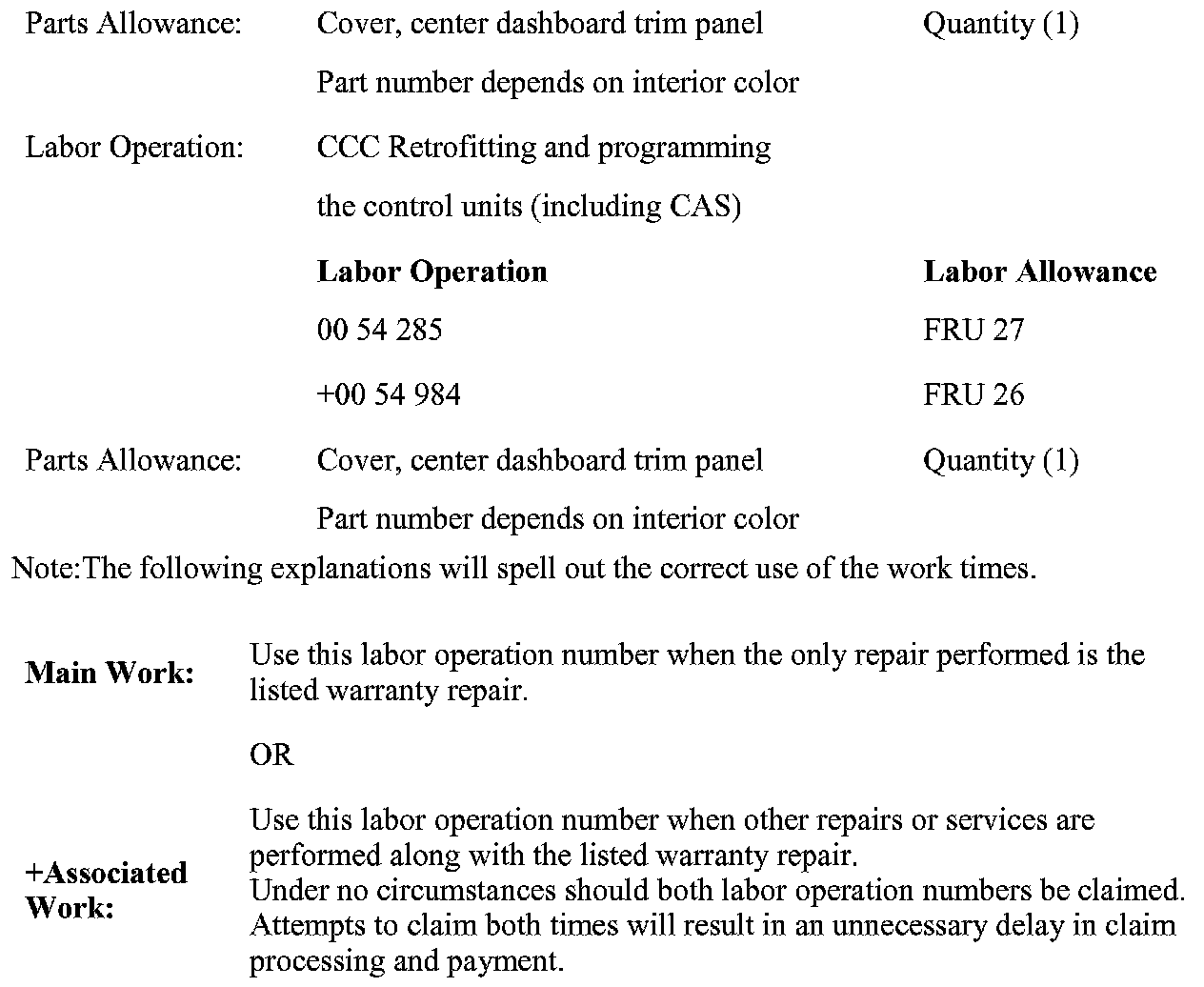

WARRANTY INFORMATION
Warranty claims can only be submitted until May 31, 2005
WARRANTY PART RETURN INFORMATION
A part tag and the credit note will advise you to return the cover, center dashboard trim panel.
We do not need this part but must receive the 6.5" control display and the M-ASK control module.
The M-ASK and the 6.5" control display were removed from the vehicle to permit installation of the NAV Retrofit Kit.
Please attach the part tag for the cover dashboard trim panel to the box containing the 6.5" control display and the M-ASK.

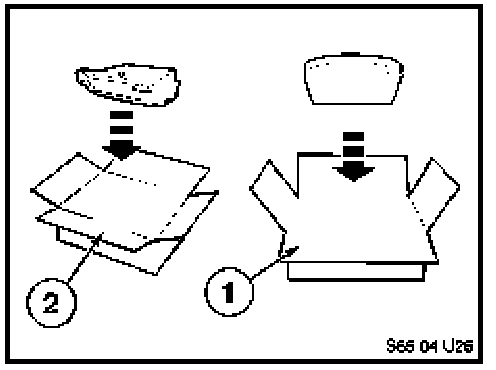

1. Place the removed 6.5" control display in the box in which the new 8.5" board monitor was supplied (1).
2. Place the removed M-ASK in the box in which the CCC was supplied (2).

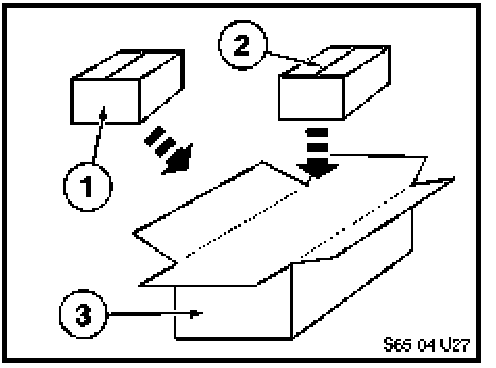

3. Place the box containing the removed 6.5" control display (1) and the box containing the removed M-ASK (2) in the large box in which the kit was supplied (3).
When requested by BMW NA, ship the removed components to BMW WPRC using the regular parts return procedure.
