Multi-Audio System Controller

Multi-Audio System Controller

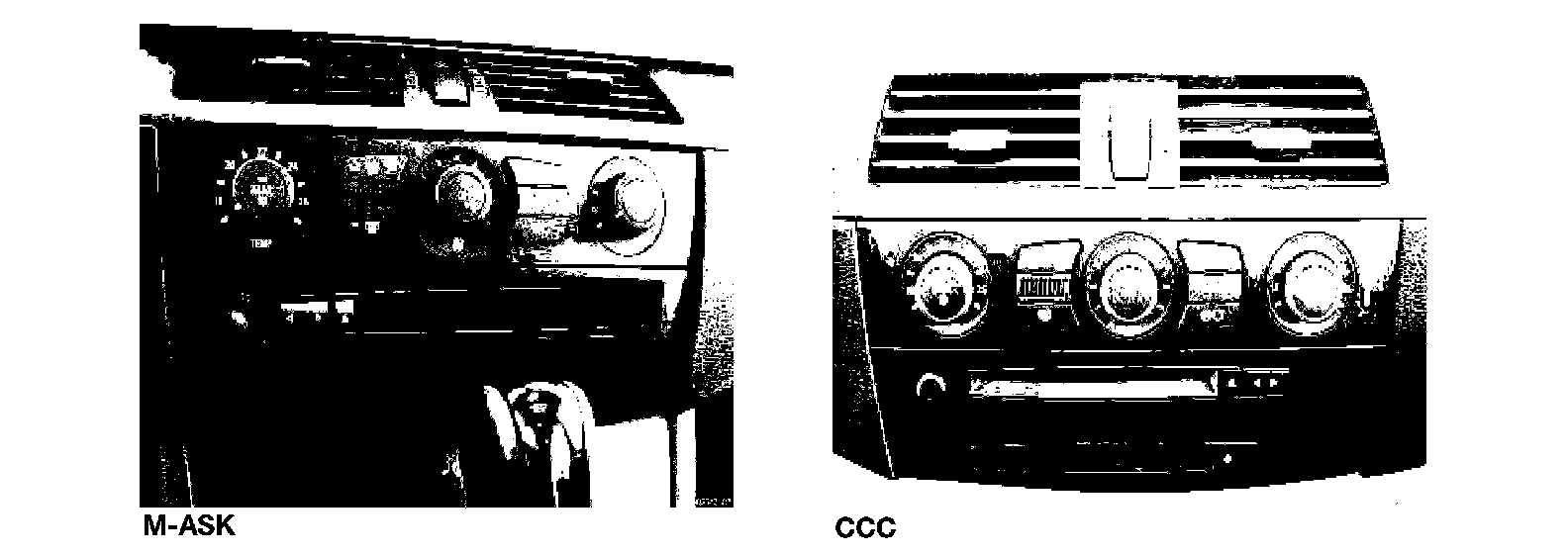

The multi-audio system controller M-ASK is the central control unit of the information and communications systems. The M-ASK combines up to four control units in one, used as the central control unit in the basic version.
The M-ASK combines the following control units in one housing:
^ ASK
^ Aerial amplifier/tuner
^ MOST CAN gateway, interface to control display
In the E65, these modules are installed in separate control units.
The following advantages are achieved by combining several control units in one component:
^ Fewer plug connections therefore fewer sources of fault
^ Improved overall quality
^ Less installation area required for control units
^ Weight saving of control units
^ Low closed-circuit current requirement
