Replacing One Ball Joint In the Semi-Trailing Arm (Semi-Trailing Arm Removed)

Replacing One Ball Joint In The Semi-Trailing Arm (Semi-Trailing Arm Removed)

Special tools required:

- 33 3 331
- 33 3 332
- 33 3 333
- 33 3 334

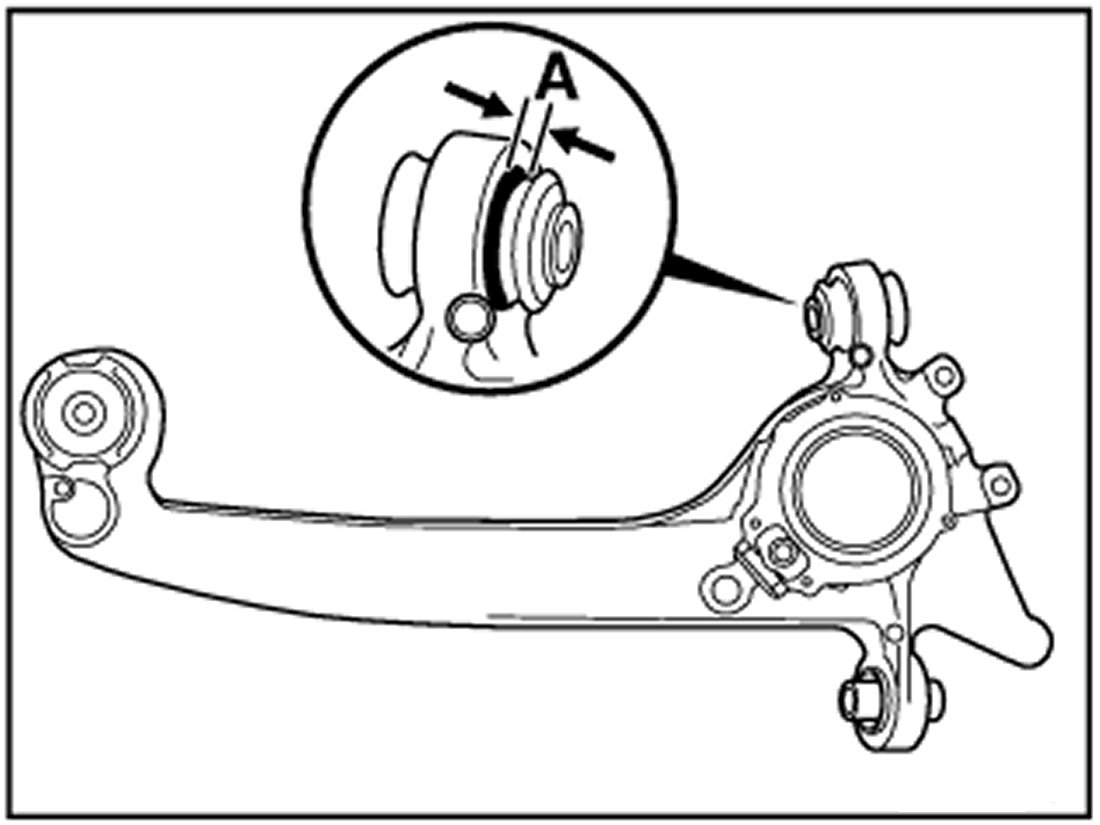

Measure and make a note of protrusion (A) of old ball joint.

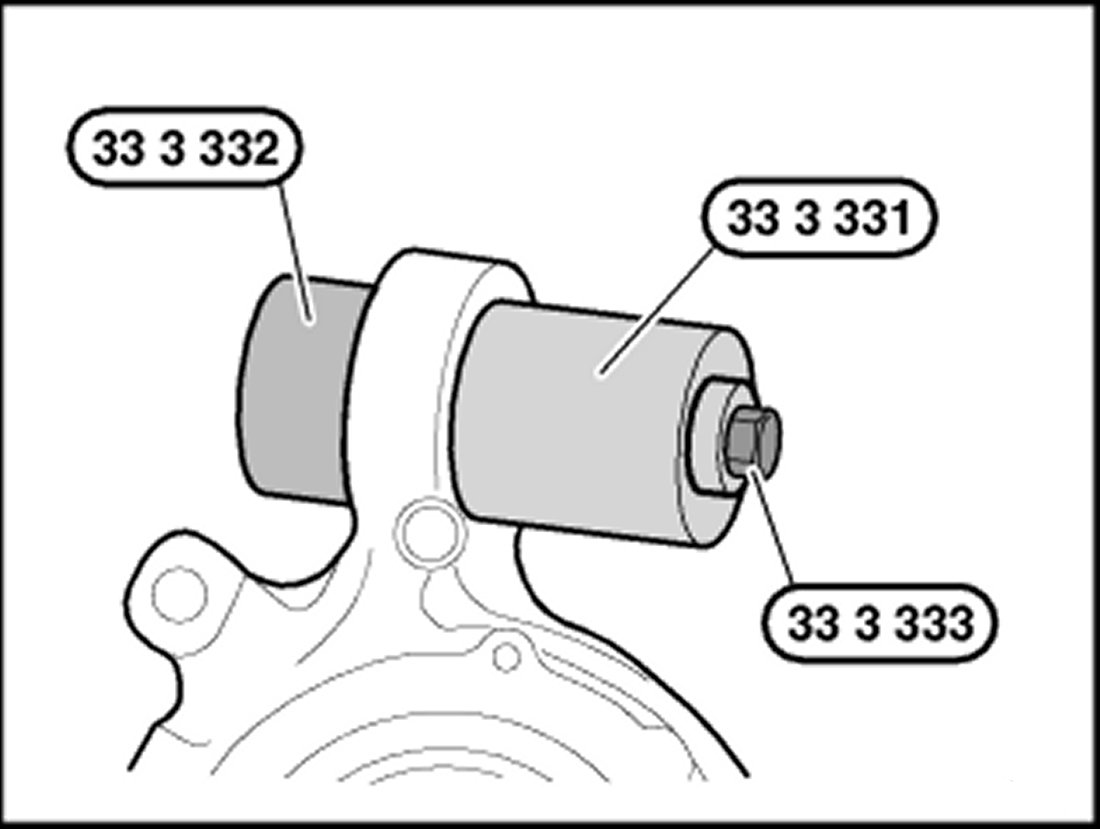

Pull out ball joint with special tools 33 3 331, 33 3 332 and 33 3 333.

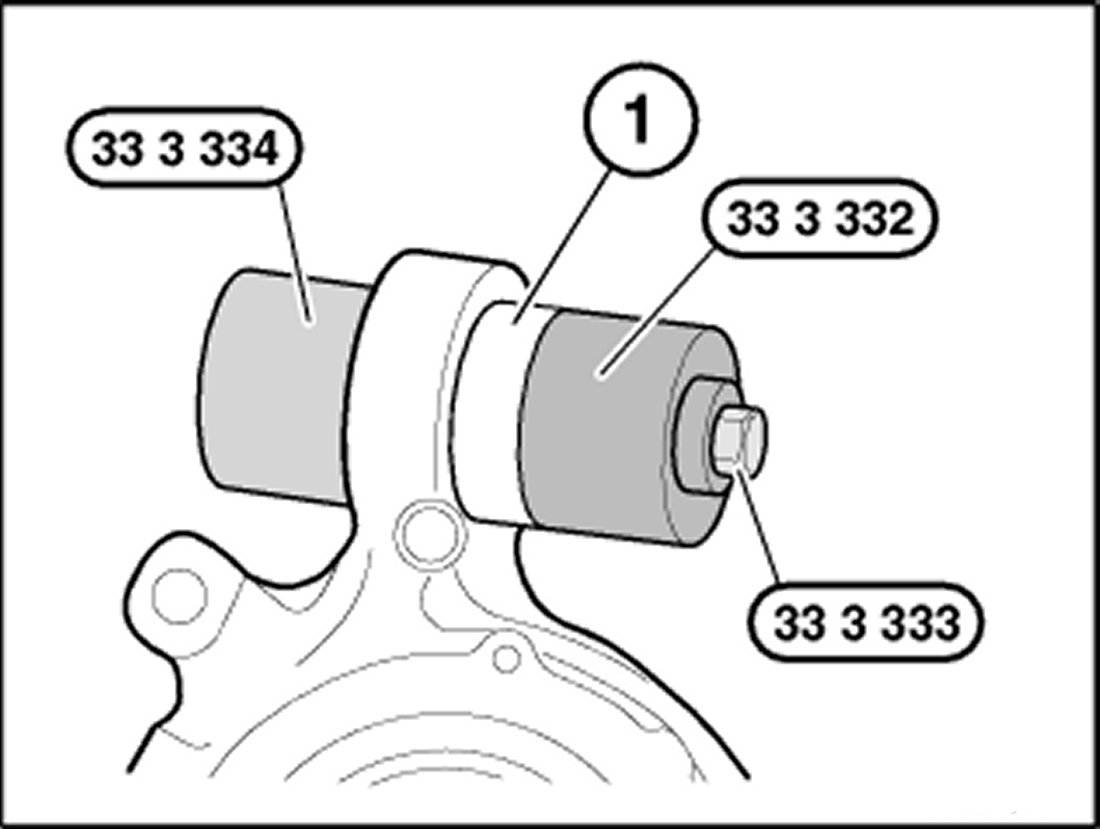

Keep trailing arm eye and ball joint (1) clean and free from oil and grease. Draw in new ball joint (1) with special tools 33 3 332, 33 3 333 and 33 3 334 to previously determined protrusion (A).

After Installation:

Perform chassis alignment check.
