Removing and Installing/Replacing Ball Joints For Control Arms (4WD)

Removing and Installing/Replacing Ball Joints for Control Arms (4WD)

Necessary preliminary tasks:

- Remove engine underguard, center.

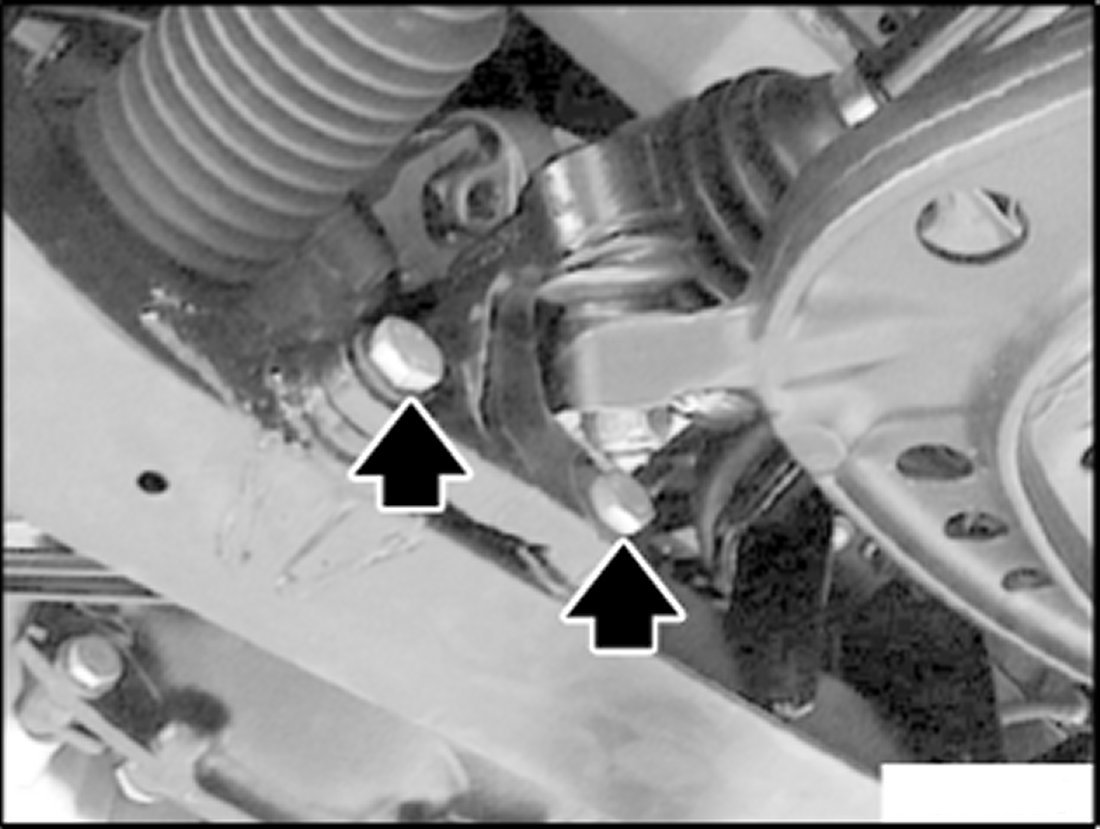

Unfasten screws.

Installation:
Ball joint for control arm to front axle carrier 77 Nm






Unfasten nut.

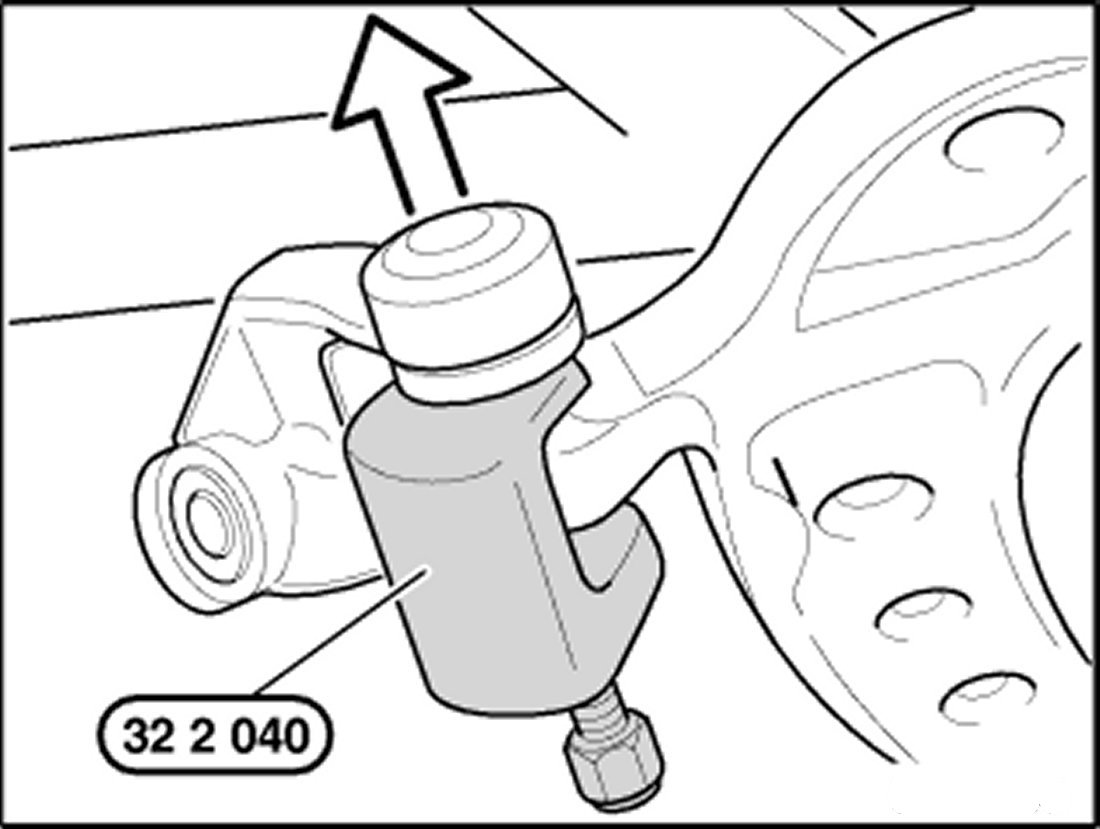

Force off ball joint with special tool 32 2 040

Installation:
Replace self-locking nut.
Bore and journal both free of grease.
Control arm to ball joint 80 Nm
