Power Steering Pump: Service and Repair

Replacing Vane Pump For Power Steering


Caution!
Make sure all parts are absolutely clean.
No dirt is allowed to enter the system.
Seal off pipe connections with plugs.

Recycling:
Observe country-specific waste-disposal regulations.
Draw hydraulic fluid out of tank -> do not reuse.

Installation:
Fill hydraulic system.
Remove engine underguard.
Remove drive belt.
Disconnect suction and pressure lines from pump.

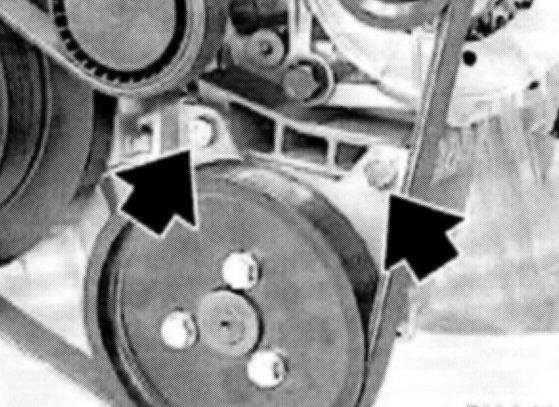

Unfasten screws.
Remove pump.
