Airbag Unit Before 01/2002

Replacing Airbag Unit


Warning!
Conform with safety precautions!
Incorrect handling can activate airbag and result in injury.
Disconnect battery and cover negative pole or terminal.





Unfasten both screws (Torx socket T 30).

Installation:
Do not pinch wires.
Airbag unit to steering wheel 8 Nm

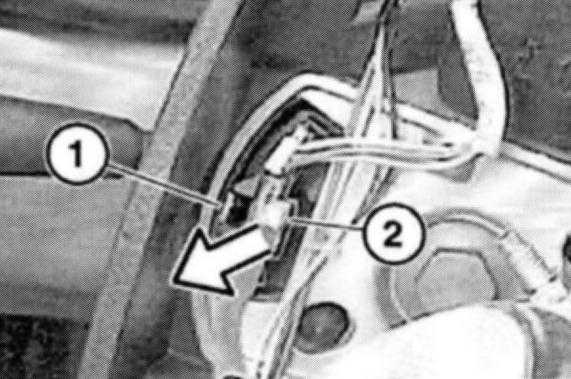

Press down lock (1) and disconnect plug (2). Remove airbag unit.

Caution!
Lay airbag unit to one side (in luggage compartment): padded side must always face upwards.
