Removing and Installing/Replacing Armrest on Rear Left or Right Side Trim Panel (Coupe)

51 43 060 Removing And Installing/Replacing Armrest On Rear Left Or Right Side Trim Panel (Coupe)

Remove rear side trim panel.

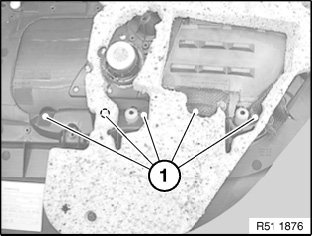

Release screws (1).

Installation:
The retaining strap for the airbag cover must be correctly screwed down.
4AZ Door trim panel to front door 1.1 Nm

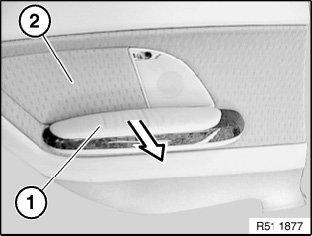

Pull armrest (1) off side trim panel (2).
